Mitsui Seiki - HT4ASE-MIL-MIT-1995-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mitsui Seiki HT4A Horizontal Machining center

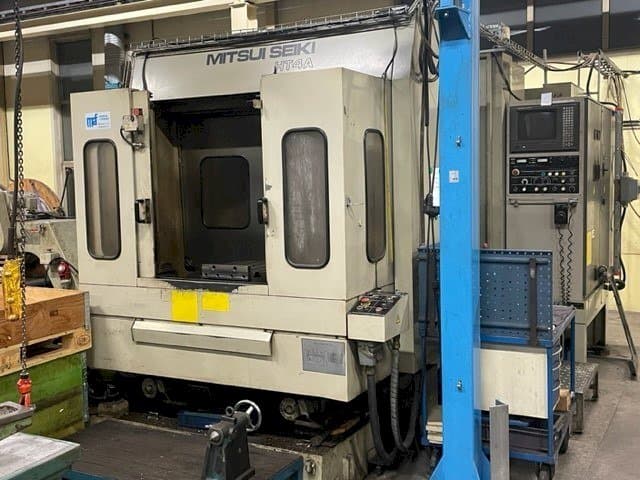

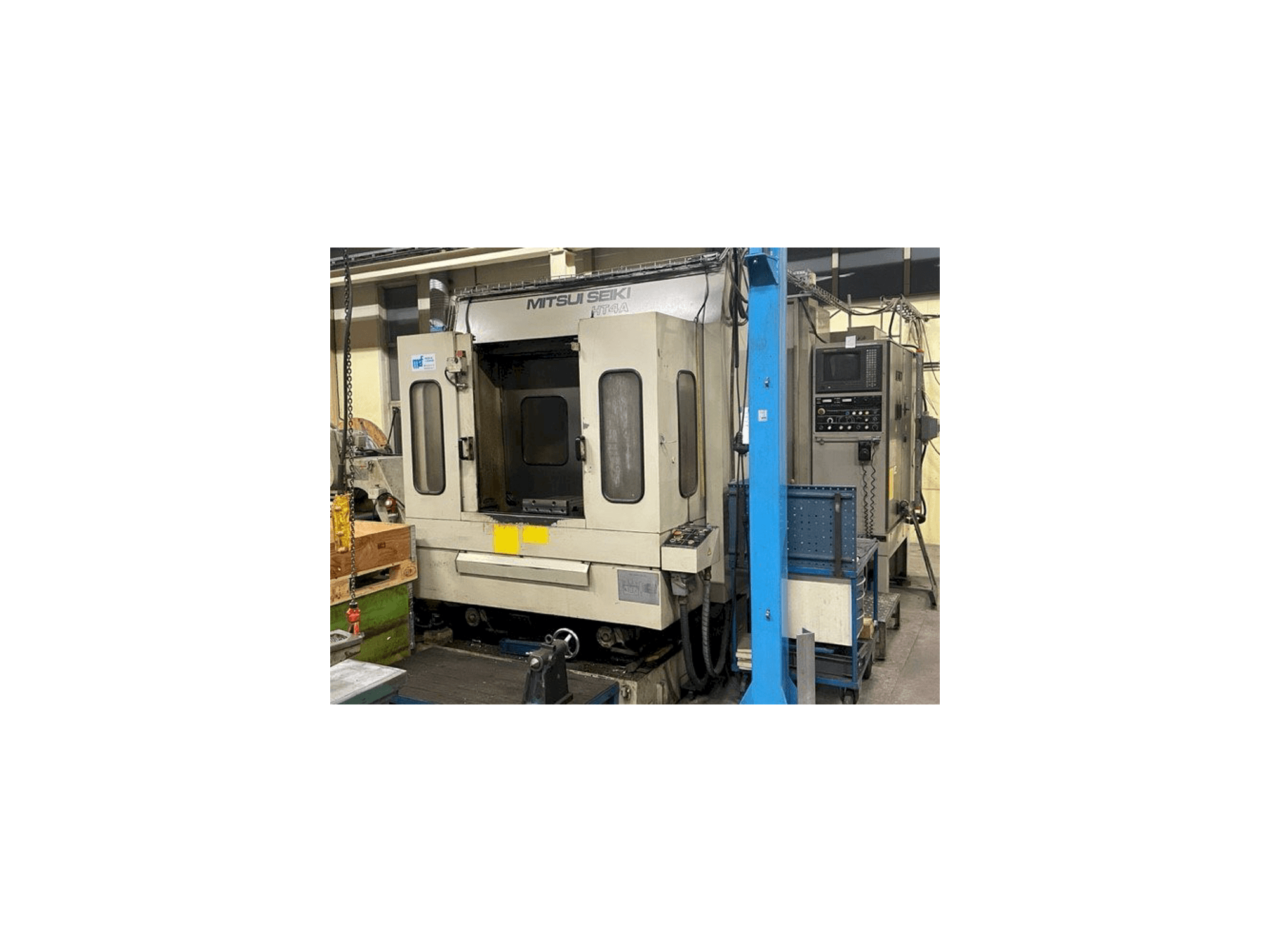

This Mitsui Seiki HT4A Horizontal Machining center was manufactured in the year 1995. It is equipped with a Faunc Series 15-M control unit and has 3 axis. The machine has a spindle speed of 6000 rpm.
Overview
- brand: Mitsui Seiki
- year: 1995
- MODEL: HT4A
- application type: Milling
- Location: Sweden
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Mitsui Seiki HT4A
Control Unit
- Brand: Fanuc
- Model: Series 15-M
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 18,5kW
- Number of axis: 3
Movement
- X-AXIS Movement: 720 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 550 mm
Table
- Outer length: 500 mm
- Outer width: 500 mm
Tools
- Slots in storage: 90
- Type of tool holder: BT50
Additional Information
- Technical Machine Benefits:
- - Nc table
- - Number off pallets: 2+1 (2 in machine, 1 extra pallet)
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
