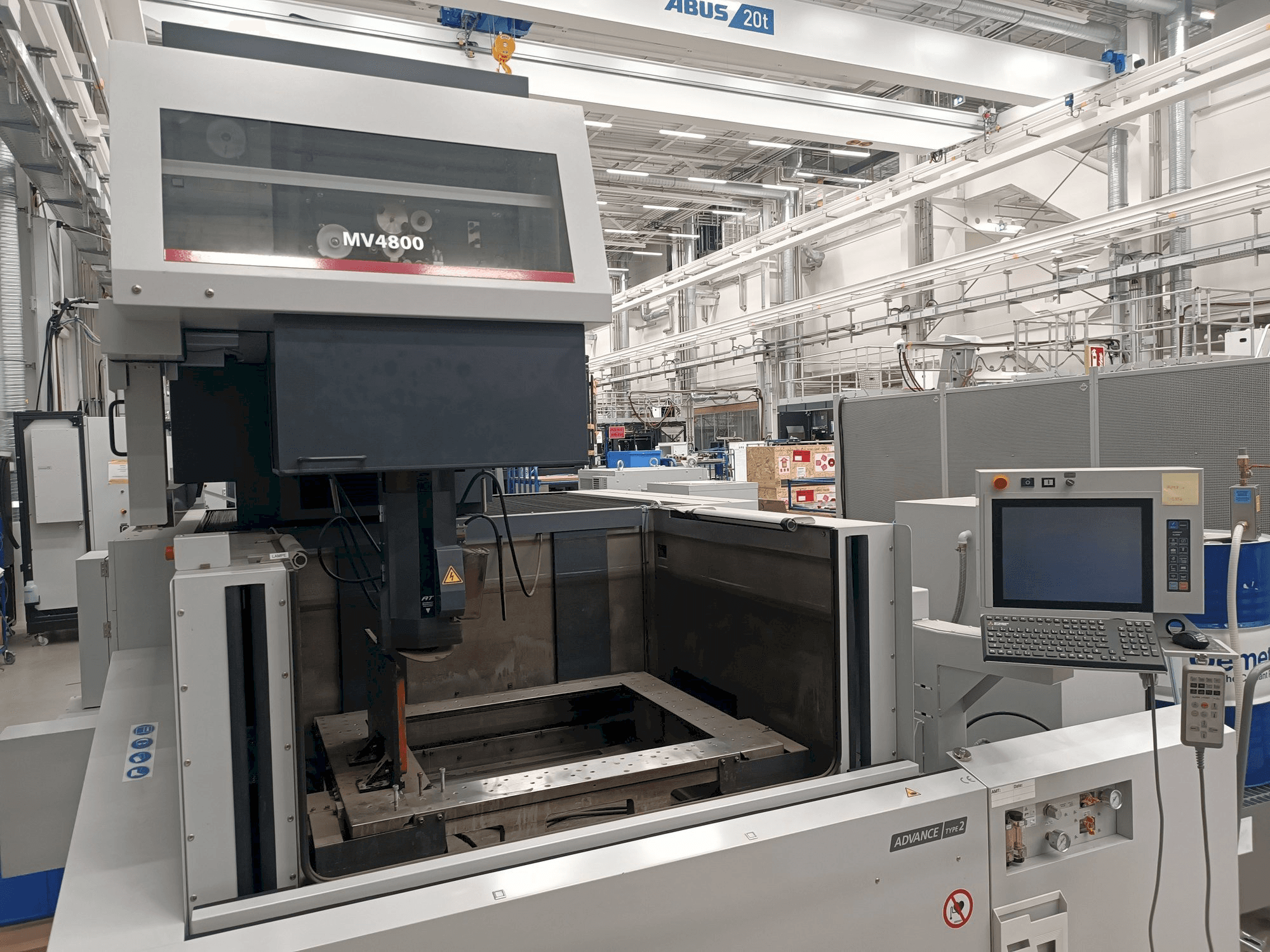

Mitsubishi MV4800 Erosion machine

Show in original language

This Mitsubishi MV4800 Erosion machine was manufactured in the year 2017 in Japan and has 13166 production hours. The machine has a Wire diameter of 0.15 ~ 0.3 mm.

Overview

brand: Mitsubishi
year: 2017
MODEL: MV4800
production hours: 13166
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold

Technical Information - Mitsubishi MV4800

General Data

Measurements width: 3130 mm
Measurements depth: 3475 mm
Measurements height: 2815 mm
Machine weight: 5700 kg

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 510 mm
U/V Movement: 200 (+/-100) mm

Workpiece

Workpiece drm over bed: 1250 mm
Workpiece drm over support: 1020 mm
Workpiece drm: 505 mm
Workpiece weight: 3000 kg

Table

Outer length: 1080 mm
Outer width: 780 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fluid system weight in kg: 450
- - Wire diameter: 0. 15 ~ 0. 3
- - Automatic wire threader / wire chopper
- - Tank capacity in l: 1480
- - Filter particle size in µm / filter elements: 3/2

Extra information

- Wire diameter: 0.15 ~ 0.3 Fluid System Weight in kg: 450 Tubular Shaft Drives with linear scales (X / Y): Yes Control M800 with 19” full-touch monitor: Yes Hand pilot with configurable LCD monitor: Yes Vertical front door Automatic Digital AE II generator: Yes Ethernet/DNC/FTP Yes Preparation for automation: Optional McAfee AntiVirus embedded: Optional Production data output: Optional 2D CamMagic on-board: Yes Corehold technology: Optional Job scheduler: Optional Sleep mode: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
