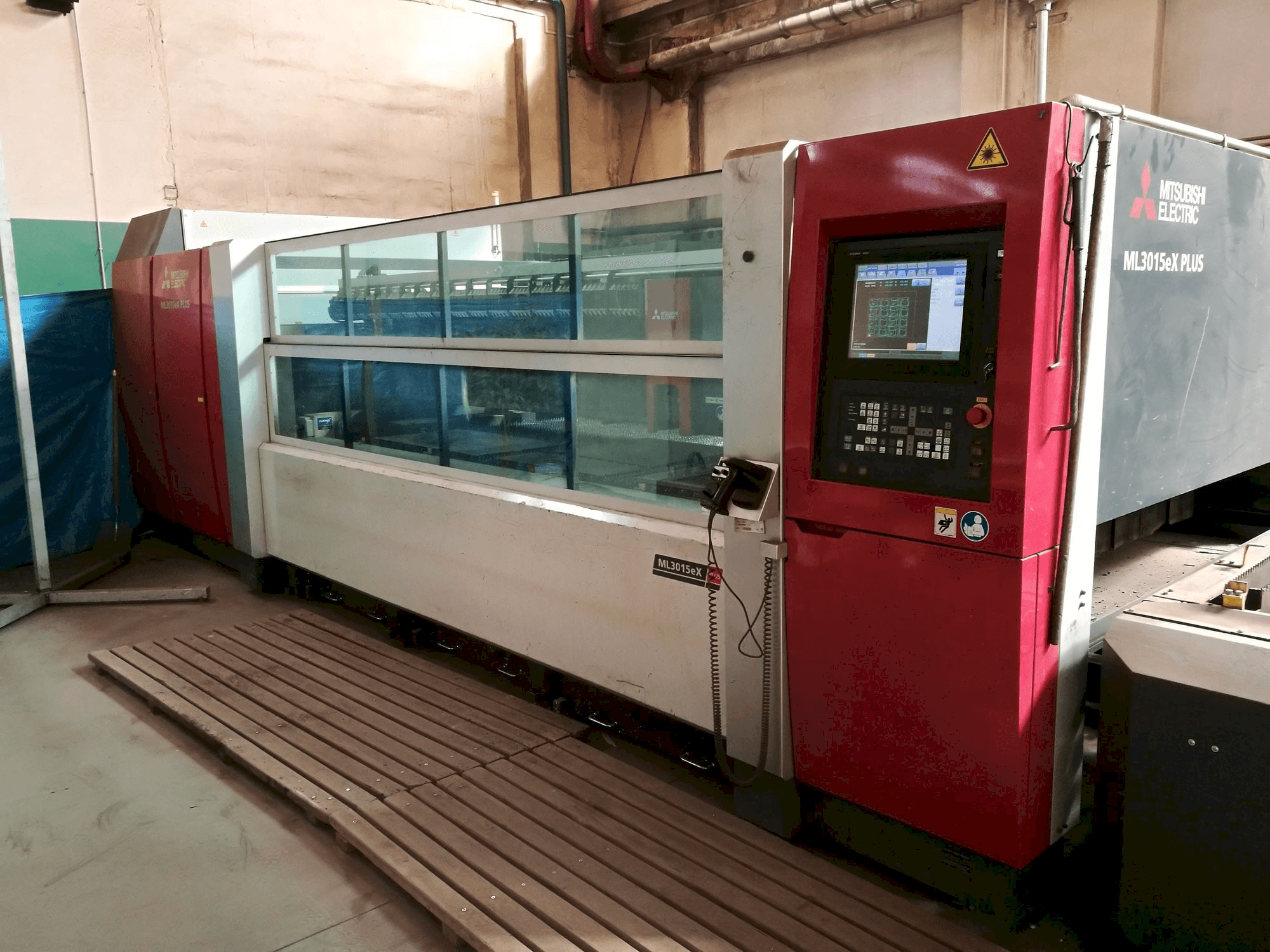

Front view of Mitsubishi ML3015eX(S2)-45CF-R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitsubishi ML3015eX(S2)-45CF-R

Photo Gallery

Mitsubishi - ML3015eX(S2)-45CF-RPL-LAS-MIT-2015-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Mitsubishi ML3015eX(S2)-45CF-R Laser Cutting Machine

Show in original language

This Mitsubishi ML3015eX(S2)-45CF-R Laser Cutting Machine was manufactured in 2015 in Japan. It counts with a production time of only 2958 working hours. It is controlled through a Mitsubishi M700 control unit. During the past, this machine has mainly worked with steel up to 25 mm of thickness. It includes a bar code reader device with software, a 4th axis for tubes and profiles, and a Lantek software offline for plates and tubes.

Overview

brand: Mitsubishi
year: 2015
MODEL: ML3015eX(S2)-45CF-R
production hours: 2958
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Mitsubishi ML3015eX(S2)-45CF-R

General Data

Measurements width: 11000 mm
Measurements depth: 4200 mm
Measurements height: 2955 mm
Machine weight: 10800 kg

Control Unit

Model: M700
Brand: MITSUBISHI

Movement

X-AXIS Movement: 3100 mm
Y-AXIS Movement: 1565 mm
Z-AXIS Movement: 150 mm

Workpiece

Workpiece x: 3050 mm
Workpiece y: 1525 mm
Workpiece z: 880 mm
Workpiece weight: 950 kg

Max Material thickness

Steel: 25 mm

Media

Main electronic connection: 3x380V 50/60Hz
Power consumption: 69 kVA
Internal cooling: Yes

Additional equipment

- 4th axis for tubes and profiles
- Lantek software offline for plates and tubes
- Bar code reader device with software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
