Mitsubishi M65J Erosion Machine

Show in original language

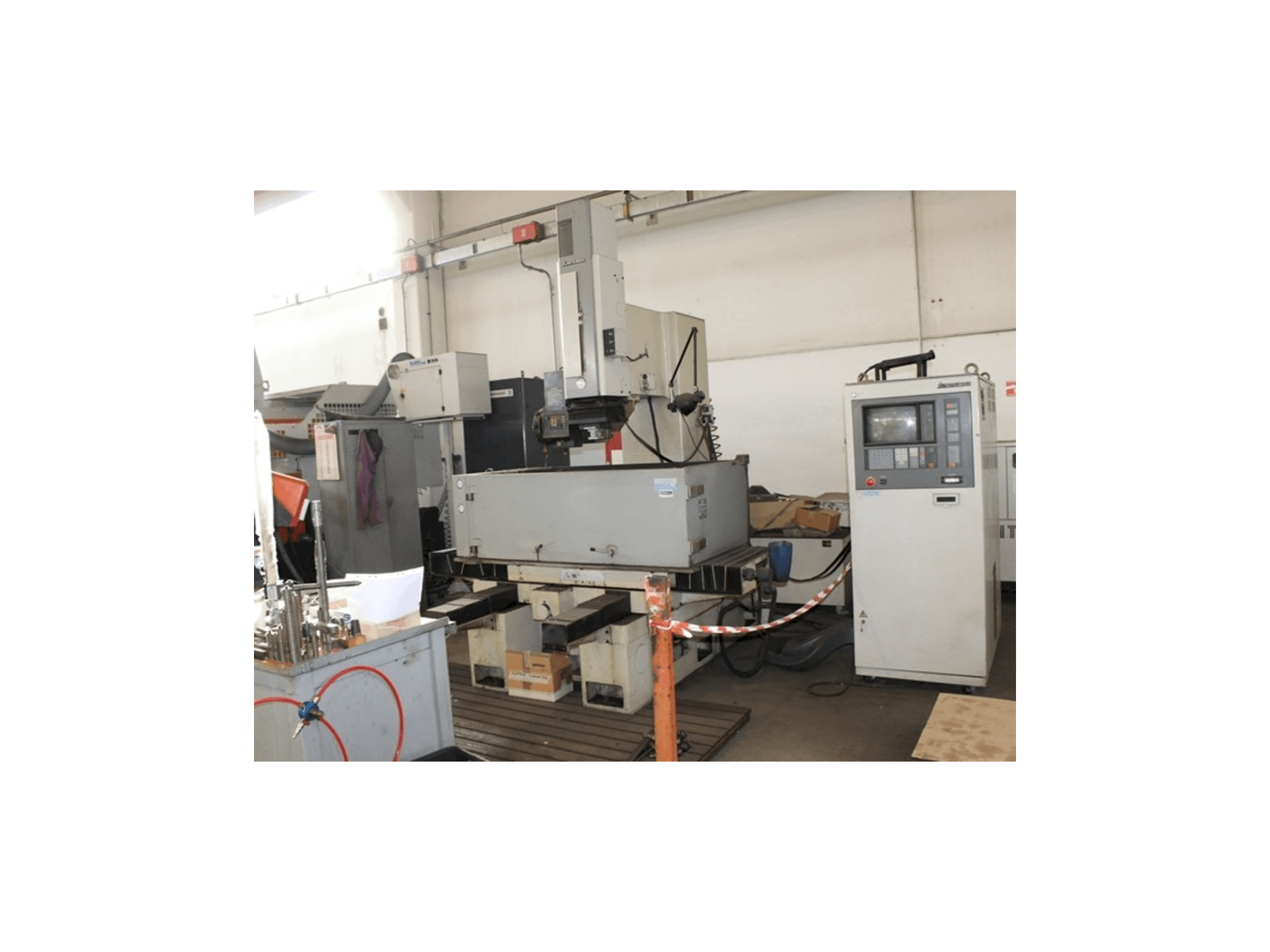

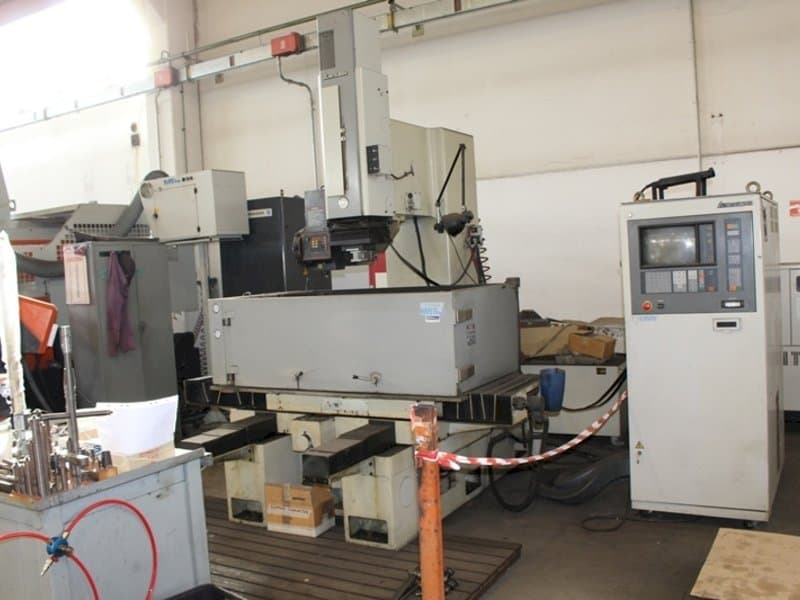

This Mitsubishi M65J Erosion Machine was manufactured in the year 1992. Equipped with a Mitsubishi control unit. This machine includes a table size of 1000 x 600 mm that can work with a maximum workpiece weight 1500 kg.

Overview

brand: Mitsubishi
year: 1992
MODEL: M65J
application type: EDM
Location: Italy
machine type: Wire EDM Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Mitsubishi M65J

General Data

Measurements width: 2240 mm
Measurements depth: 2280 mm
Measurements height: 2745 mm
Machine weight: 5000 kg

Control Unit

Brand: MITSUBISHI

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 1000 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - External tank 1400x800x500 mm
- - Int. 1300x750x410 mm
- - Tank capacity lt 720
- - Working piece size mm. 1250x500x310
- - Max size electrode mm. 300x250
- - Min-max light. Table-head mm. 250x600
- - Max weight electrode kg. 200

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
