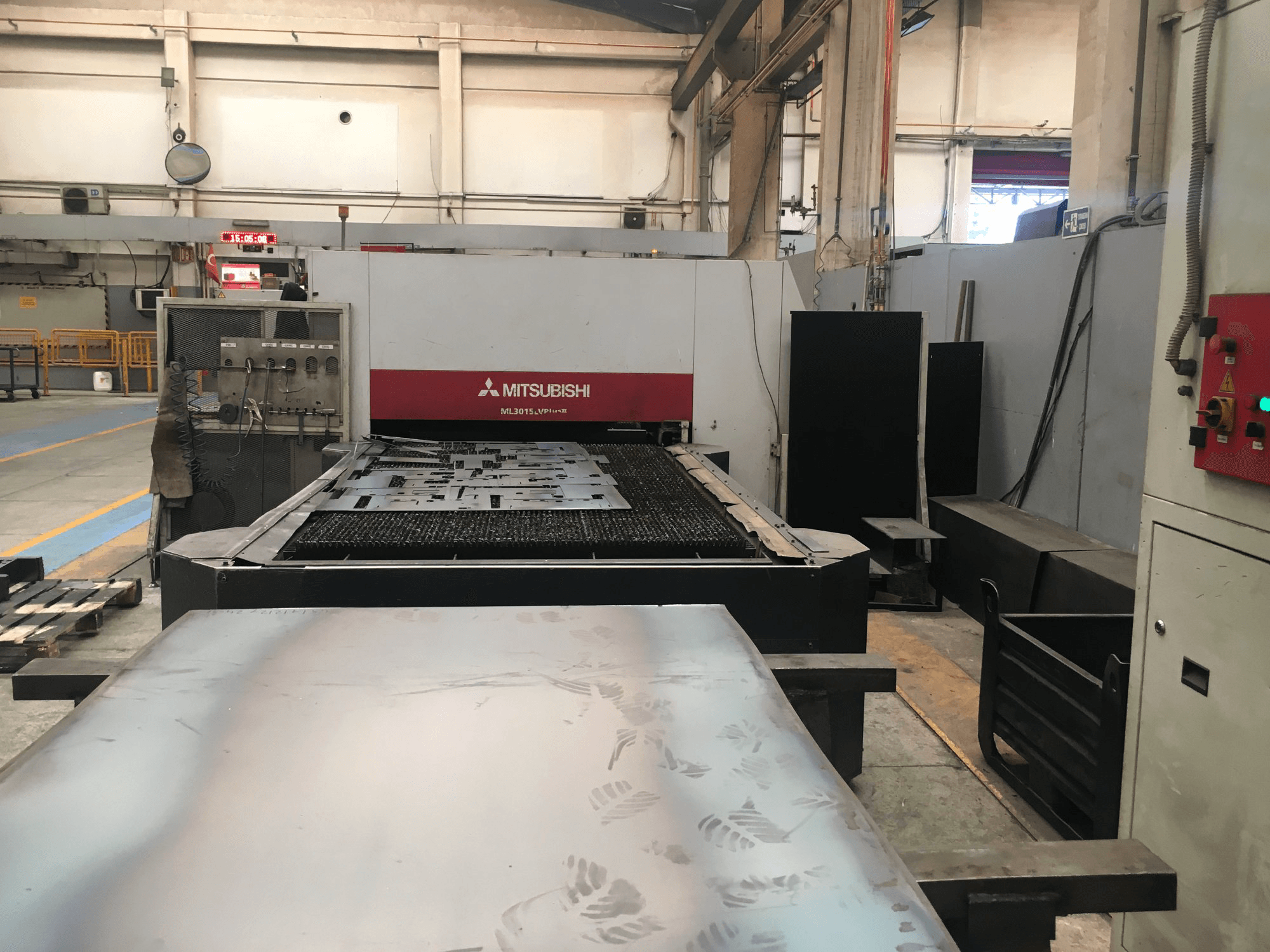

Front view of Mitsubishi Electric ML3015LV PLUS II Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitsubishi Electric ML3015LV PLUS II

Photo Gallery

Mitsubishi Electric - ML3015LV PLUS IITR-LAS-MIT-2011-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Mitsubishi Electric ML3015LV PLUS II Laser Cutting Machine

Show in original language

This Mitsubishi Electric ML3015LV PLUS II Laser Cutting Machine was manufactured in 2011 in Japan and has a working record of 23884 production hours. Equipped with a LC20BP2 Control unit by Mitsubishi, this 4.5 kW Laser Cutter has mainly worked with carbon steel sheets with 4-5 mm of thickness. This model consumes less CO2 than other machines of its kind due to the innovative cross-flow laser head and its air-proof resonator. The dual pallet system changes workpieces within 25 seconds. A chiller and a dust collector are included in the delivery.

Overview

brand: Mitsubishi Electric
year: 2011
MODEL: ML3015LV PLUS II
production hours: 23884
application type: Cutting
Location: Turkey
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Mitsubishi Electric ML3015LV PLUS II

General Data

Measurements width: 4650 mm
Measurements depth: 10600 mm
Measurements height: 2300 mm
Machine weight: 12800 kg

Control Unit

Model: LC20BP2
Brand: MITSUBISHI

Main drive

Laserpower: 4.5 kW
Laser type: CO2
Laser brand: Mitsubishi Electric

Movement

X-AXIS Movement: 3100 mm
Y-AXIS Movement: 1565 mm
Z-AXIS Movement: 150 mm

Workpiece

Workpiece x: 3050 mm
Workpiece z: 1525 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 18 mm

Media

Main electronic connection: 200 V

Additional equipment

- Chiller
- Dust Collector
- UPS Power Supply (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
