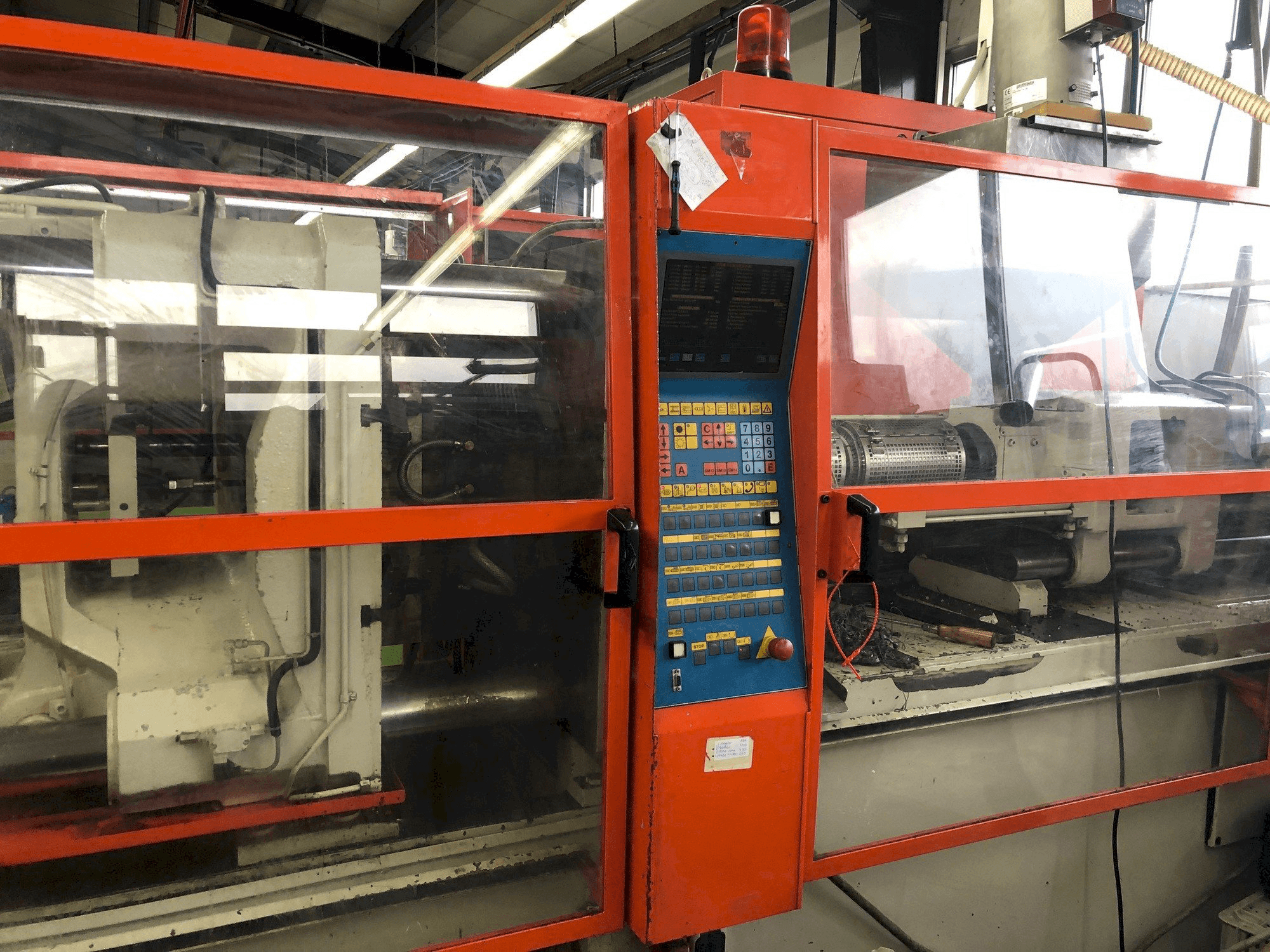

MIR RMP 200 Injection Moulding Machine

Show in original language

This MIR RMP 200 Injection Moulding Machine was manufactured in Italy in 2001. This machine is capable of performing with a clamping force of 1962 kN. It presents a well maintained status, as in 2015 its cylinder was revised. Furthermore, in 2017 its motor was overhauled.

Overview

brand: MIR
year: 2001
MODEL: RMP 200
production hours: 33911
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - MIR RMP 200

Control Unit

CNC main language: German
CNC language customizable: Yes

Injection Unit

Screw diameter: 50 mm
Shot weight: 445 gr
Stroke volume: 510 cm³
Injection pressure: 2130 bar
Plasticizing rate max.: 125 kg/h
Screw speed: 280 1/min
Heating capacity: 12 kW

Clamping unit

Clamping force: 1962 kN
Opening stroke: 130 kN
Max open daylight: 1220 mm
Distance between bars: 540 x 540 mm
Mould height min: 190 mm
Mould height max: 560 mm
Size of mold platens: 378 mm
Ejector force for / back: 140 kg/ cm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
