MILLUTENSIL MIL 203 stamping machine

Show in original language

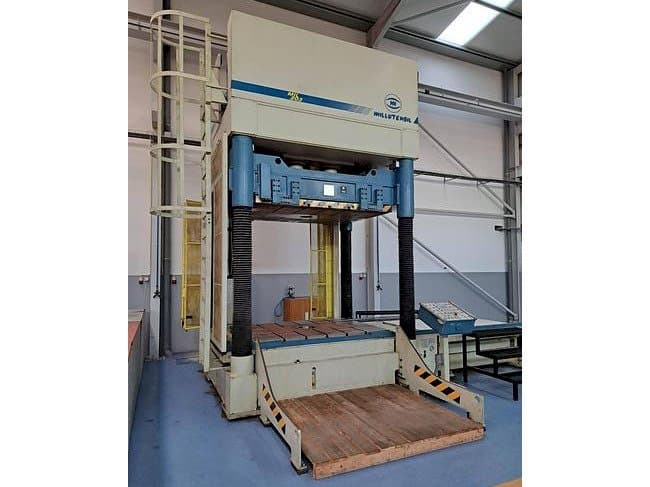

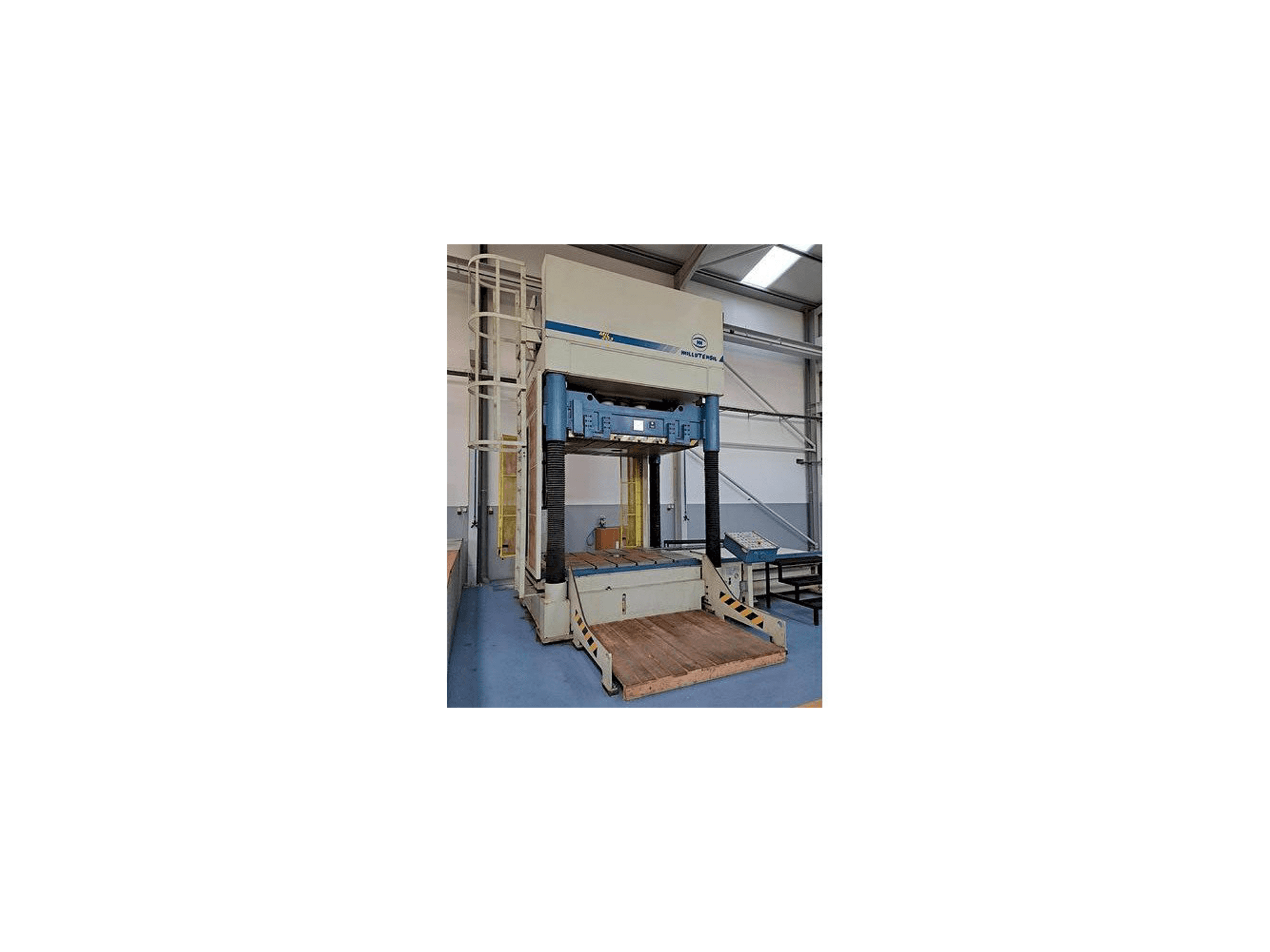

This MILLUTENSIL MIL 203 stamping machine was made in the year 2002 in Italy. The machine has a clamping force of 1500 kN and a max. ejection force of 100 kN.

Overview

brand: MILLUTENSIL
year: 2002
MODEL: Mil 203
application type: Other Sheet Metal Machinery
Location: Portugal
machine type: Stamping Machine
availability: Sold

Technical Information - MILLUTENSIL Mil 203

General Data

Machine weight: 28000 kg

Clamping unit

Clamping force: 1500 KN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Platens dimension: 2000 x 1500 mm
- - Max. Opening force: 350 kn
- - Max. Load capacity on lower platen: 30. 000 kg
- - Max load capacity on upper platen: 15. 000 kg
- - Max ejection force: 100 kn
- - Ejector stroke: 240 mm
- - Motors power: 11 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
