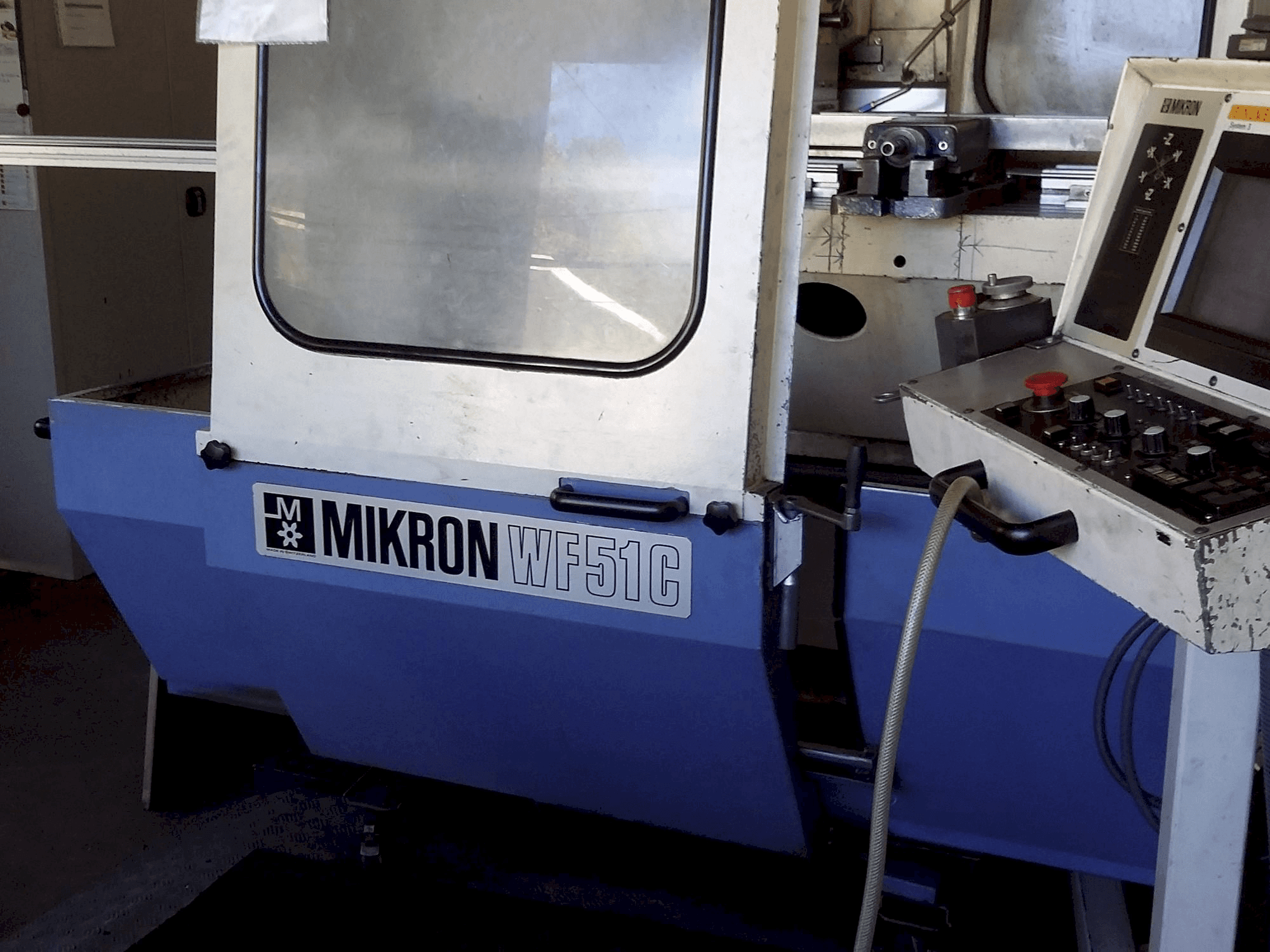

MIKRON WF51C/3M-4 Milling Machine

Show in original language

This MIKRON WF51C/3M-4 Milling Machine was manufactured in 1987 in Germany. It is controlled via a SIEMENS SINUMERIK System 3 control unit. This model counts with a spindle speed up to 3150 rpm. It includes a program memory expansion via external computer, a double milling head, and a wiring diagram.

Overview

brand: MIKRON
year: 1987
MODEL: WF51C/3M-4
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - MIKRON WF51C/3M-4

General Data

Measurements width: 1980 mm
Measurements depth: 2541 mm
Measurements height: 2124 mm
Machine weight: 3100 kg

Control Unit

Model: SINUMERIK System 3
Brand: SIEMENS

Main drive

Spindle speed range: 31,5 - 3150 1/MIN
Spindle motor power: 6,0 - 8,0 kW

Movement

X-AXIS Rapid traverse: 6000 mm/min
Y-AXIS Rapid traverse: 6000 mm/min
Z-AXIS Rapid traverse: 4000 mm/min

Tools

Type of tool holder: ISO 40/M16 with feed groove

Media

Main electronic connection: 380 V
Power consumption: 14 kW

Additional equipment

- Wiring diagram
- Program memory expansion via external computer
- Operating instructions machine
- Operating instructions control
- Programming instructions

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Double milling head
- - Number of working spindle speeds 21
- - Vertical sleeve travel 110 mm
- - Automatic longitudinal movement of the clamping table (x-axis) 80 mm
- - Transverse movement of the base slide automatic (y-axis) 500 mm
- - Automatic vertical movement of the clamping table (z-axis) 460 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
