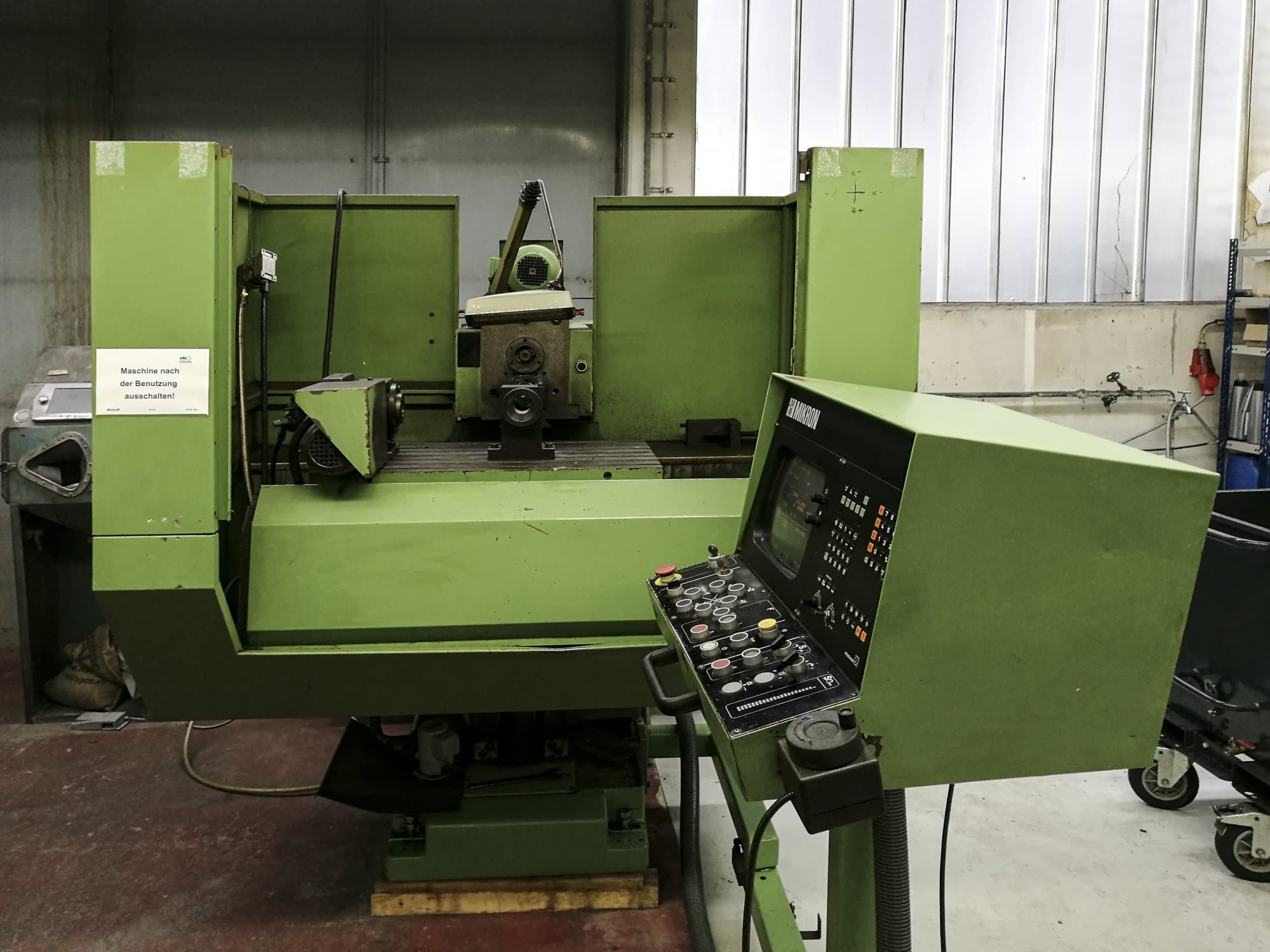

MIKRON WF-31 D Milling Machine

Show in original language

This MIKRON WF-31 D Milling Machine was manufactured in 1991 in Switzerland and is controlled via a HEIDENHAIN TNC 355 Control unit. During the past, this machine has mainly worked over steel workpieces up to 20 mm of thickness producing tool holders for the automotive industry.

Overview

brand: MIKRON
year: 1991
MODEL: WF-31 D
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON WF-31 D

General Data

Measurements width: 2600 mm
Measurements depth: 1800 mm
Measurements height: 2200 mm
Machine weight: 2600 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC355

Main drive

Spindle speed range: 40-4000 1/min

Movement

X-AXIS Movement: 560 mm
X-AXIS Working Feed: 2-3000 mm/min
X-AXIS Rapid traverse: 6 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Working Feed: 2-3000 mm/min
Y-AXIS Rapid traverse: 6 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 2-3000 mm/min
Z-AXIS Rapid traverse: 5 m/min

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 900 mm
Outer width: 530 mm
TSlots size: 14-H7
Number of tslots: 12
Distance between: 65 mm

Media

Power consumption: 9 kVA
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
