MIKRON WF 21 C Milling Machine

Show in original language

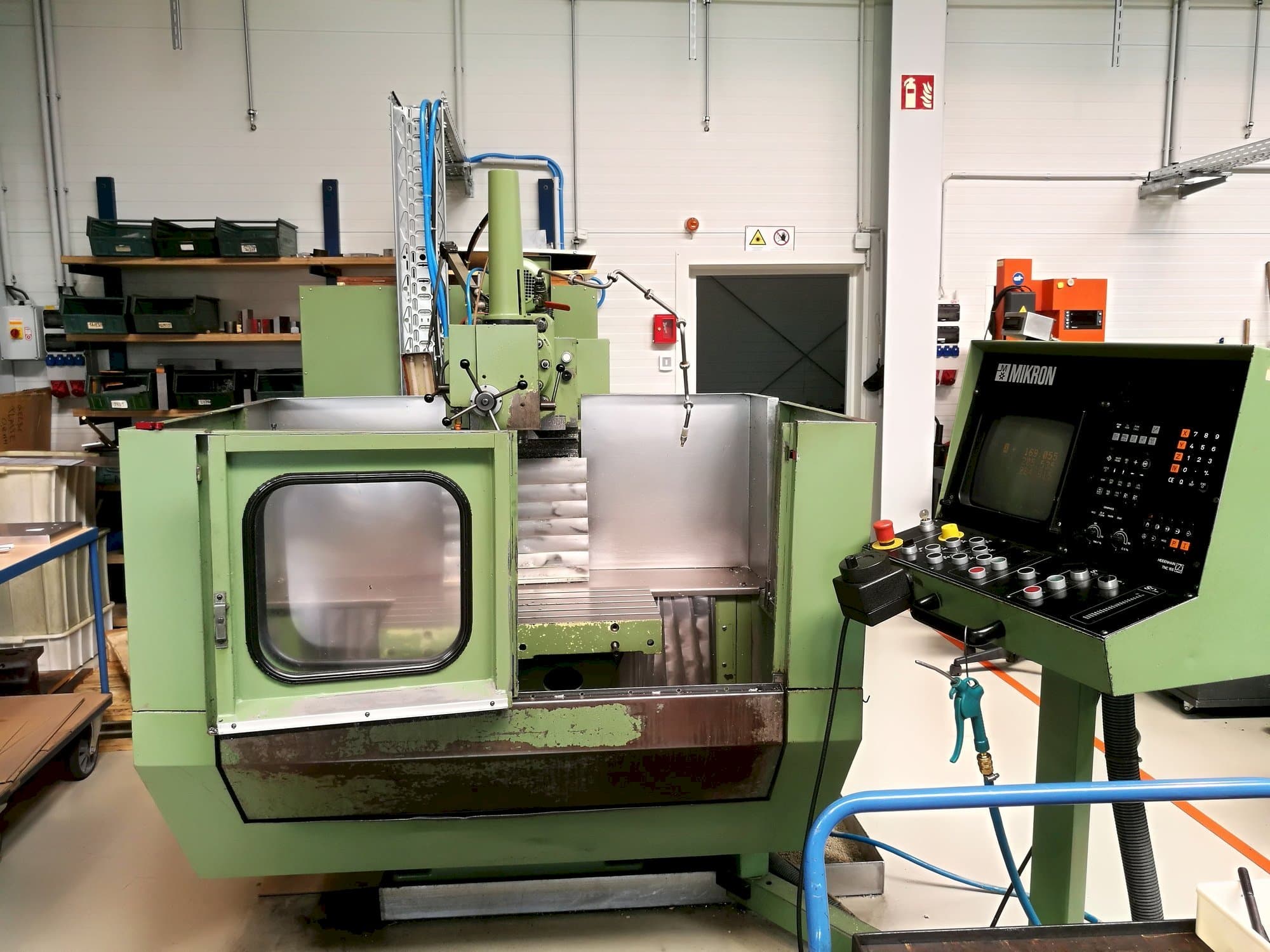

This MIKRON WF 21 C Milling Machine was made in 1984 in Germany. It has a production history of approximately 45000 working hours. It is operated through a Heidenhain TNC151 control unit. This model counts with a spindle speed up to 4000 rpm. During the past, has mainly worked with steel.

Overview

brand: MIKRON
year: 1984
MODEL: WF 21 C
production hours: 45000
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON WF 21 C

General Data

Measurements width: 3000 mm
Measurements depth: 4000 mm
Measurements height: 2000 mm
Machine weight: 3000 kg

Control Unit

Model: TNC151
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 700 mm
Outer width: 350 mm

Tools

Slots in storage: no
Type of tool holder: SK40

Media

Main electronic connection: 400 V
Power consumption: 15 kVA

Additional Information

Machine history

Material type: Steel
End product: Mould and die parts
Industries: Mould and die

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
