MIKRON VCP 600 Vertical Machining Center

Show in original language

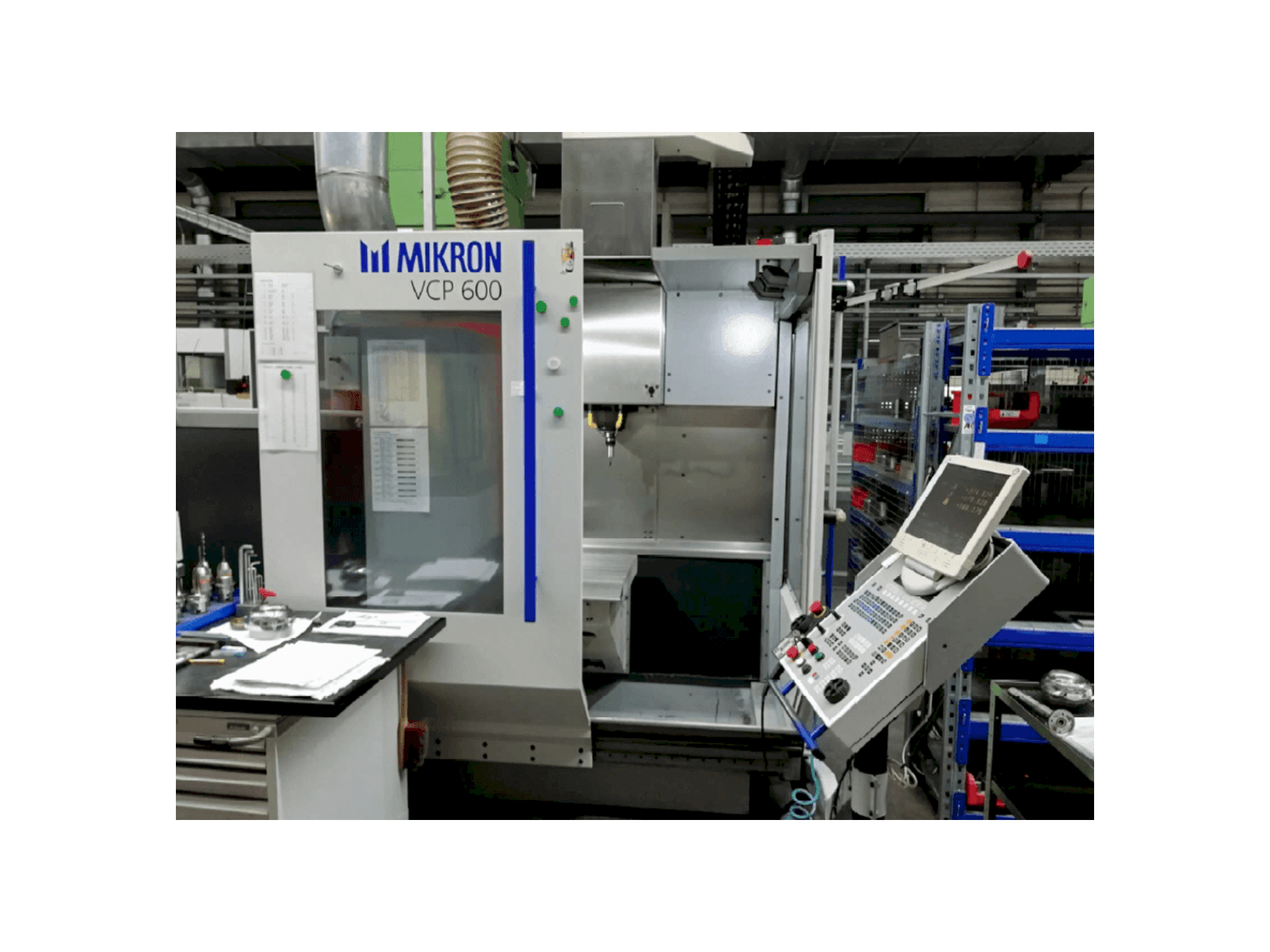

This MIKRON VCP 600 Vertical Machining Center was made in Switzerland in the year 2000. This 3 axis machine works with a spindle speed range 100 - 20000 rpm.

Overview

brand: MIKRON
year: 2000
MODEL: VCP 600
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Heidenhain

Technical Information - MIKRON VCP 600

General Data

Measurements width: 3900 mm
Measurements depth: 3500 mm
Measurements height: 2700 mm
Machine weight: 6500 kg

Control Unit

Brand: Heidenhain
Model: 426/430

Main drive

Spindle speed range: 100 - 20000 1/MIN
Spindle motor power: 12 / 16 kW
Tool taper: HSK-A63

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 850 mm
Outer width: 530 mm
TSlots size: 6x 14H12 x 63 mm
Table load: 400 kg

Tools

Max weight: 6 kg
Max tool diameter: 90 mm
Max tool length: 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
