MIKRON VCP 1000 Vertical Machine Center

Show in original language

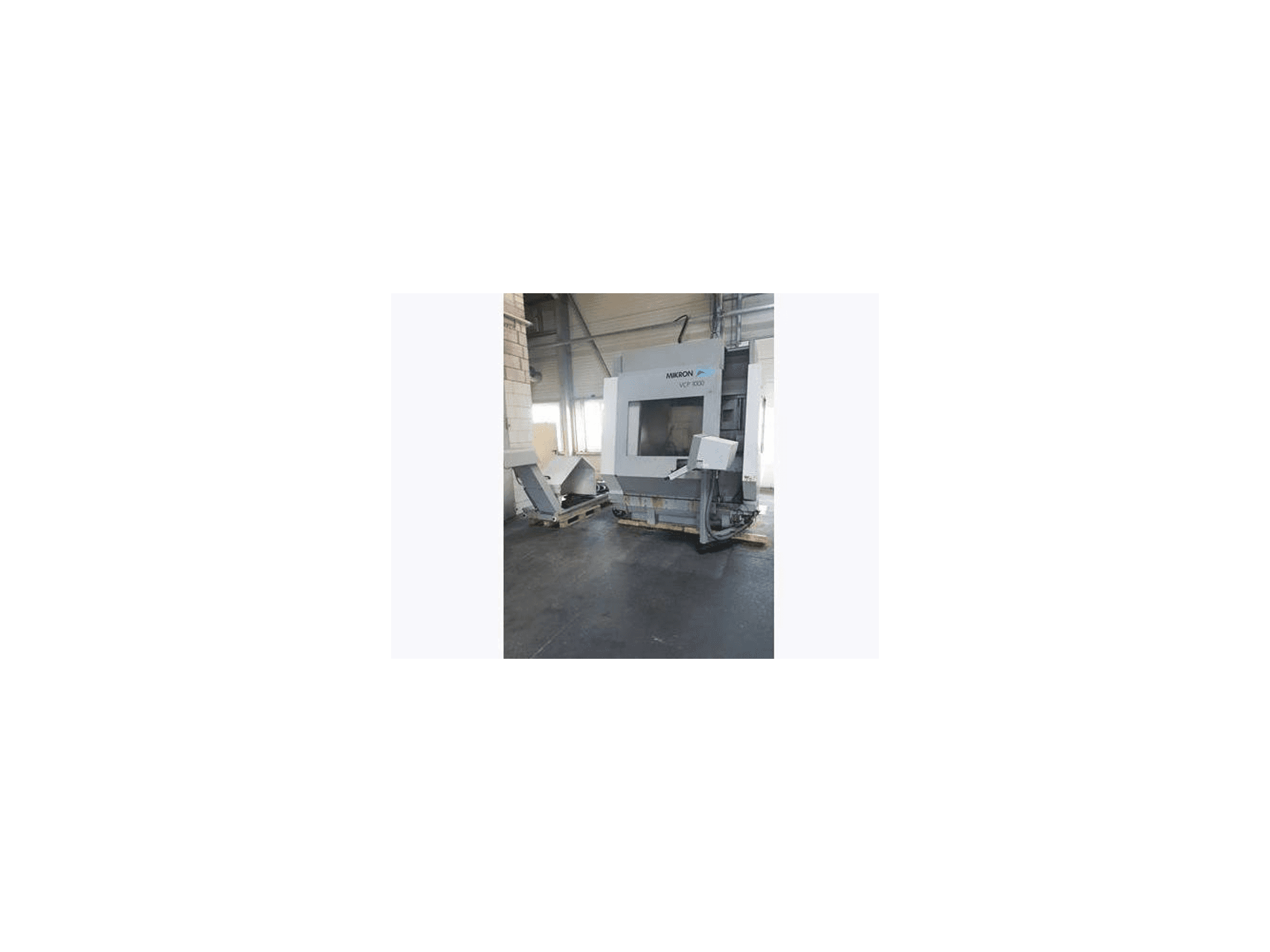

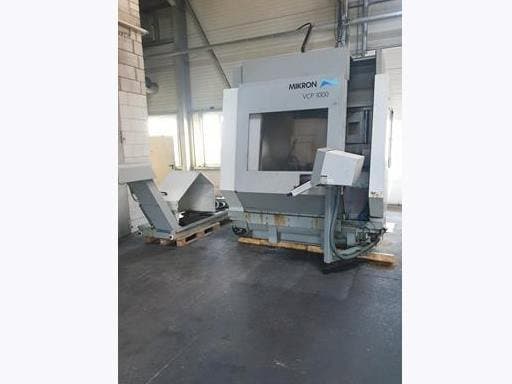

This MIKRON VCP 1000 Vertical Machine Center was manufactured in 1999. The 3 axis machine operated through a Heidenhain 426 control unit. This machine has a spindle speed up to 24000 rpm.

Overview

brand: MIKRON
year: 1999
MODEL: VCP 1000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Heidenhain

Technical Information - MIKRON VCP 1000

General Data

Measurements width: 3100 mm
Measurements depth: 5220 mm
Measurements height: 2840 mm
Machine weight: 9000 kg

Control Unit

Brand: Heidenhain
Model: 426

Main drive

Spindle speed range: 24000 1/MIN

Table

Outer length: 1150 mm
Outer width: 700 mm
Min distance between vertical spindle and table: 115 mm

Media

Main electronic connection: 400 Volt
Power consumption: 40 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal travel (x axis): 1000 mm
- - Cross travel (y axis): 750 mm
- - Vertical travel (z-axis): 750 mm
- - Tool changer: 30-fold
- - Maximum tool length: 305 mm
- - Tool holder: hsk 63
- - Rapid traverse: 22 m/min
- - B7kkv0pi
- - Tool magazine 30-fold
- - Oil cooler
Qualitative Machine Benefits:
- - Handling device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
