MIKRON VC 750 Milling Machine

Show in original language

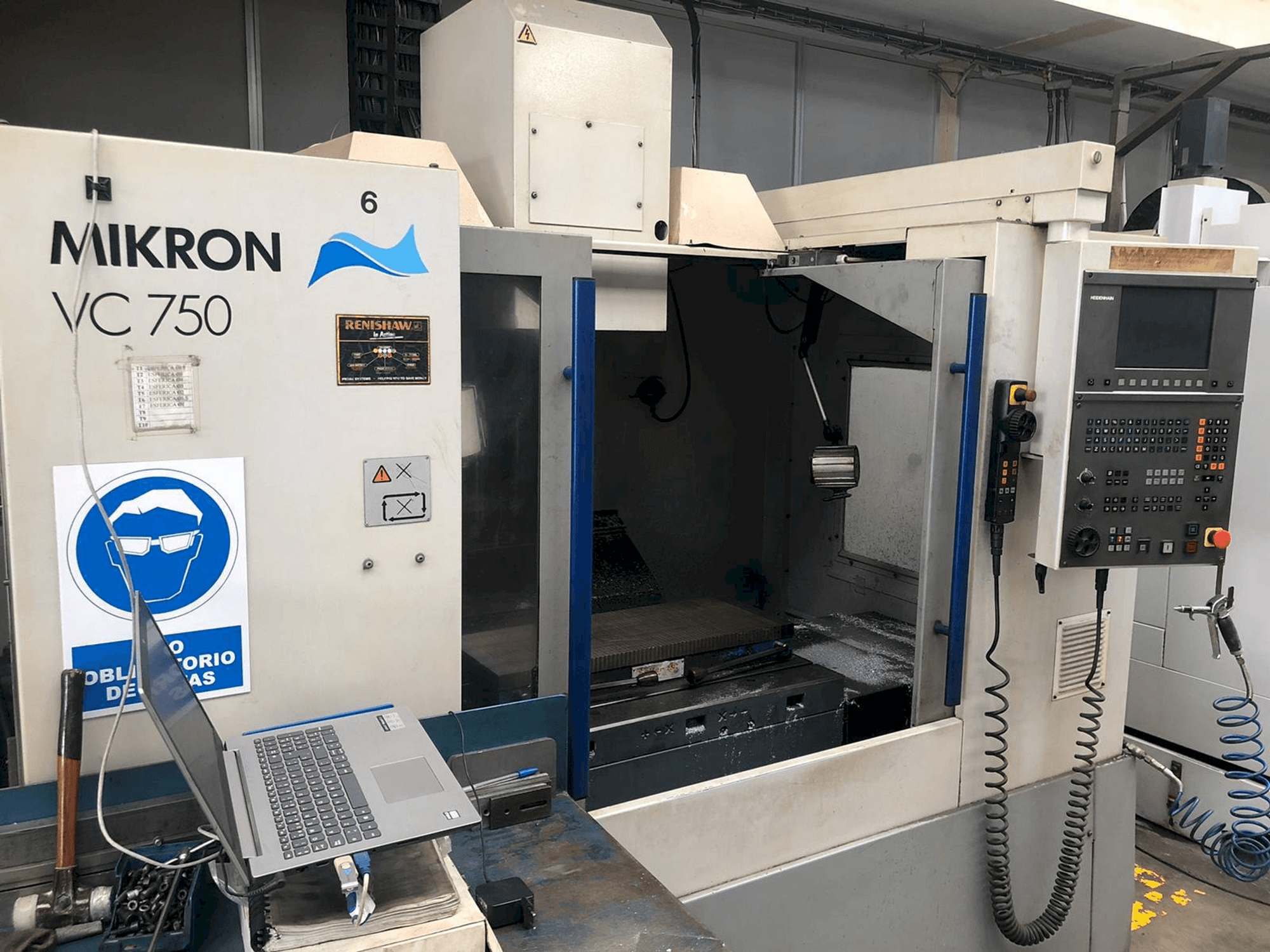

This MIKRON VC 750 Milling Machine was manufactured in 2001 in Switzerland. It is equipped with a Heidenhain control unit. This machine operates with a spindle speed up to 7500 rpm. It includes a chip conveyor, cooling equipment, and a cabin.

Overview

brand: MIKRON
year: 2001
MODEL: VC 750
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON VC 750

General Data

Measurements width: 3000 mm
Measurements depth: 2500 mm
Machine weight: 3900 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 7500 1/MIN

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 914 mm
Outer width: 356 mm
Table load: 1350 kg

Tools

Type of tool holder: BT 40

Media

Main electronic connection: 400 V 50 Hz
Chip conveyor: Yes

Additional equipment

- Cooling equipment
- Cabin

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose and table: 102 - 610 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
