MIKRON UMC 600 Universal Machining Center

Show in original language

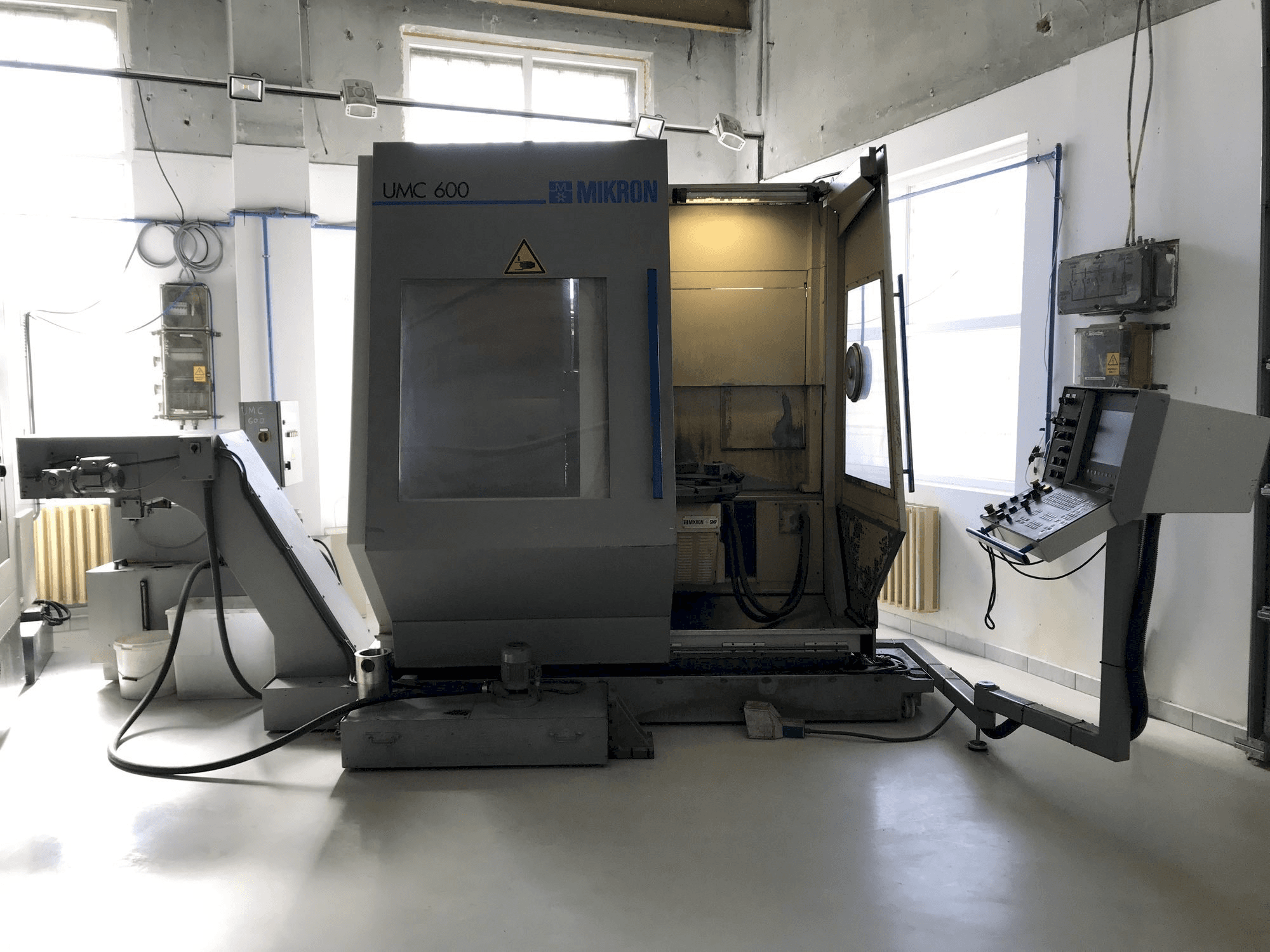

This MIKRON UMC 600 Universal Machining Center was built in 1995 in Switzerland and has been working for 42543 hours. Equipped with a HEIDENHAIN TNC426 Control unit, this double spindled machine can work with a speed up to 6000 rpm.

Overview

brand: MIKRON
year: 1995
MODEL: UMC 600
production hours: 42543
application type: Milling
Location: Hungary
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UMC 600

General Data

Measurements width: 3663 mm
Measurements depth: 2976 mm
Measurements height: 2604 mm
Machine weight: 6200 kg

Control Unit

Model: TNC 426
CNC main language: German / English
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 710 diameter MM

Tools

Slots in storage: 44
Max weight: 6 kg
Type of tool holder: SK40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
