➤ Used MIKRON UCP 600 For sale | gindumac.com

Show in original language

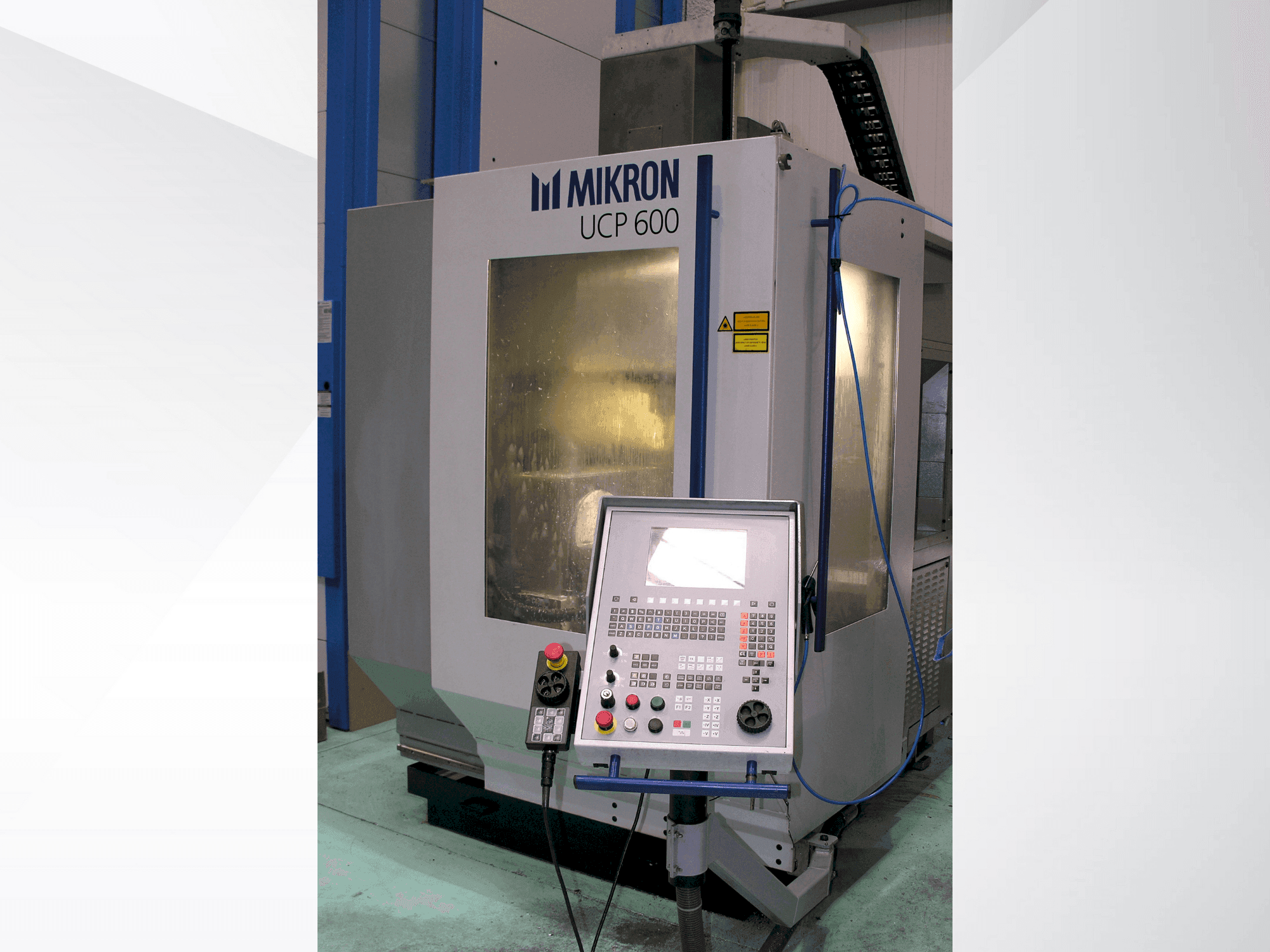

This 5-axis MIKRON UCP 600 vertical machining center was manufactured in 2000. It features a spindle speed of 42,000 rpm, a spindle power of 14 kW, and a rapid feed rate of 22 m/min. The machine includes a Heidenhain 430M CNC, Renishaw OMP 40 probe, and can handle a maximum table load of 200 kg. Ideal for complex and precise machining tasks, the MIKRON UCP 600 machine we have for sale is well-maintained and upgraded. Contact us for further details.

Overview

brand: MIKRON
year: 2000
MODEL: UCP 600
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 600

Control Unit

Model: 430M
Brand: HEIDENHAIN

Main drive

Spindle speed range: 42,000 1/MIN
Spindle motor power: 14 kw
Tool taper: HSK E-40

Movement

X-AXIS Movement: 530 mm
X-AXIS Working Feed: 15 m/min
X-AXIS Feed Force: 22 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Working Feed: 15 m/min
Y-AXIS Feed Force: 22 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Working Feed: 15 m/min
Z-AXIS Feed Force: 22 m/min

Table

Table load: Max 200kg

Tools

Slots in storage: 36
Max tool diameter: 16 mm

Additional equipment

- Workpiece Measurement Probe: Renishaw OMP 40
- Workpiece Breakage Probe: BLUM (included but not installed)
- Thermal cones, collet chucks, and Franken PGR holders
- Custom-made post-processor for Mastercam with direct machine simulation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool change time: 5 seconds
- - Cradle rotation: -15º to 122º
- - Table diameter: 280 mm
Qualitative Machine Benefits:
- - Upgrades made to enhance the machine's precision, including a lubricated bushing on the cradle support, the spindle has been serviced with new bearings, tie rods, etc. , the bellows are brand new, and components that were worn out from use have been replaced
- - The original support was directly on cast iron, which tended to seize up

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
