MIKRON UCP 1000 Vertical Machining center

Show in original language

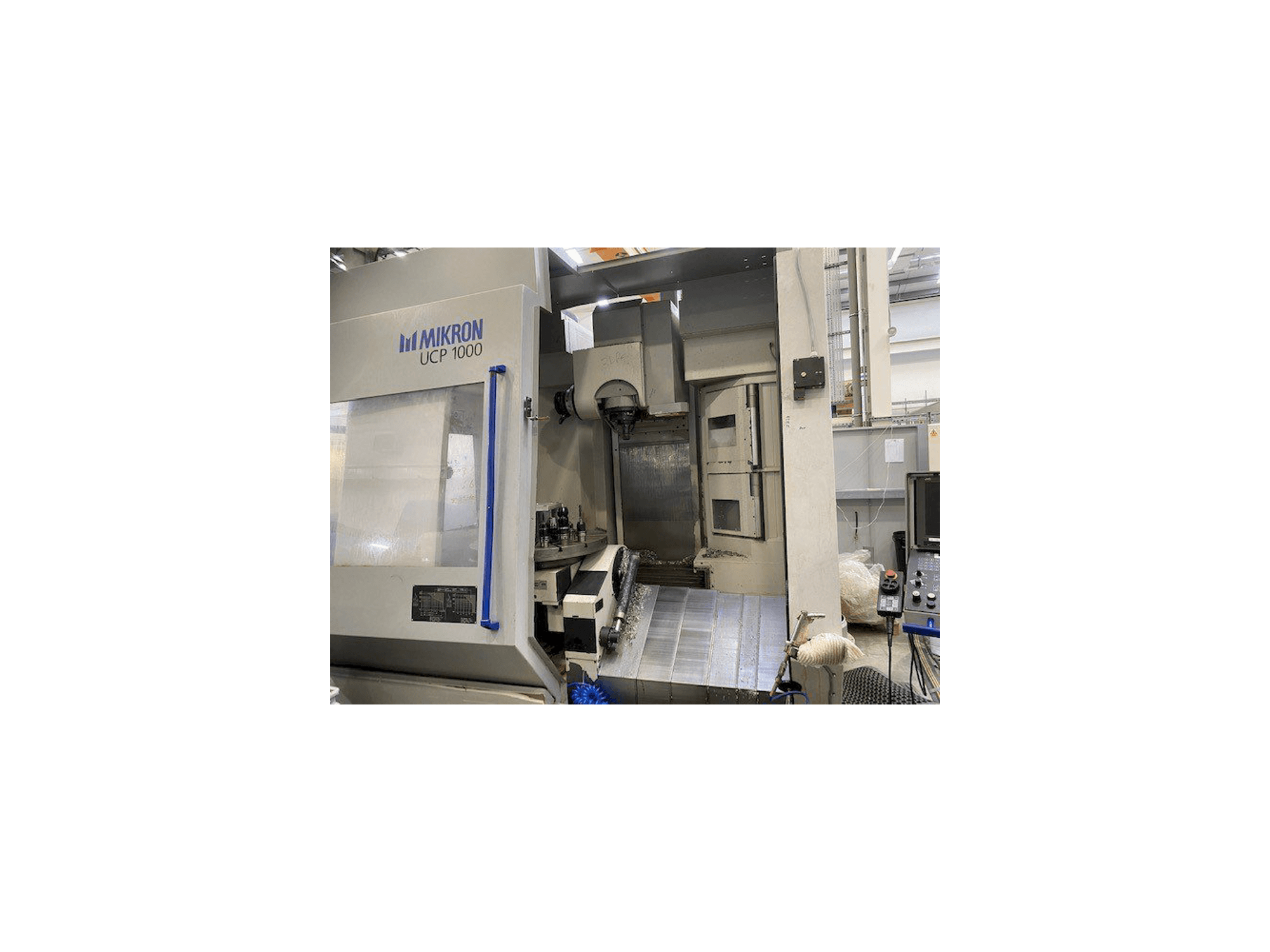

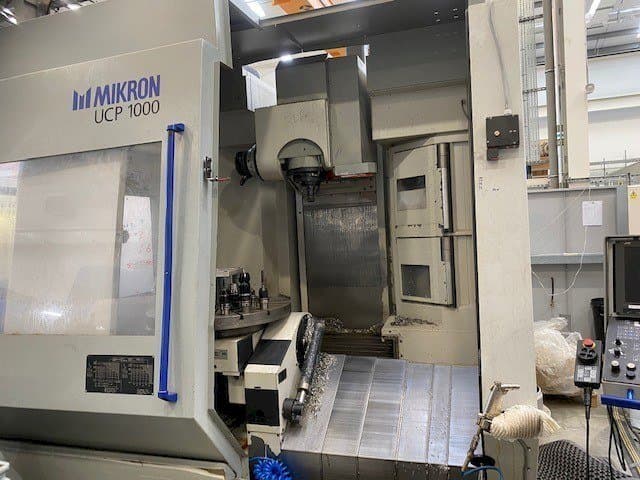

This MIKRON UCP 1000 Vertical Machining center was made in Switzerland in 2000. It shows 9328 spindle hours. This 5 axis machine is operated through a Heidenhain TNC426 control unit. It has a spindle speed up to 15000 rpm. Includes a Renishaw spindle and TS27 tool length setting probes.

Overview

brand: MIKRON
year: 2000
MODEL: UCP 1000
production hours: 9328
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 1000

General Data

Measurements width: 4400 mm
Measurements depth: 2400 mm
Measurements height: 2900 mm
Machine weight: 10100 KG

Control Unit

Model: TNC426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Spindle motor power: 24 kW
Tool taper: HSK A63
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 1000mm
Z-AXIS Movement: 655mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 40 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Recommended maximum working feed: 10 m/min
- - Rapid traverse rate: 30 m/min
- - Axis force x and y/z: 10000 n
- - Spindle torque 40% ed: 127 nm
- - Work table c-axis: 0. 001°
- - Work table rotation speed: 12 rpm
- - Renishaw spindle
- - Ts27 tool length setting probes
- - Through spindle coolant
- - Oil mist extraction
Qualitative Machine Benefits:
- - Manuals machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
