MIKRON Mill E 700 U

Show in original language

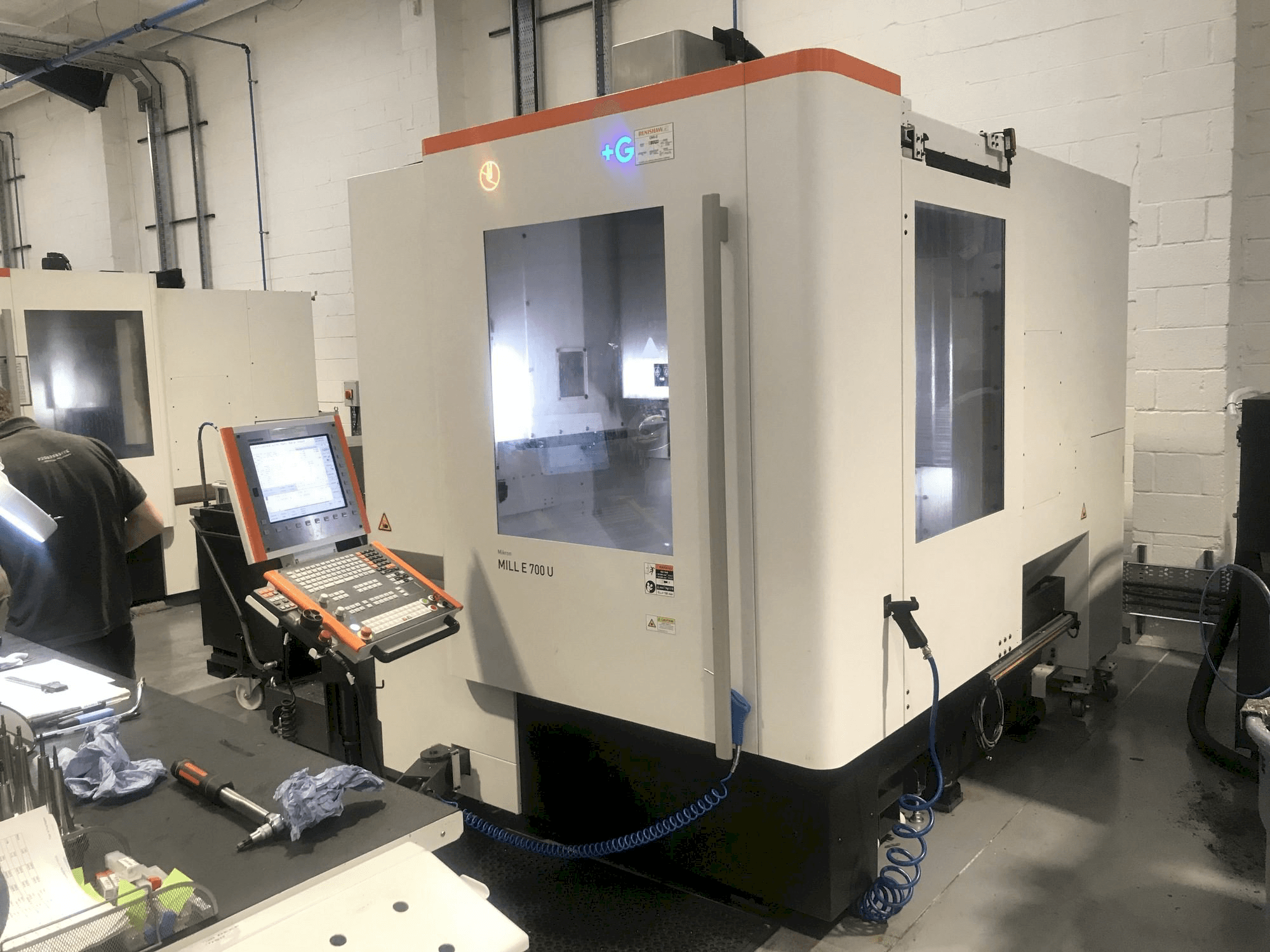

This MIKRON Mill E 700 U Vertical Machining Center was built in 2019. It has been on for 14231 hours of which 5786 are spindle hours. This 5 axis machine operates through a HEIDENHAIN iTNC 530 control unit. It works with a spindle speed up to 20000 rpm. This machine is like new.

Overview

brand: MIKRON
year: 2019
MODEL: Mill E 700 U
production hours: 5786
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON Mill E 700 U

Control Unit

Model: iTNC 530
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 500 MM

Workpiece

Workpiece weight: 450 KG

Table

Outer length: 630 MM

Tools

Slots in storage: 60
Type of tool holder: HSK-A63

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary tilting table (rtt) – simultaneous (torque motor) size ø 630 mm
- - B-axis -65°/+120°
- - C-axis 360° x 0. 001°
- - Through spindle coolant tsc 50 - 70 bar
- - Touch probe infrared renishaw omp 40 / hsk-a63
- - Band filter system 600 l
- - Compressed air through spindle
- - Heidenhain linear glass scales
- - Blum laser measuring system
- - Itc-5x intelligent thermal control 5-axis, aps advanced process system, dnc remote network access on control, kinematicsopt
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
