Metba MB-55-D Bed Type Milling Machine

Show in original language

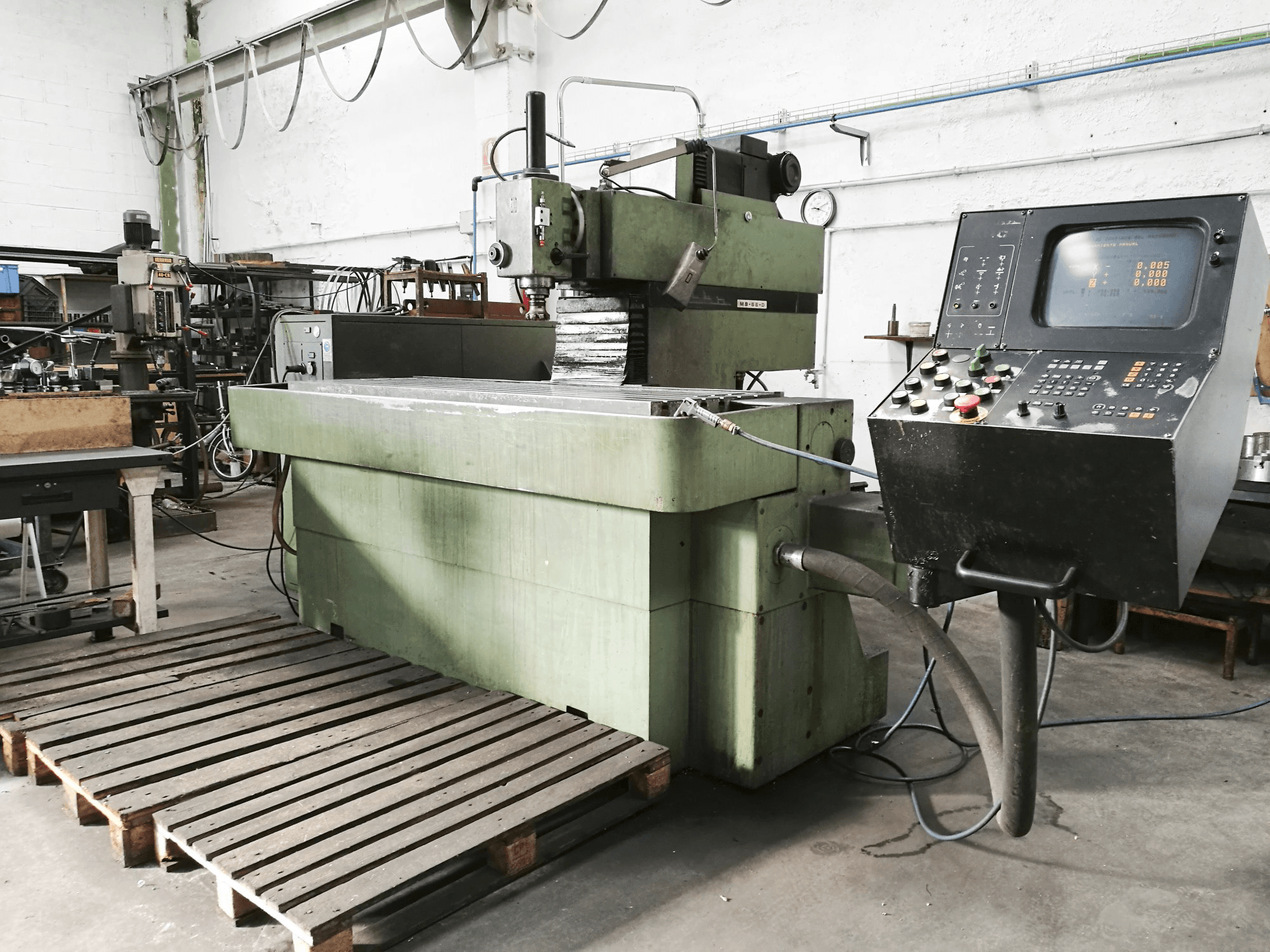

This Metba MB-55-D Bed Type Milling Machine from 1989 has a production record of 42000 hours. With a spacious table of 2000 x 725 millimeters (L x W) and a range of movements of 1100, 600 and 500 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a HEIDENHAIN LE 355 B Control unit.

Overview

brand: Metba
year: 1989
MODEL: MB-55-D
production hours: 42000
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Metba MB-55-D

General Data

Measurements width: 2900 mm
Measurements depth: 1690 mm
Measurements height: 2500 mm
Machine weight: 5000 kg

Control Unit

Brand: HEIDENHAIN
Model: LE 355 B

Main drive

Spindle speed range: 3000 1/min
Spindle motor power: 7.7 kW
Tool taper: BT 40

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 2000 mm
Outer width: 725 mm
TSlots size: 16 mm
Number of tslots: 7
Distance between: 90 mm

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
