Mazak - VTC-800/20SRPL-MIL-MAZ-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VTC-800/20SR Milling

Show in original language

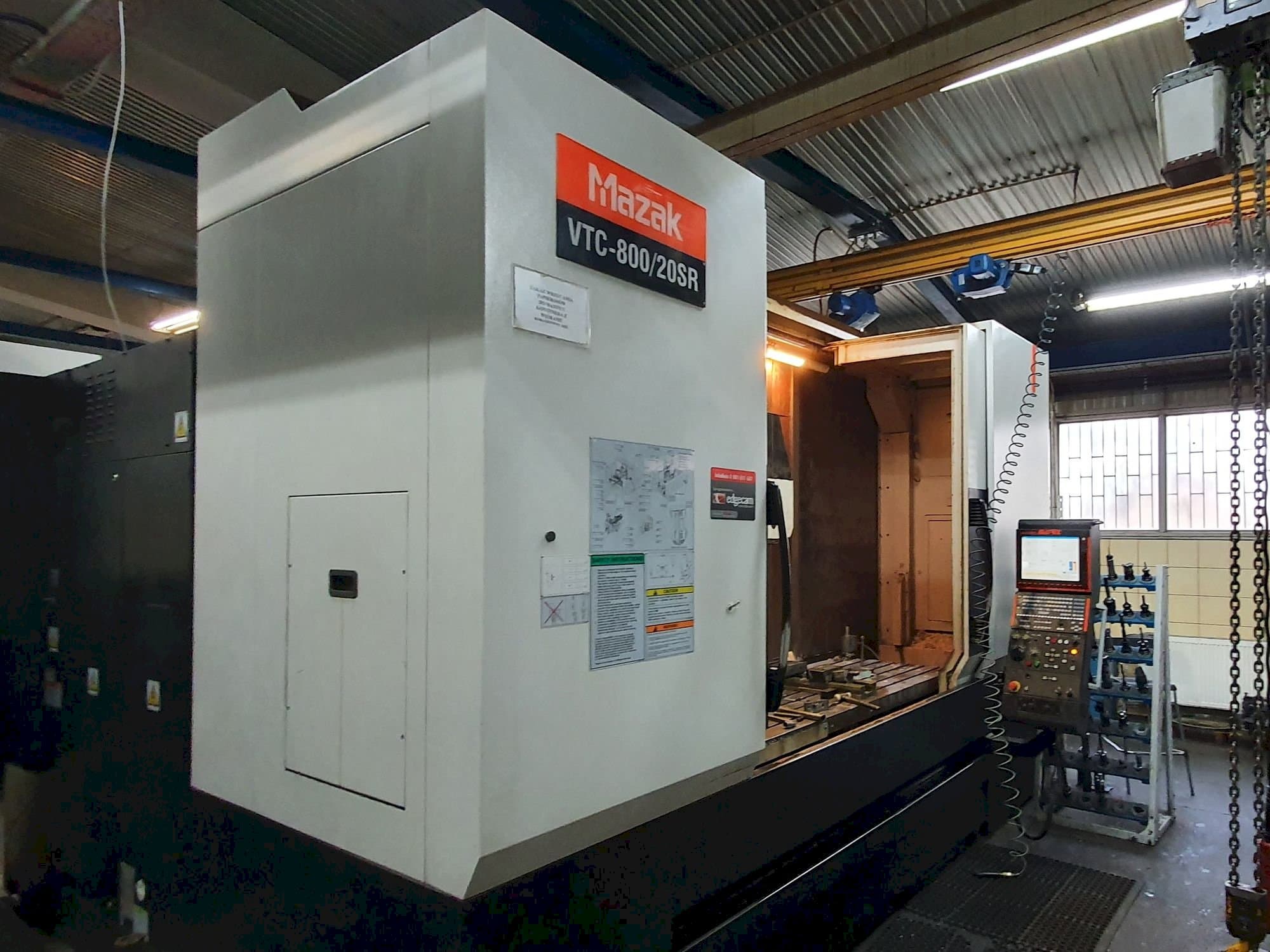

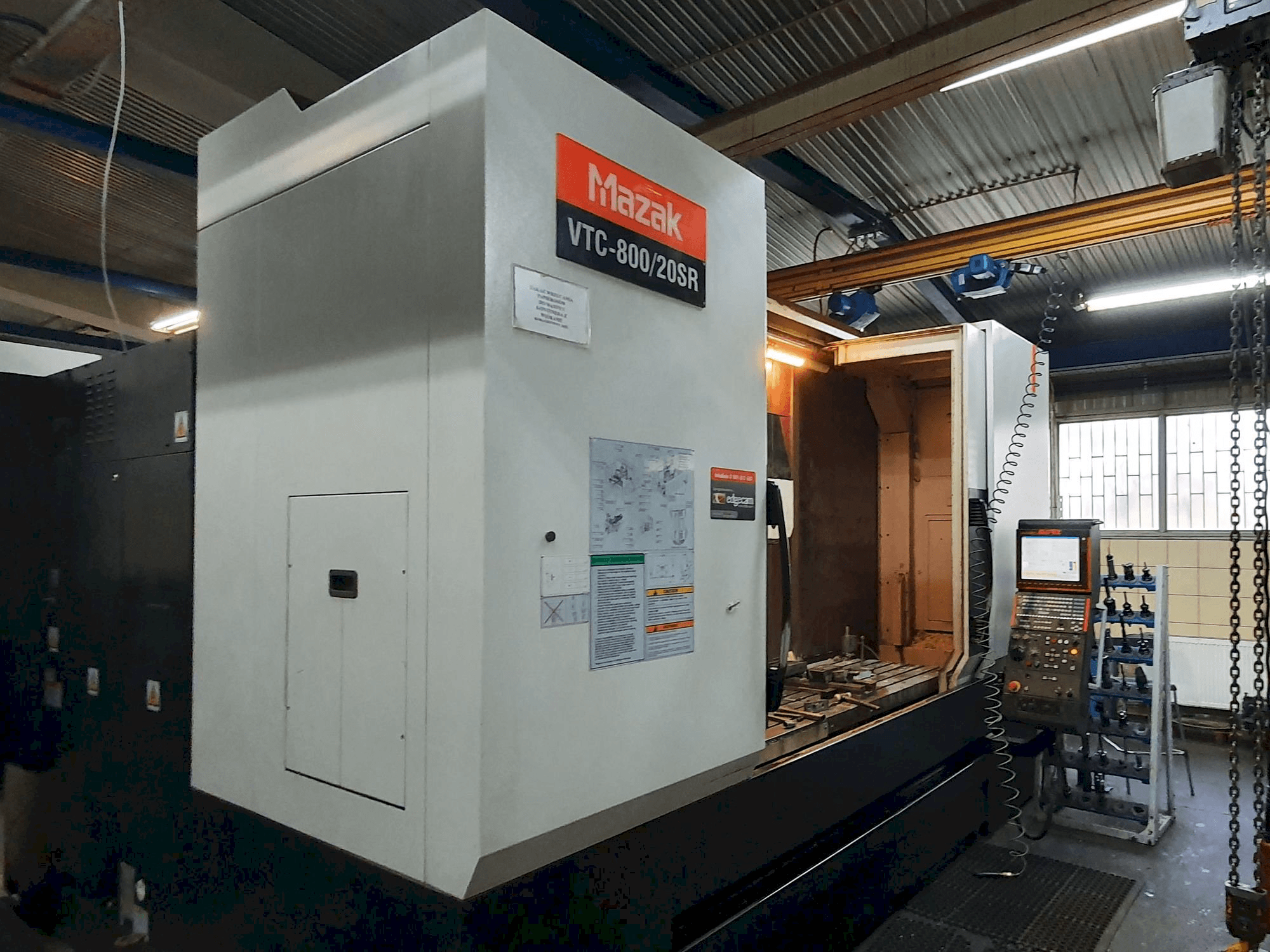

This Mazak VTC-800/20SR Vertical Machining Center was manufactured in 2010. It has been working for 47150 hours. It is operated through a Mazatrol Matrix control unit. This machine can work with a spindle speed range up to 18000 rpm. This 4 axis machine is in very good, working condition.

Overview

brand: Mazak
year: 2010
MODEL: VTC-800/20SR
production hours: 47150
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-800/20SR

General Data

Measurements width: 4250 mm
Measurements depth: 4046 mm
Measurements height: 3328 mm
Machine weight: 12000 kg

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 720 mm
Z-AXIS Rapid traverse: 50 m/min

Table

Outer length: 2500 mm
Outer width: 820 mm

Media

Main electronic connection: 84.7 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool storage capacity - 30 pcs
- - Tool shank - cat-40/mas bt-40
- - Cooling through the spindle - 21bar
- - Supply voltage 3x400v / 50hz
Qualitative Machine Benefits:
- - Very good, working condition
- - Full service documentation.
- - Manuals: english, polish.
- - Always serviced by mazak poland service.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
