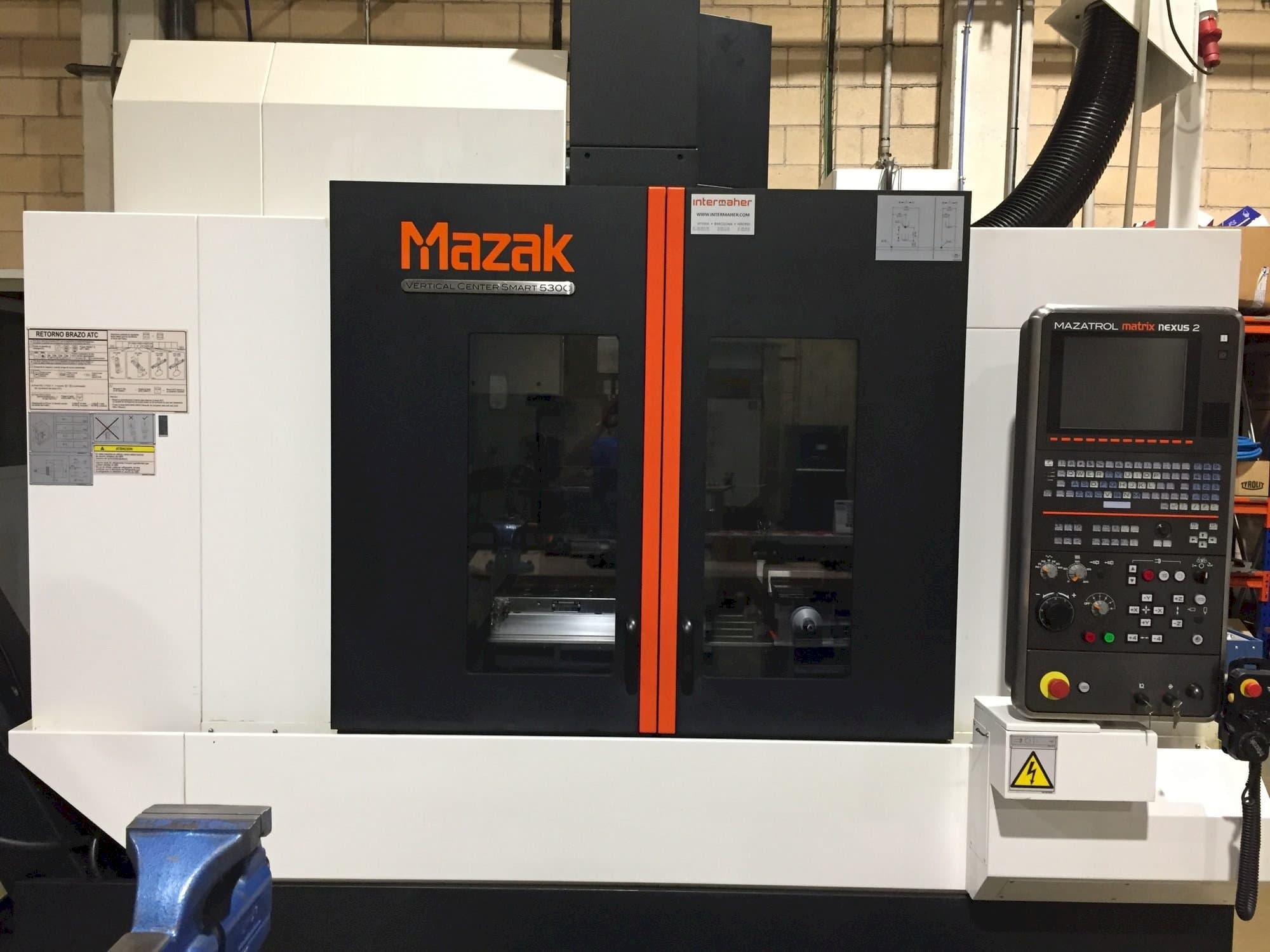

This Mazak VCS 530C Vertical Machining Center was manufactured in the year 2015 in United Kingdom. It has been working for 2371 hours. It is equipped through a Mazatrol Matrix NX2 control unit. This 3 axis machine can work with a spindle speed range up to 12000 rpm and counts with a table size of 1300 x 550 mm. It is in very good condition.
Overview
- brand: Mazak
- year: 2015
- MODEL: VCS 530C
- production hours: 2371
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Mazatrol
Technical Information - Mazak VCS 530C
Control Unit
- Brand: Mazatrol
- Model: Matrix NX2
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 530 mm
- Z-AXIS Movement: 510 mm
Workpiece
- Workpiece weight: 1200 KG
Table
- Outer length: 1300 mm
- Outer width: 550 mm
- Number of tslots: 5
- Distance between: 18 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80 mm
- Max tool length: 350 mm
Additional Information
- Technical Machine Benefits:
- - High pressure cooling 15 bar
- - Automatic tool gauge
- - Synchronized threading
- - Air blowing to the part
- - Renishaw ts 27r gage
- - Mazacc 3d software for high speed + high smoothing control
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
