Mazak - VCS 430A LDE-MIL-MAZ-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

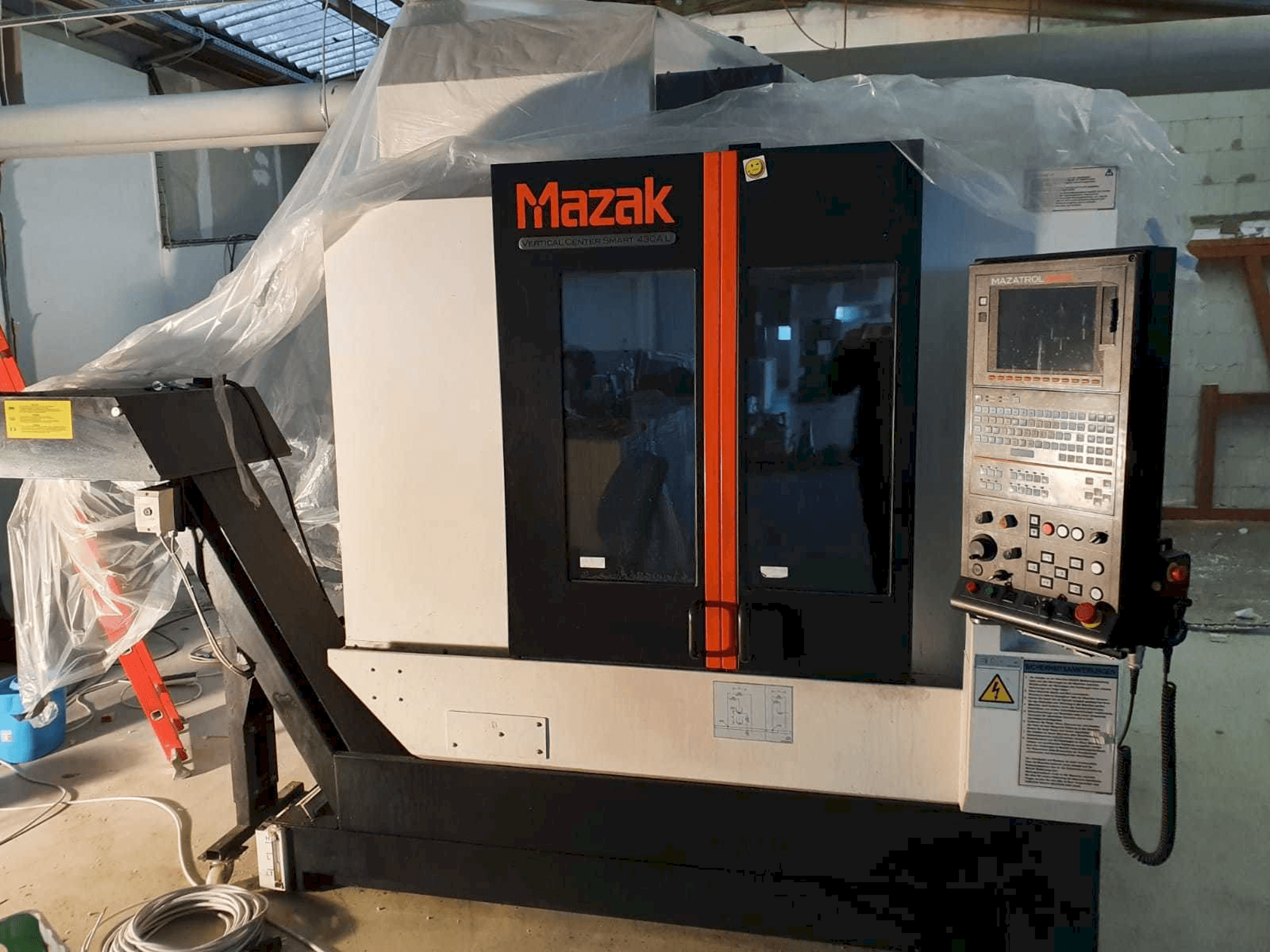

Mazak VCS 430A L Vertical Machining Center

Show in original language

This Mazak VCS 430A L Vertical Machining Center was manufactured in China in 2016. This 3 axis machine can perform with a spindle speed up to 12000 rpm.

Overview

brand: Mazak
year: 2016
MODEL: VCS 430A L
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Mazak VCS 430A L

General Data

Measurements width: 2778 mm
Measurements depth: 2080 mm
Measurements height: 2624 mm
Machine weight: 4800 kg

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 560 mm
X-AXIS Working Feed: 8000 mm/min
X-AXIS Rapid traverse: 42 m/min
Y-AXIS Movement: 430 mm
Y-AXIS Working Feed: 8000 mm/min
Y-AXIS Rapid traverse: 42 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 8000 mm/min
Z-AXIS Rapid traverse: 42 m/min

Table

Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 660 mm
Table load: 500 kg

Tools

Max weight: 8 kg
Max tool length: 350 mm
Type of tool holder: Cone 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Magazine places: 30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
