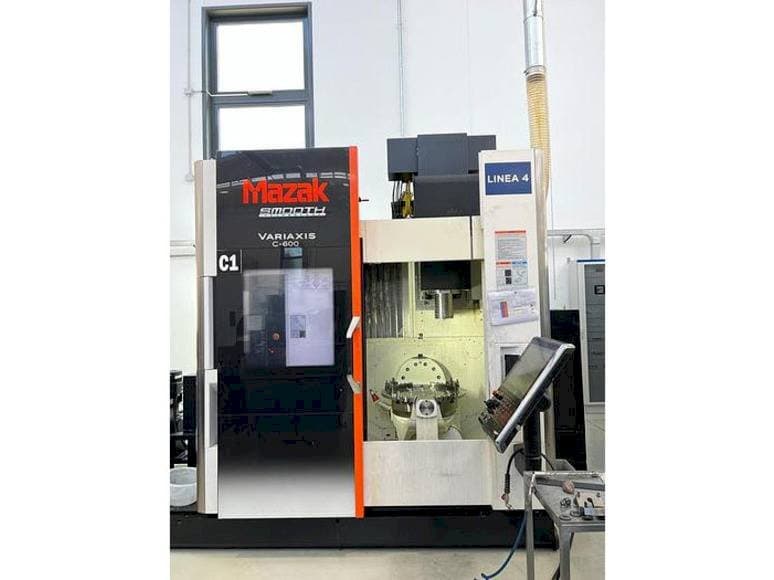

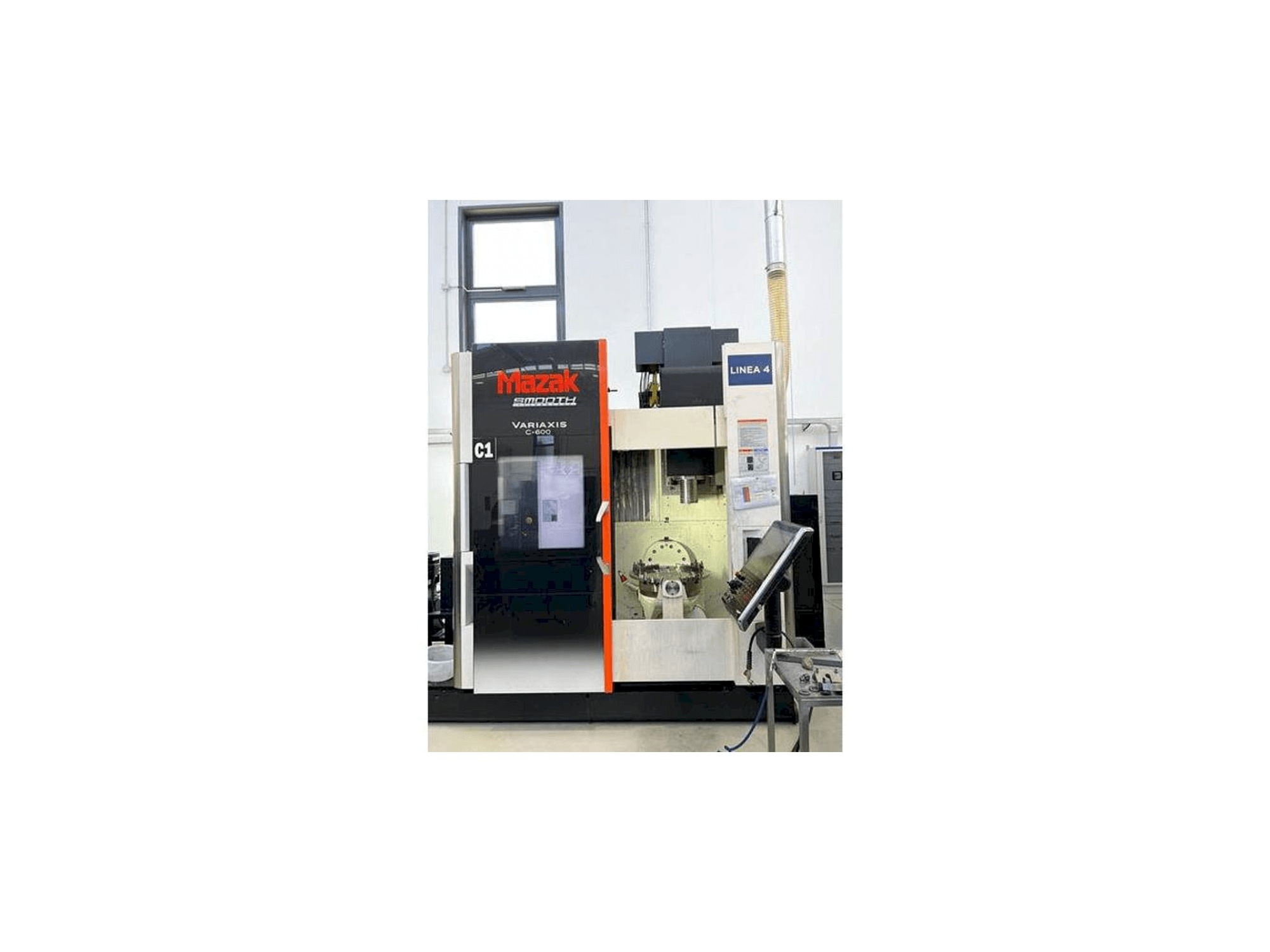

MAZAK VARIAXIS C 600 Vertical Machining center

Show in original language

This MAZAK VARIAXIS C 600 Vertical Machining center was manufactured in the year 2021 and has 12574 production hours. It is equipped with a Mazak control unit. The machine has a spindle speed of 18000 rpm.

Overview

brand: Mazak
year: 2021
MODEL: VARIAXIS C 600
production hours: 12574
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VARIAXIS C 600

General Data

Machine weight: 10000 Kg

Control Unit

Brand: MAZATROL

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 18.5 Kw
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 530 mm

Table

Outer length: 500 mm
Outer width: 400 mm
Table load: 500 kg

Tools

Type of tool holder: ISO 45

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 60 tool warehouse
- - High pressure refrigeration system (15kgf,213psi)
- - 70 bar interface
- - Synchronized tapping
- - Constant acceleration ramp g00
- - 5-axis machining package for smooth ai
- - Table diameter with t-seat 600x500mm
- - Remote handwheel
- - Rmp600 probe preparation
- - Left chip conveyor device (hinge/for steel)
Qualitative Machine Benefits:
- - Like new
- - 3 color lamp
- - Coord. Cylindrical and polar interpolat(eia)
- - High pressure system through the spindle 20 bar
- - Smooth ai steering unit
- - Number of pallets 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
