- Mazak Smart 530C Vertical machining center

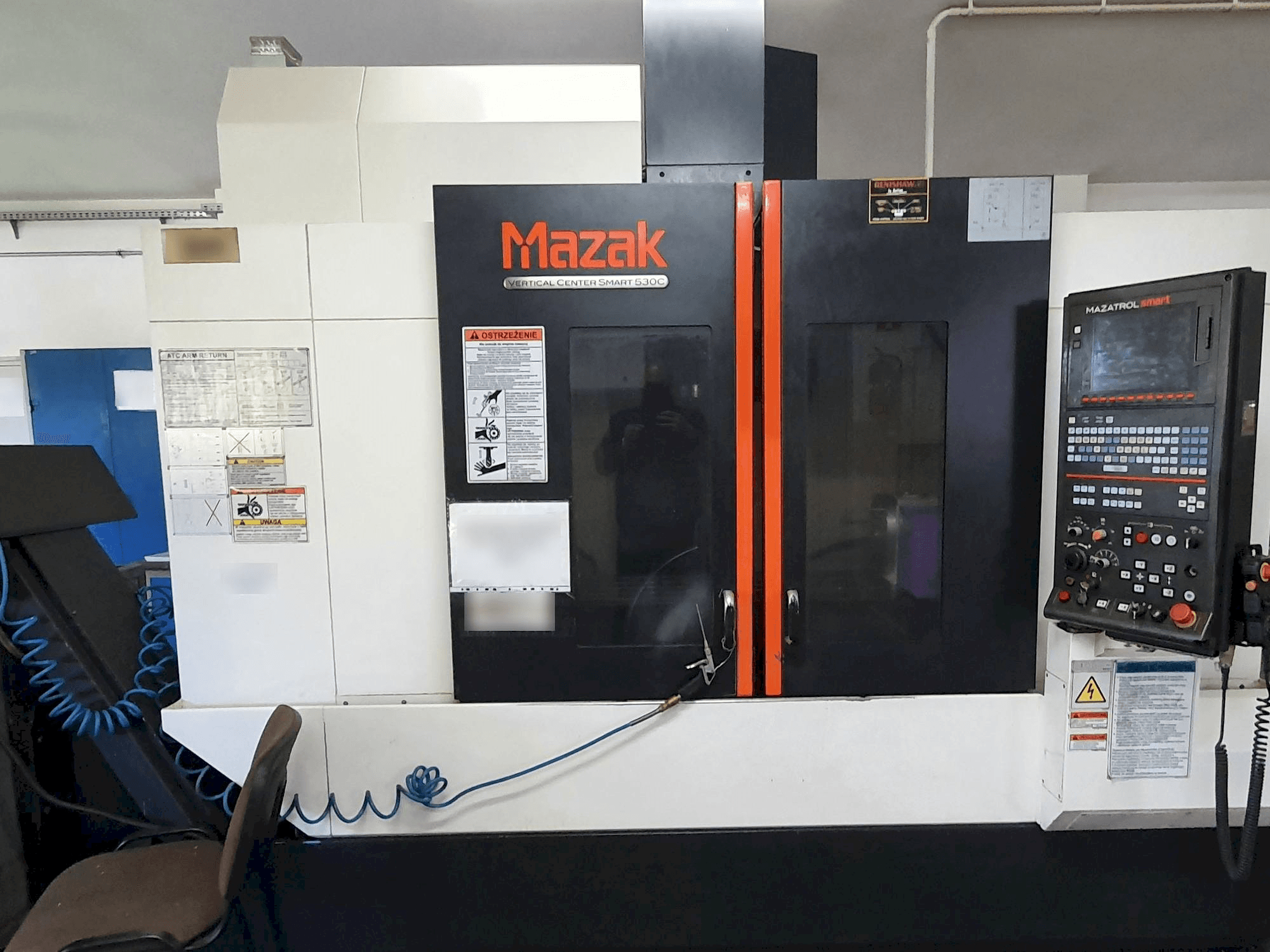

This Mazak Smart 530C Vertical machining center was made in the United Kingdom in 2012. It has approximately 16000 working hours. This 3 axis machine is operated through a MAZATROL Smart control unit. It can works with a spindle speed up to 12000 rpm. Includes a KITAGAWA MR250 NC rotary table, tooling and accessories. Machine in working condition not used at the production now.
Overview
- brand: Mazak
- year: 2012
- MODEL: Smart 530C
- production hours: 16000
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak Smart 530C
General Data
- Measurements width: 2880 mm
- Measurements depth: 2929 mm
- Measurements height: 2808 mm
- Machine weight: 6800 KG
Control Unit
- Brand: MAZATROL
- Model: Smart
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 18.5 kW
- Tool taper: No. 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1050 mm
- X-AXIS Rapid traverse: 42 m/min
- Y-AXIS Movement: 530 mm
- Y-AXIS Rapid traverse: 42 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Rapid traverse: 42 m/min
Table
- Outer length: 1300 mm
- Outer width: 550 mm
- Table load: 1200 KG
Tools
- Slots in storage: 30 pcs
Media
- Main electronic connection: 3 x 400V / 50Hz
- Power consumption: 26.9 kVA
Additional Information
- Technical Machine Benefits:
- - Cutting feed rate (x, y, z): 1 – 8000 mm/min
- - Automatic tool changer (atc)
- - Tool shank: cat no. 40
- - Coolant tank capacity: 250 l
- Qualitative Machine Benefits:
- - Machine in working condition not used at the production now.
- - Full documentation available
- - Tests possible
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
