Mazak QTC 300MY L500

Show in original language

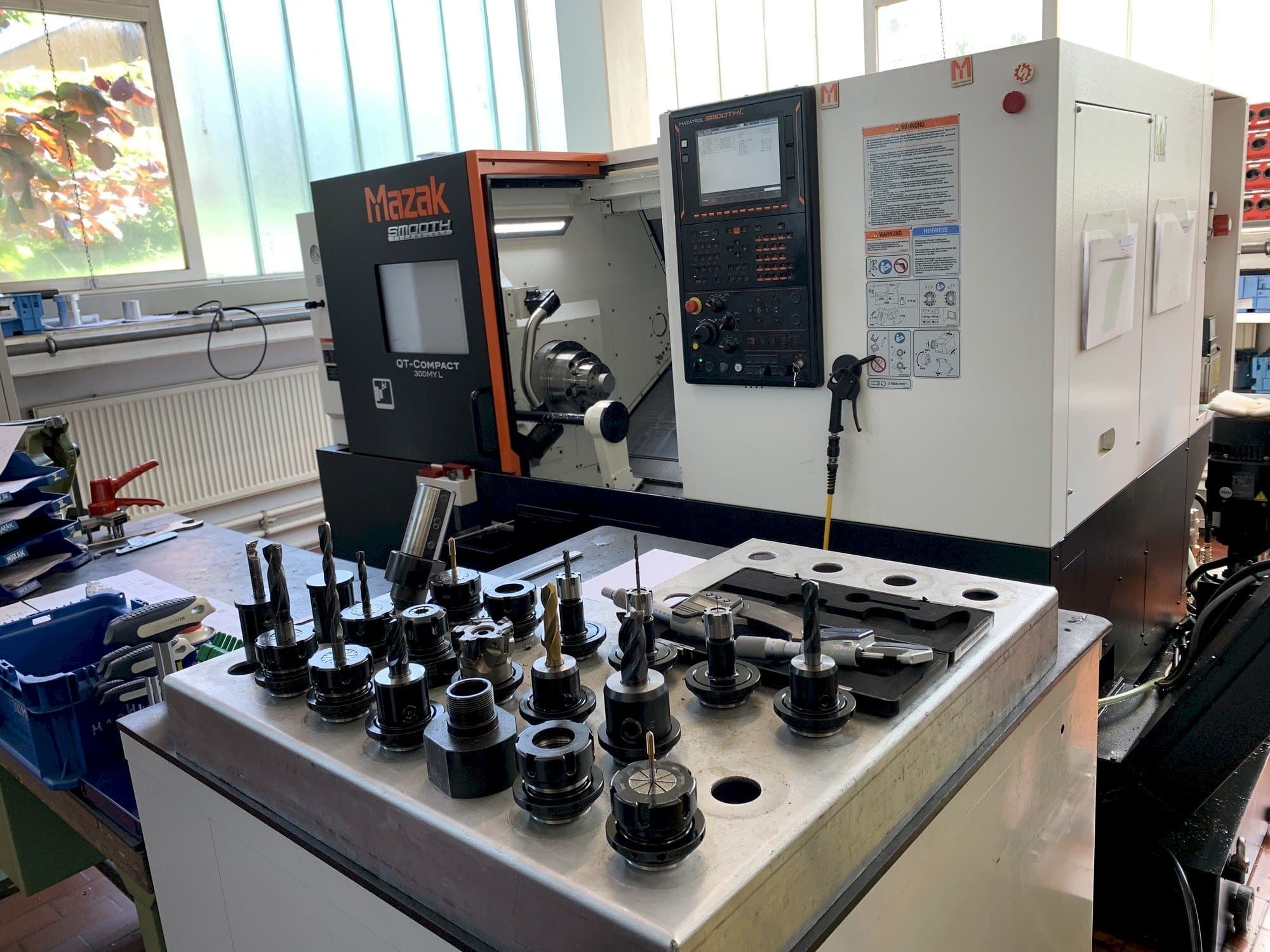

This Mazak QTC 300MY L500 Lathe was made in China in the year 2018. It has been working for 5056 hours. This 3 axis machine is operated through a MAZATROL SMOOTHC control unit. It can work with a spindle speed up to 4000 rpm and a spindle bore 91 mm. This machine includes several options as 1 set of adjustment tools and a small tool box with a spanner, screwdriver and an Allen key. It comes with a set of manuals in electronic form on OD.

Overview

brand: Mazak
year: 2018
MODEL: QTC 300MY L500
production hours: 5056
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak QTC 300MY L500

General Data

Measurements width: 1690 mm
Measurements depth: 2700 mm
Measurements height: 1725 mm
Machine weight: 4670 kg

Control Unit

Model: SMOOTHC
Brand: MAZATROL

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 15.0 kW
Spindle bore: 91 mm
Pressing force: 5000 KN
Number of axis: 3

Movement

X-AXIS Movement: 215 mm
X-AXIS Rapid traverse: 30.0 m/min
Y-AXIS Movement: 100 mm
Y-AXIS Rapid traverse: 10.0 m/min
Z-AXIS Movement: 605 mm
Z-AXIS Rapid traverse: 30.0 m/min

Workpiece

Workpiece weight: 500 kg

Turret

Number of tool slots: 12

Media

Main electronic connection: 400 V 50/60 HZ
Power consumption: 26.8 kVA

Additional equipment

- B688EL110 Transformer for the European market
- B688M0575 Use of linear systems with carriages from leading manufacturers
- B688N0839 SD MEMORY l/F(1P) + USB MEMORY l/F(1P) 1 x USB - Memory Interface (1 SIot)
- B688SD120 1 set of adjustment tools
- Small tool box with - spanner - Screwdriver - l Allen key
- B688SD130 Machine feet / levelling shoes
- B688S1039 C-axis input accuracy 0.0001
- B688TT014 Integrated travelling quill MK 4 (1000)
- B688TT640 Tailstock with fixed quill MK5 (500U)
- B688YI 030 Y-axis control

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter main spindle 10''
- - Max. Swing diameter 695 mm
- - Standard machining diameter 255 mm
- - Max. Machining diameter 340 mm
- - Max. Bar diameter main spindle 80 mm
- - Distance between spindle end and turret 59. 5 - 664. 5 mm
- - Max. Workpiece weight chuck machining main spindle 450 kg
- - Spindle nose a2-8
- - Max. Torque 356. 0 nm
- - Travel range tailstock body 565 mm
Qualitative Machine Benefits:
- - Tool cross-section (external turning tool) 565 mm2
- - Boring bar diameter (max. ) 40 mm
- - Tool size drill 20 mm
- - Tool size milling cutter 20 mm
- - Switching time 1 turret station 0. 23 s
- - Switching time full turret rotation 0. 63 s
- - Milling spindle power (continuous operation) 3. 7 kw
- - Milling spindle power (40% ed) 5. 5 kw
- - Max. Milling spindle speed milling spindle speed 4500 min-1
- - Max. Milling spindle torque 47. 0

Extra information

- Set of manuals in electronic form on OD
