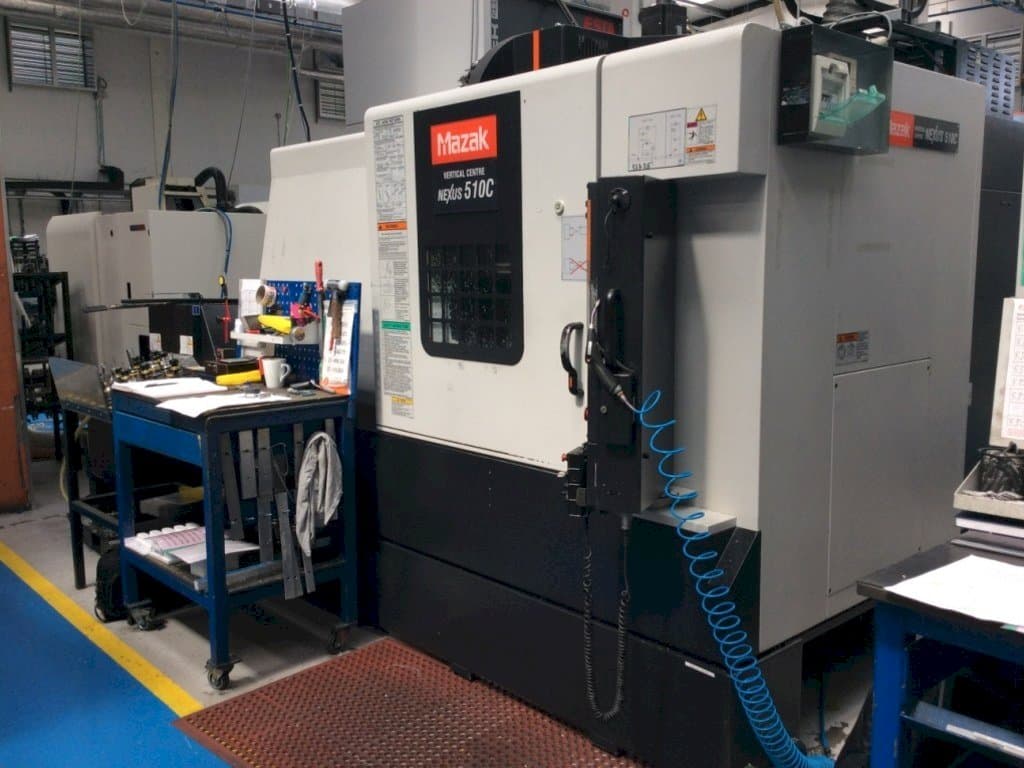

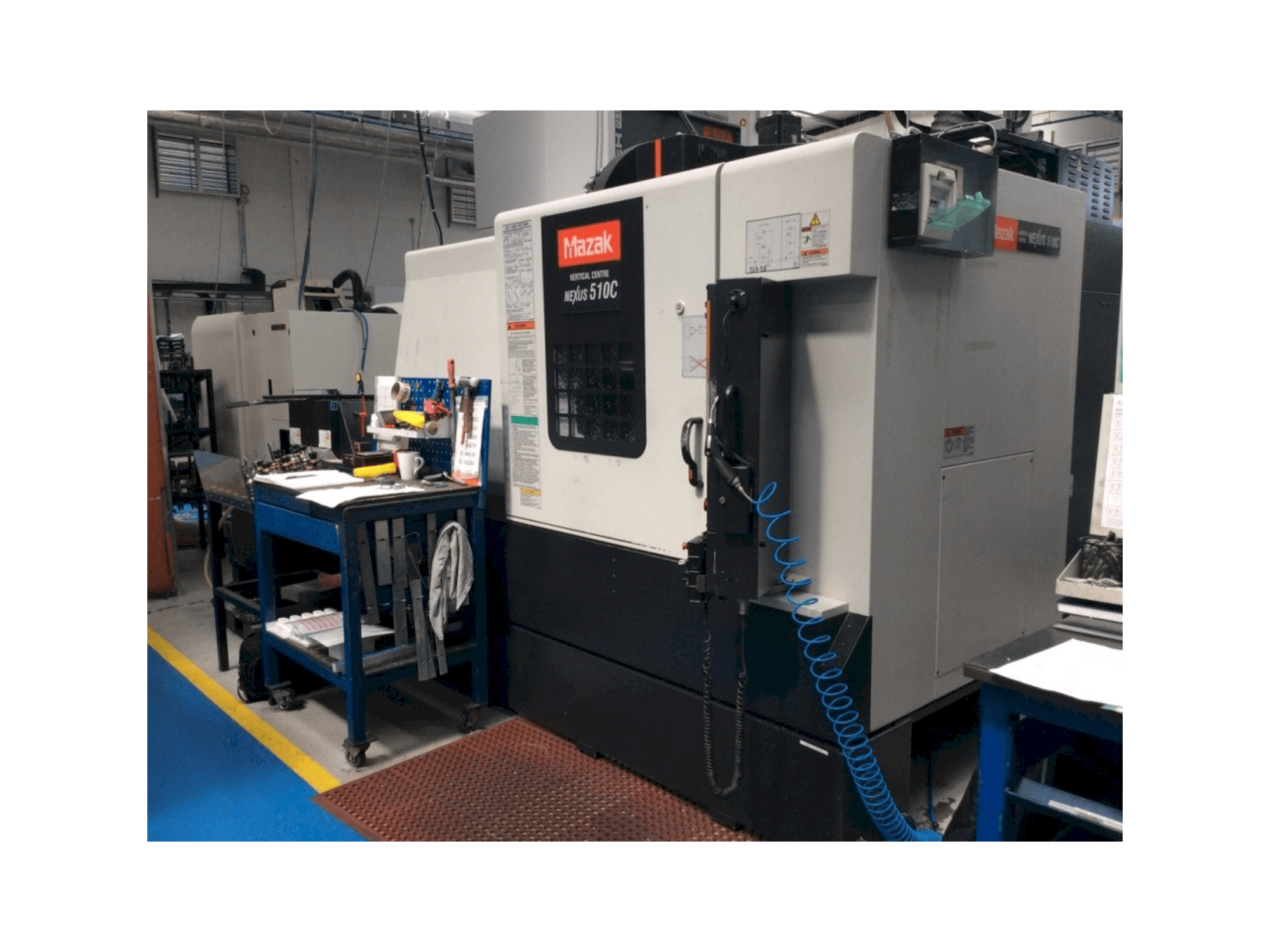

Mazak Nexus VCN 510C Vertical Machining Center

Show in original language

This Mazak Nexus VCN 510C Vertical Machining Center was manufactured in 2004 in Japan. It has a production record of 43709 working hours ever since. It is operated through a Mazak Mazatrol 640M Nexus control unit. It can works with a spindle speed range up to 12000rpm. In the past, this Nexus VCN 510C has been working with aluminium and plastic as main material, and produced parts for the pharmaceutical industry. It includes 20 pieces ER32 tool holders.

Overview

brand: Mazak
year: 2004
MODEL: Nexus VCN 510C
production hours: 43709
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Nexus VCN 510C

General Data

Measurements width: 2900 mm
Measurements depth: 2800 mm
Measurements height: 2800 mm
Machine weight: 7100 kg

Control Unit

Model: Mazatrol 640M Nexus
CNC main language: English
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece x: 1300 mm
Workpiece y: 510 mm
Workpiece z: 570 mm
Workpiece weight: 1200 kg

Table

Outer length: 1300 mm
Outer width: 550 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 350 mm
Type of tool holder: BT 40

Media

Main electronic connection: 415 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 20 Pieces ER32 tool holders

Additional Information

Machine history

Material type: Aluminium, plastic
End product: Pharma parts
Industries: Pharmaceutical parts

Machine Benefits

Technical Machine Benefits:
- - New spindle in 2014
- - New control key pad in 2017
- - New spindle motor in 2014
Qualitative Machine Benefits:
- - Annually serviced by mazak trained engineers
- - Excellent condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
