Mazak Nexus HCN 5000-II Horizontal Machining Center

Show in original language

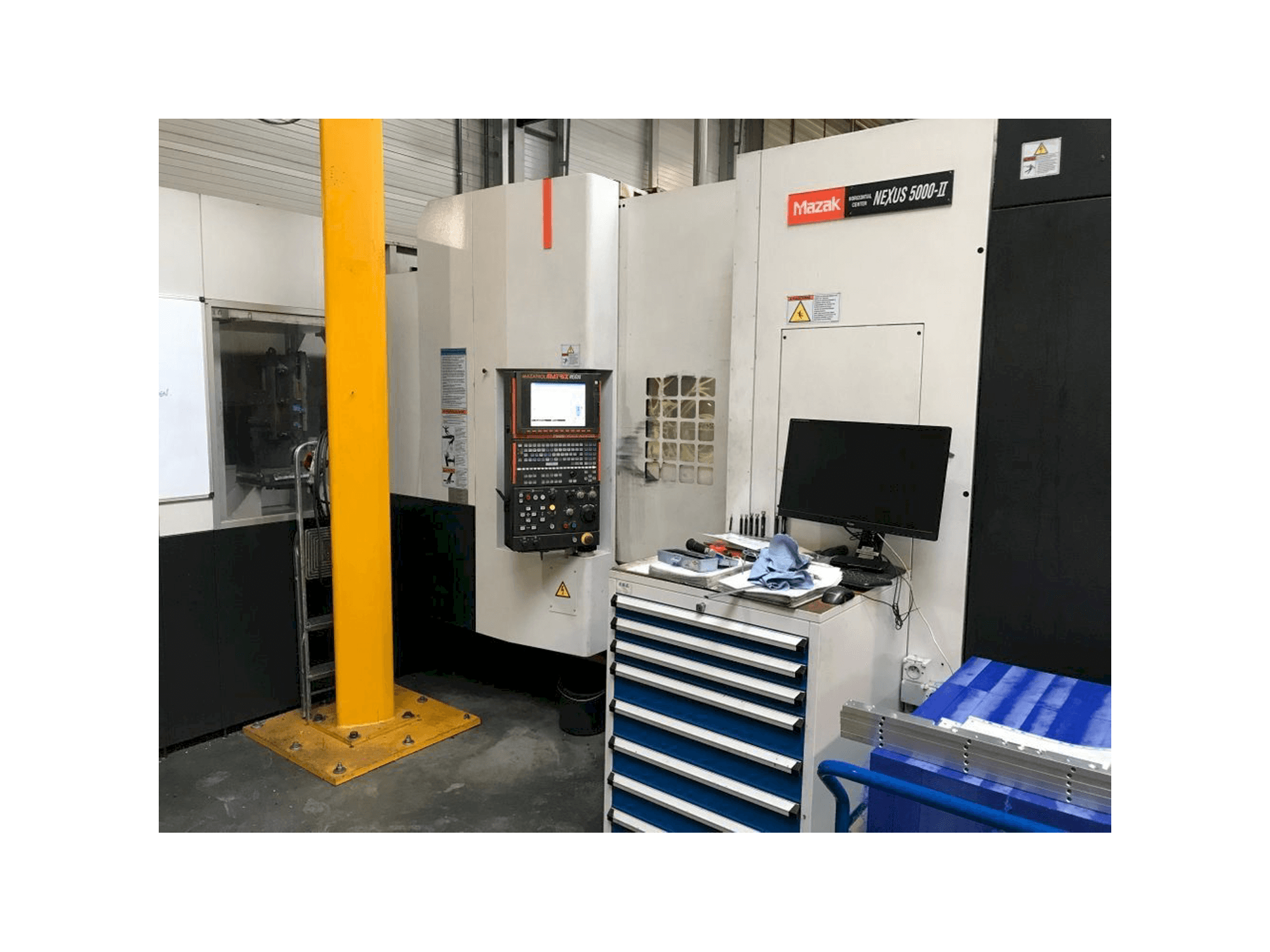

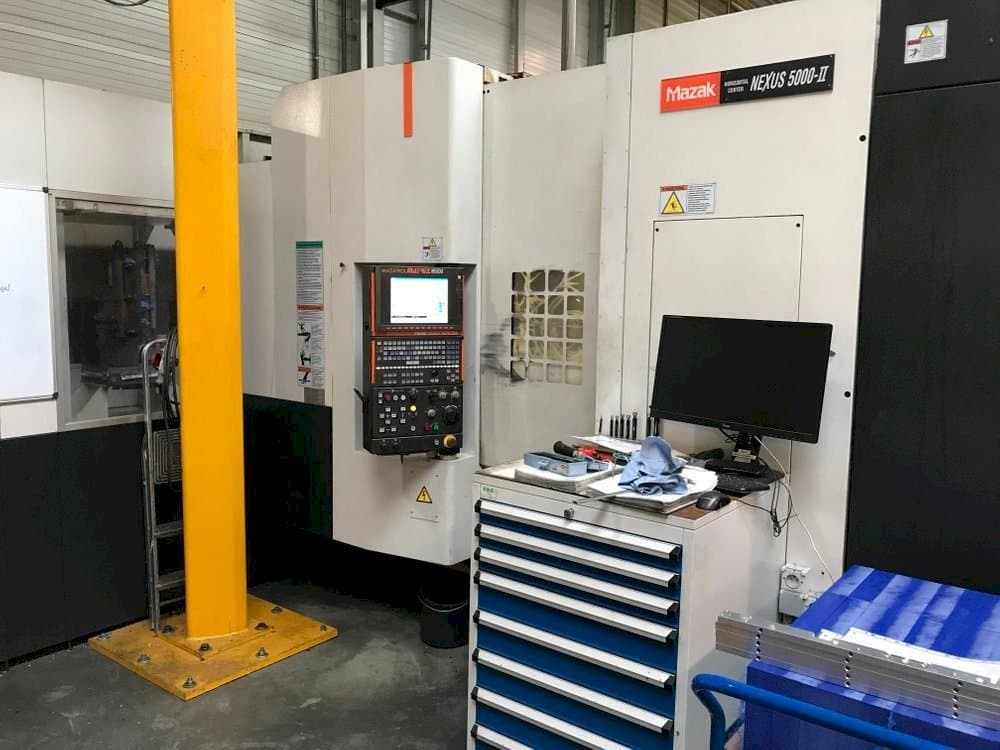

This Mazak Nexus HCN 5000-II Horizontal Machining Center in 2007. This 4 axis machine has 84700 power-on hours, of which 38000 hours are spindle hours. It operates through a Mazak Matrix Nexus control unit. This model counts with a spindle speed of 18000 rpm. A chip conveyor Mayfran CONSEP is included within the machine.

Overview

brand: Mazak
year: 2007
MODEL: Nexus HCN 5000-II
production hours: 84700
application type: Milling
Location: Belgium
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Nexus HCN 5000-II

Control Unit

Model: Matrix Nexus
Brand: MAZATROL

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 30 kW (40HP)
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 740 mm

Workpiece

Workpiece drm: 800 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 700 kg

Tools

Max weight: 12 kg
Max tool length: 95 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working light.
- - Number of pallets: 12
- - Workpiece height: 1000 mm
- - Number of tools: 160
- - Free adjecent pocket: 150 mm
- - Control- tool measuring system
- - B-rotary axis: 360° (0. 001[°])
- - Tool shaft revised big+ 40
- - Automatic feed control (afc)
- - Rapid traverse x/y/z: 60 m/min
Qualitative Machine Benefits:
- - Feed rate: 60 m/min
- - Network interface
- - Through spindle coolant
- - Chip conveyor mayfran consep
- - Transformer europe
- - Automatic tool measurement
- - Rs232c interface
- - Background tool check
- - Machining navigation (prediction-monitor-results)
- - Pcmcia interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
