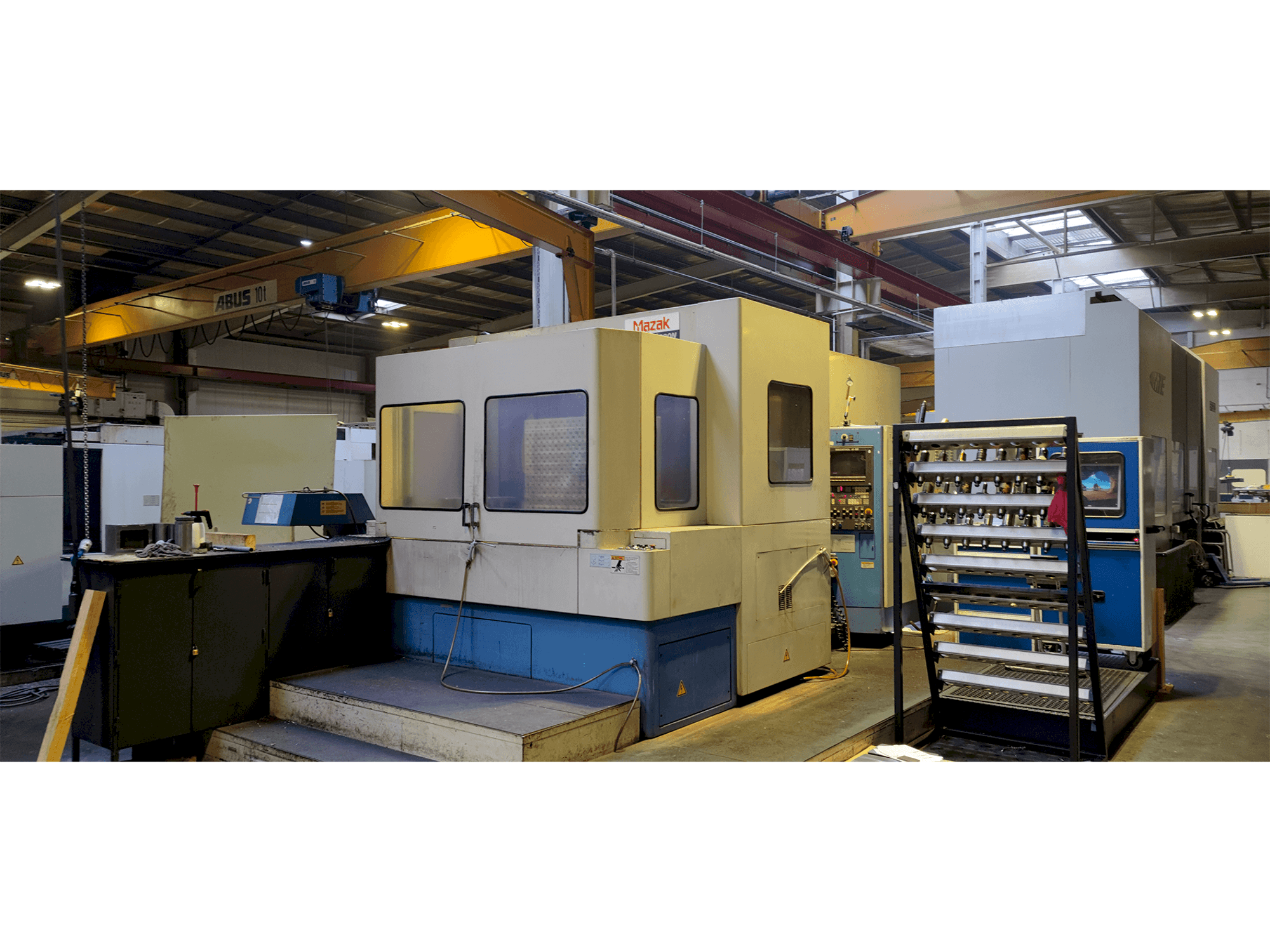

Front view of Mazak H-630 N machine
Front view of Mazak H-630 N machine

Mazak - H-630 NDE-MIL-MAZ-1994-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mazak H-630 N Horizontal Machining Center was built in Japan in 1994. It is operated through a Mazatrol M-32 control unit. This 4 axis machine works with a spindle speed range of 35 - 6000 rpm.

Overview

  • brand: Mazak
  • year: 1994
  • MODEL: H-630 N
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: MAZATROL

Technical Information - Mazak H-630 N

General Data

  • Measurements width: 5347 mm
  • Measurements depth: 3260 mm
  • Measurements height: 3220 mm
  • Machine weight: 17000 kg

Control Unit

  • Model: M-32
  • Brand: MAZATROL

Main drive

  • Number of spindles: 1
  • Spindle speed range: 35 - 6000 1/MIN
  • Spindle motor power: 18 - 22 kw
  • Tool taper: SK 50
  • Number of axis: 3

Movement

  • X-AXIS Rapid traverse: 24000 mm/min
  • Y-AXIS Rapid traverse: 24000 mm/min
  • Z-AXIS Rapid traverse: 20000 mm/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table cross travel, x-axis: 1000 mm/min
      • - Spindle head vertical stroke, y-axis: 800 mm
      • - Horizontal column stroke, z-axis: 750 mm
      • - Distance from the center of the spindle to the pallet surface: 50 - 850 mm
      • - Distance from spindle end to pallet center: 200 - 950 mm
      • - Dimensions of the pallet arrangement: 630 x 630 mm
      • - Number of pallets: 2
      • - Maximum loading weight for pallet: 1200 kg
      • - Cutting feed, x-axis: 8000 mm/min, y-axis: 8000 mm/min, z-axis: 8000 mm/min
      • - Index b-axis: 1º

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
