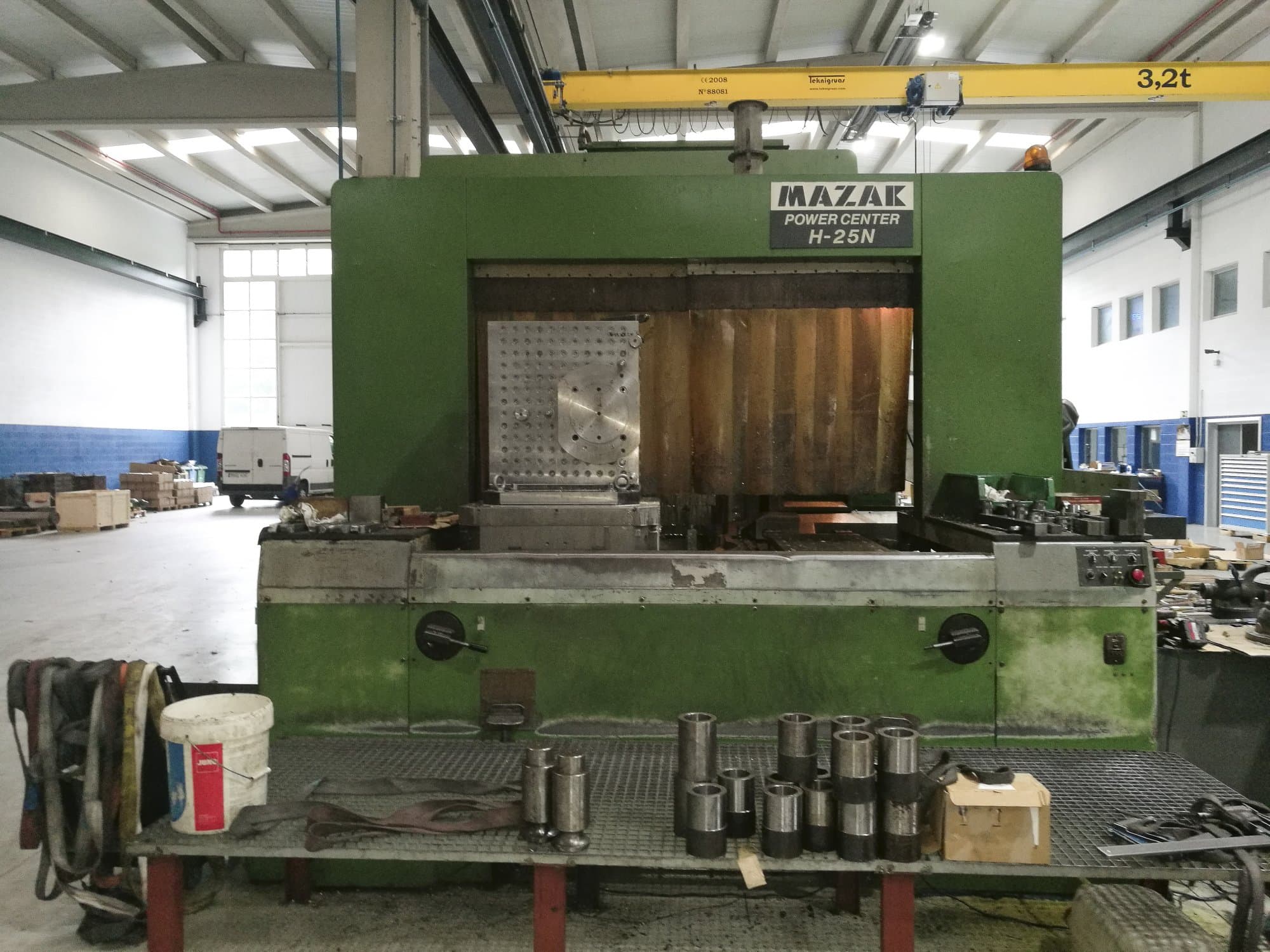

This Mazak H-25N Machining Center was manufactured in 1986 and has a production record of 60000 working hours ever since. Operated through a Mazatrol CAM-M2 Control unit, this machine includes as additional equipment a Renishaw automatic probe and an Antenna to communicate with the computer. With an incorporated 4th axis, this H-25N also comes with a Pallet changer.
Overview
- brand: Mazak
- year: 1986
- MODEL: H-25N
- production hours: 60000
- application type: Milling
- Location: Spain
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Mazak
Technical Information - Mazak H-25N
General Data
- Measurements width: 6250 mm
- Measurements depth: 4500 mm
- Measurements height: 3395 mm
- Machine weight: 15000 kg
Control Unit
- Brand: Mazatrol
- Model: CAM-M2
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 1/min
- Tool taper: ISO-50
Movement
- X-AXIS Movement: 1100 mm
- X-AXIS Working Feed: 5000 mm/min
- X-AXIS Rapid traverse: 12000 mm/min
- Y-AXIS Movement: 1070 mm
- Y-AXIS Working Feed: 5000 mm/min
- Y-AXIS Rapid traverse: 12000 mm/min
- Z-AXIS Movement: 800 mm
- Z-AXIS Working Feed: 5000 mm/min
- Z-AXIS Rapid traverse: 10000 mm/min
Tools
- Slots in storage: 80
- Max weight: 27 kg
- Max tool diameter: 240 mm
- Max tool length: 600 mm
Media
- Power consumption: 49.8 kVA
Additional equipment
- - Renishaw automatic probe
- - Antenna to communicate with the computer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
