Mazak - FF-660PL-MIL-MAZ-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

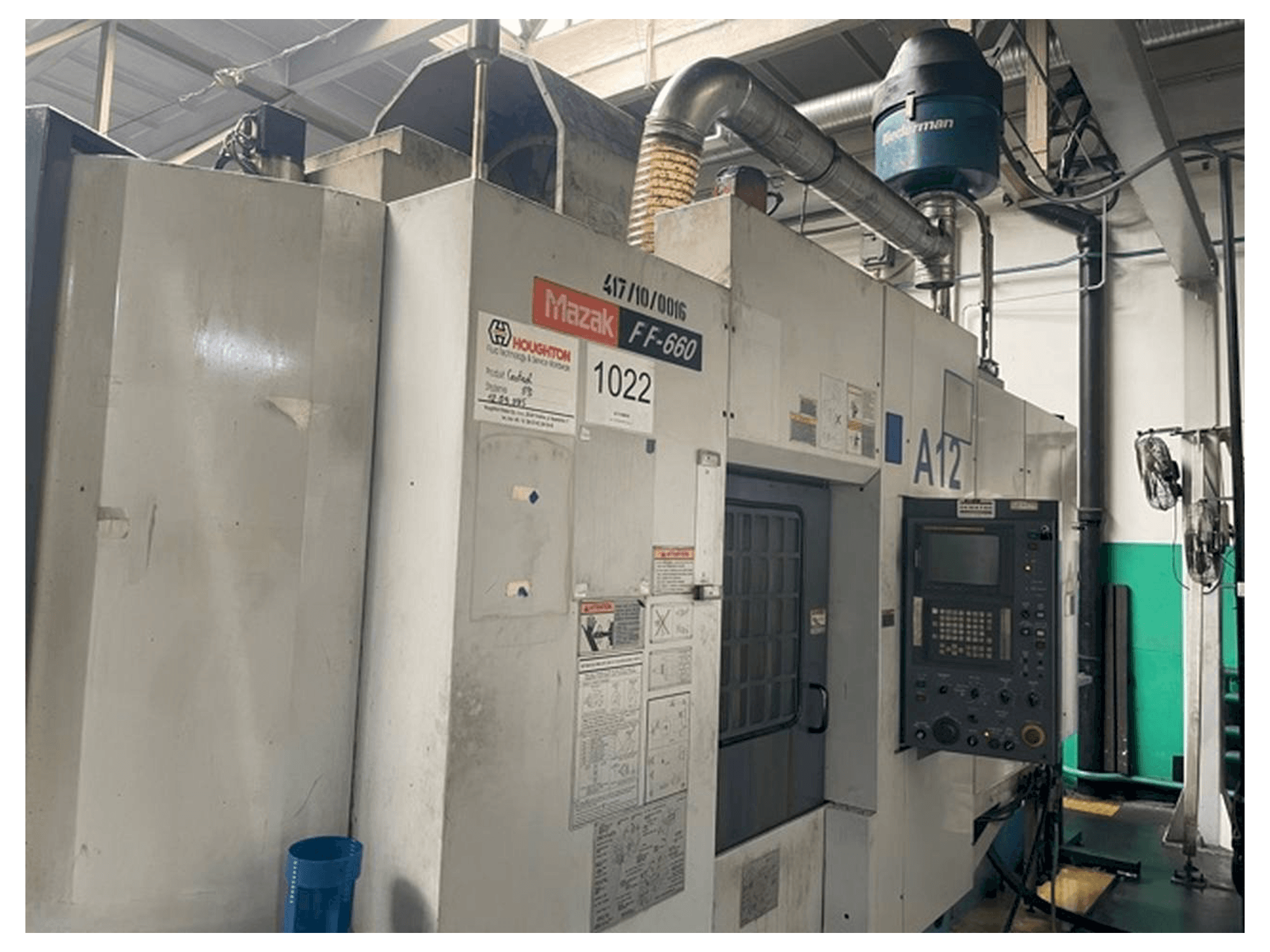

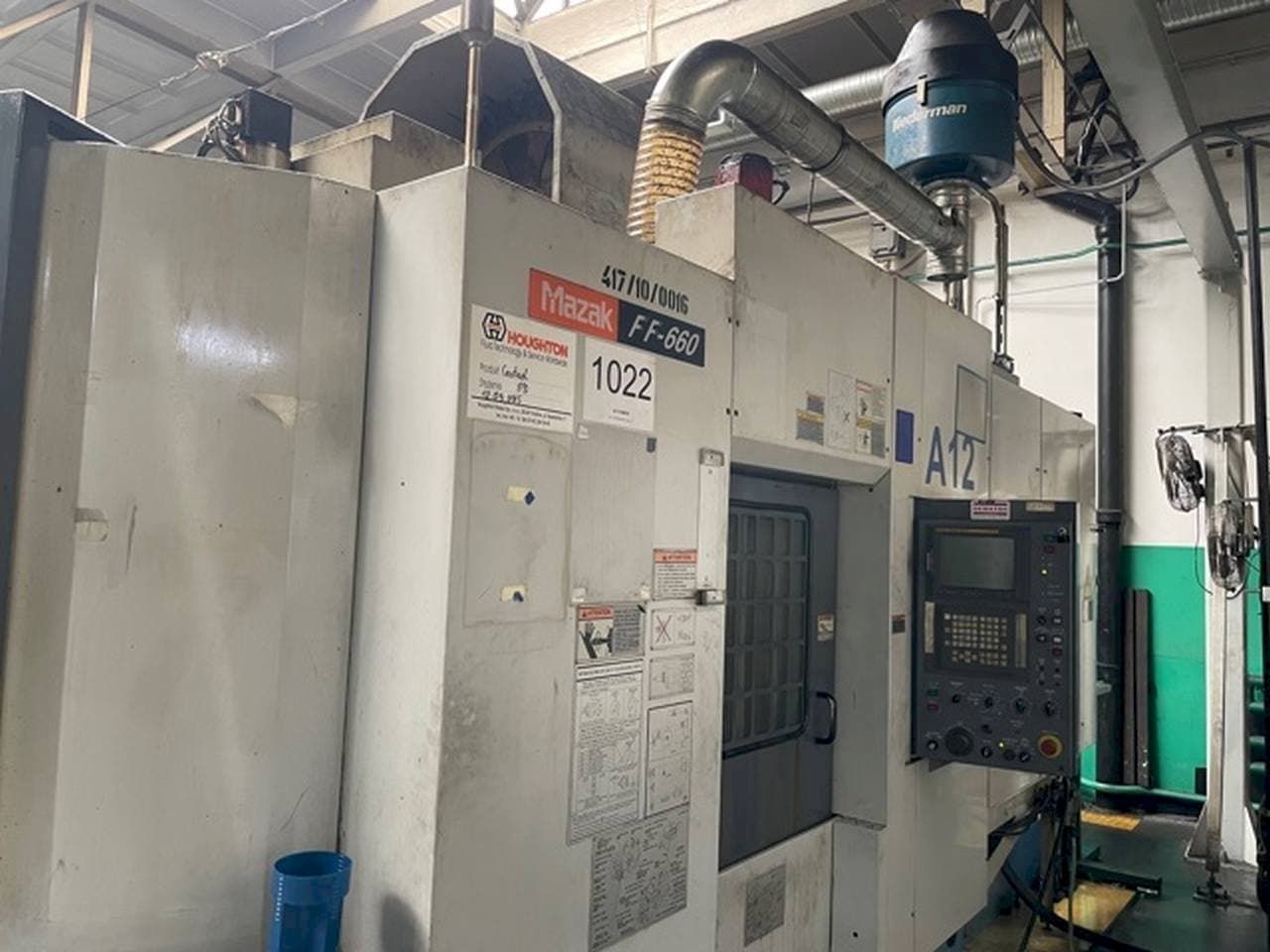

This Mazak FF-660 Horizontal Machining Center was manufactured in 1999 in Japan. It is equipped with a FANUC 18i-M control unit. This 3 axis machine works with a spindle speed up to 15000 rpm and a table dimension 500 x 500 mm. It is in good working condition and ready for tests.

Overview

brand: Mazak
year: 1999
MODEL: FF-660
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Mazak FF-660

General Data

Measurements width: 4567 MM
Measurements depth: 1990 MM
Measurements height: 3035 mm
Machine weight: 9500 kg

Control Unit

Brand: FANUC
Model: 18i-M

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 15 kW
Tool taper: SK40

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 660 mm

Table

Outer length: 500 MM
Outer width: 500 mm

Turret

Number of tool slots: 24 pcs

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Atc tool changer 24 pcs.
- - Pallet changer: 2 pallets
Qualitative Machine Benefits:
- - Machine in good working condition
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
