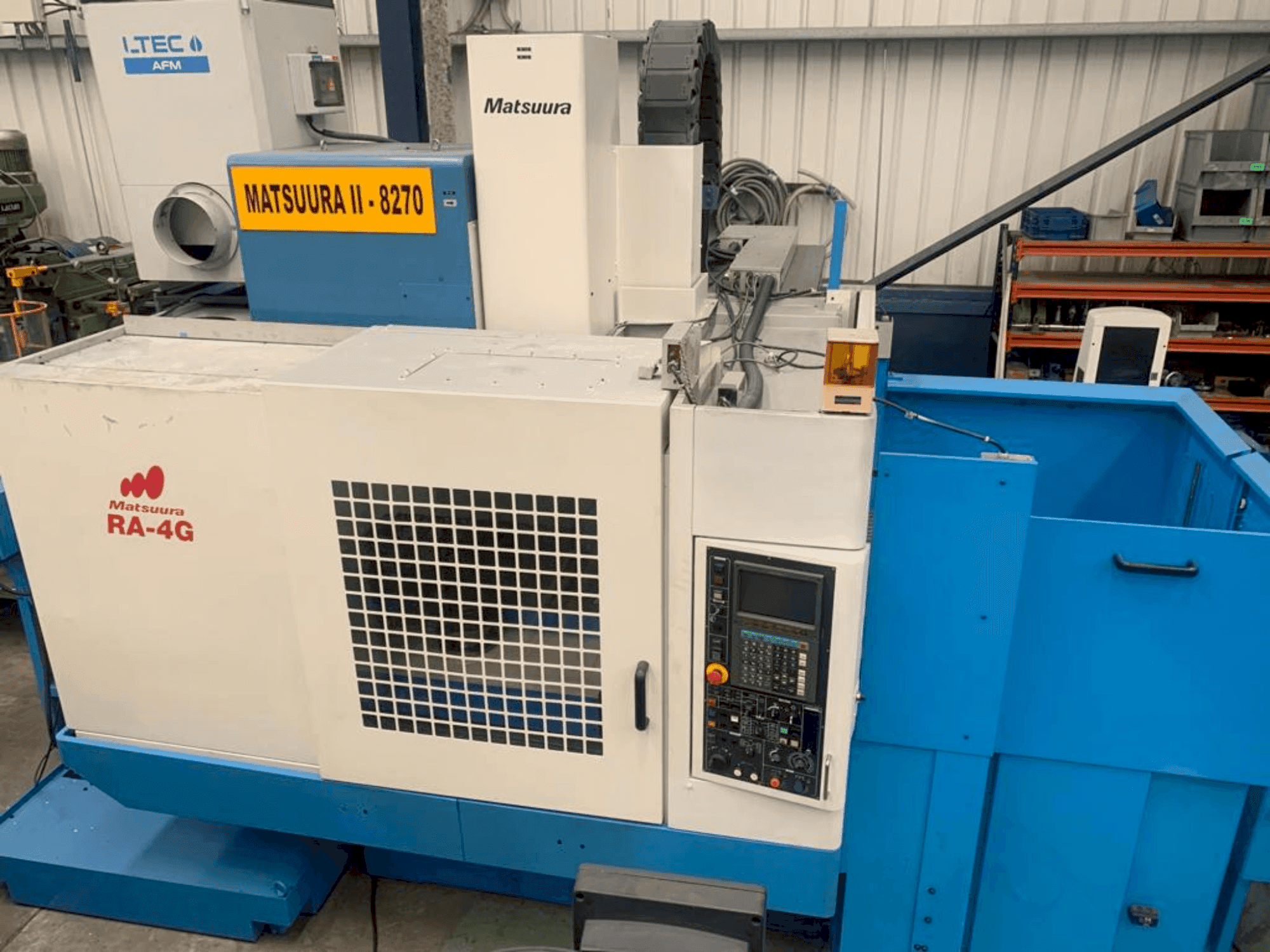

Front view of Matsuura RA-4G machine
Front view of Matsuura RA-4G machine

Matsuura - RA-4GES-MIL-MAT-1998-00001

Rs. 1,852,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Matsuura RA-4G Machining Center was manufactured in 1998. It features a YASNAC control, with X-axis travel of 1020 mm, Y-axis travel of 550 mm, and Z-axis travel of 510 mm. The machine supports a maximum pallet load of 500 kg and offers a spindle speed range of 30-8000 rpm, enhanced by internal and high-pressure cooling systems. Ideal for robust machining needs, the Matsuura RA-4G machine we have for sale. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 1998
  • MODEL: RA-4G
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - Matsuura RA-4G

    Main drive

    • Spindle speed range: 30-8000 1/MIN

    Movement

    • X-AXIS Movement: 1020 mm
    • Y-AXIS Movement: 550 mm
    • Z-AXIS Movement: 510 mm

    Table

    • Outer length: 1000 mm
    • Outer width: 490 mm
    • Min distance between vertical spindle and table: 150 mm
    • Max distance between vertical spindle and table: 660 mm
    • Table load: 500 kg

    Media

    • Internal cooling: Yes

      Additional equipment

      • - High-pressure cooling pump

      Additional Information

        Machine Benefits

        • Technical Machine Benefits:
          • - Distance between the centre of the table and the column guides : 285-835 mm
          • - Distance between the centre of the spindle and the column guides : 560 mm

        Extra information

        • - Machine still under power

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

      Your account manager:

      Sergi Guardia

      Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

      get in contact

      Payment Terms

      • Payment in advance

      • Asset Financing
