Matsuura MAM72-63V horizontal machine center

Show in original language

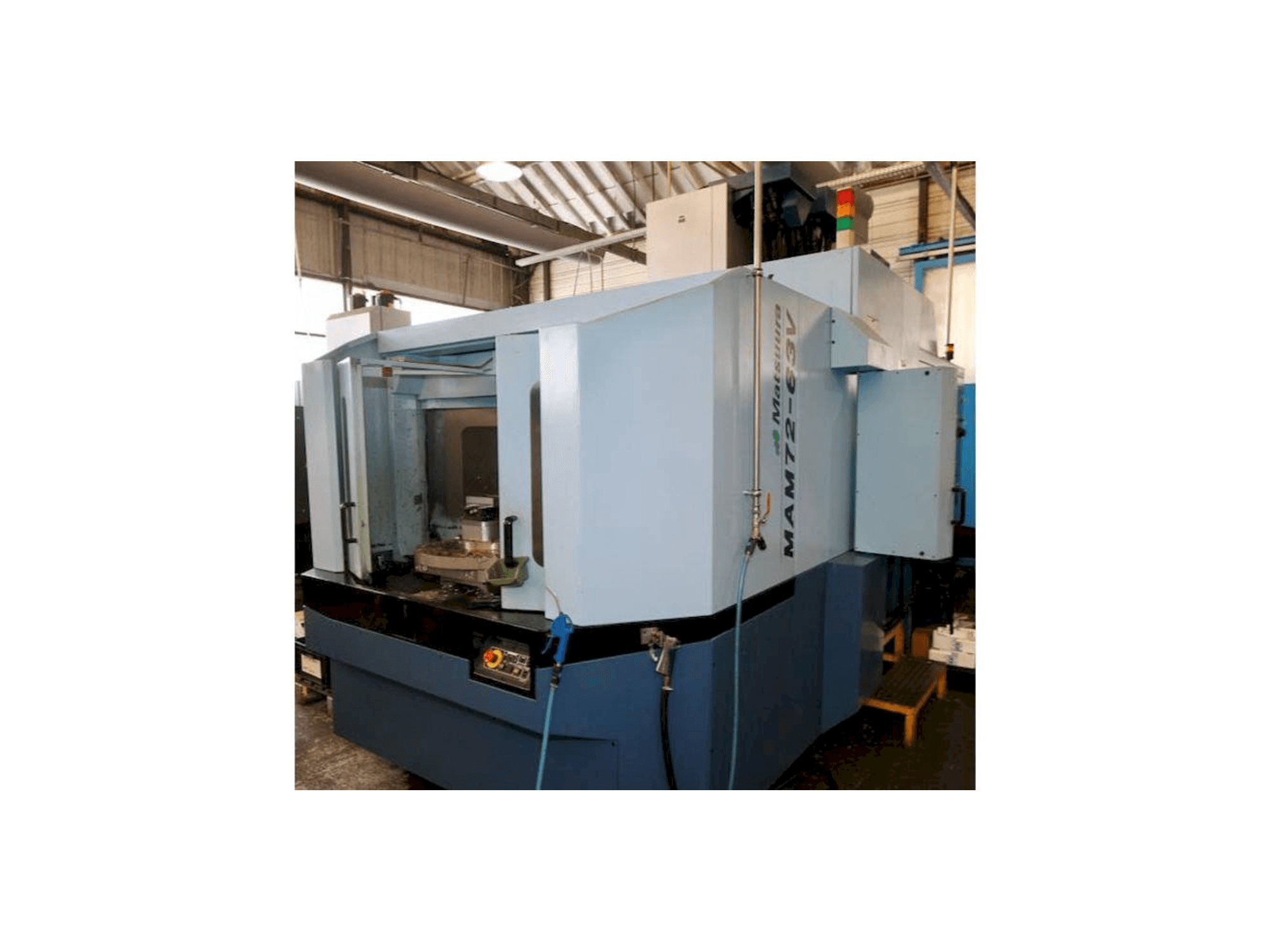

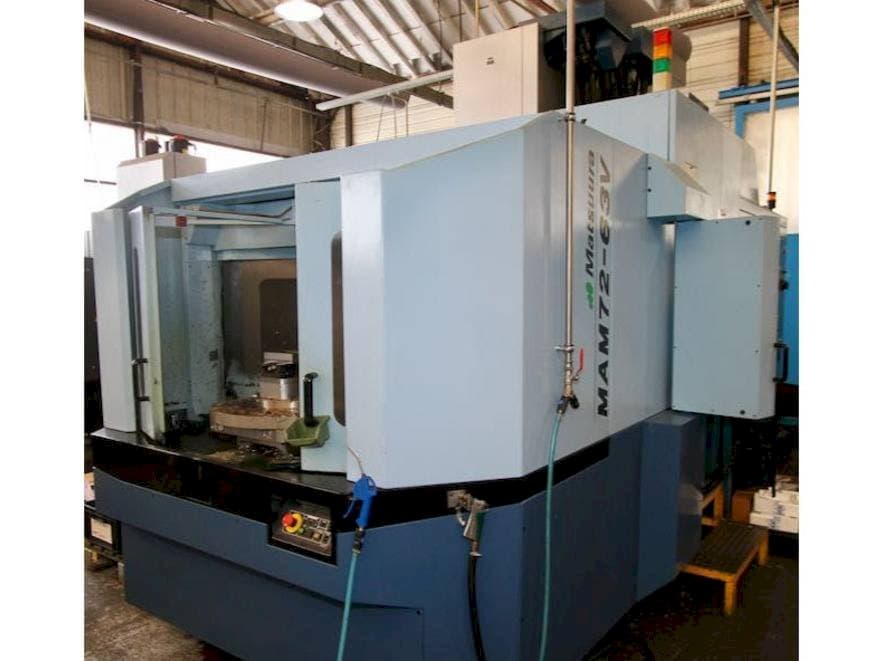

This Matsuura MAM72-63V horizontal machine center was made in the year 2007. It is equipped with a Fanuc 30 control unit. The machine has a spindle speed of 20000 rpm and maintenance is fully done.

Overview

brand: Matsuura
year: 2007
MODEL: MAM72-63V
application type: Milling
Location: France
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Matsuura MAM72-63V

Control Unit

Model: 30
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 845 mm
Z-AXIS Movement: 610 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Room size: max diameter 800 height 450 mm
- - Spindle bt40, 108 nm
- - Matrix store 150 workstations
- - Watering 50 bar tank 630l
- - Special aluminum chip conveyor with filtration and double sieve
- - 2 pallets (pc2)
- - Machine that can be easily robotised study available
Qualitative Machine Benefits:
- - Maintenance is fully done

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
