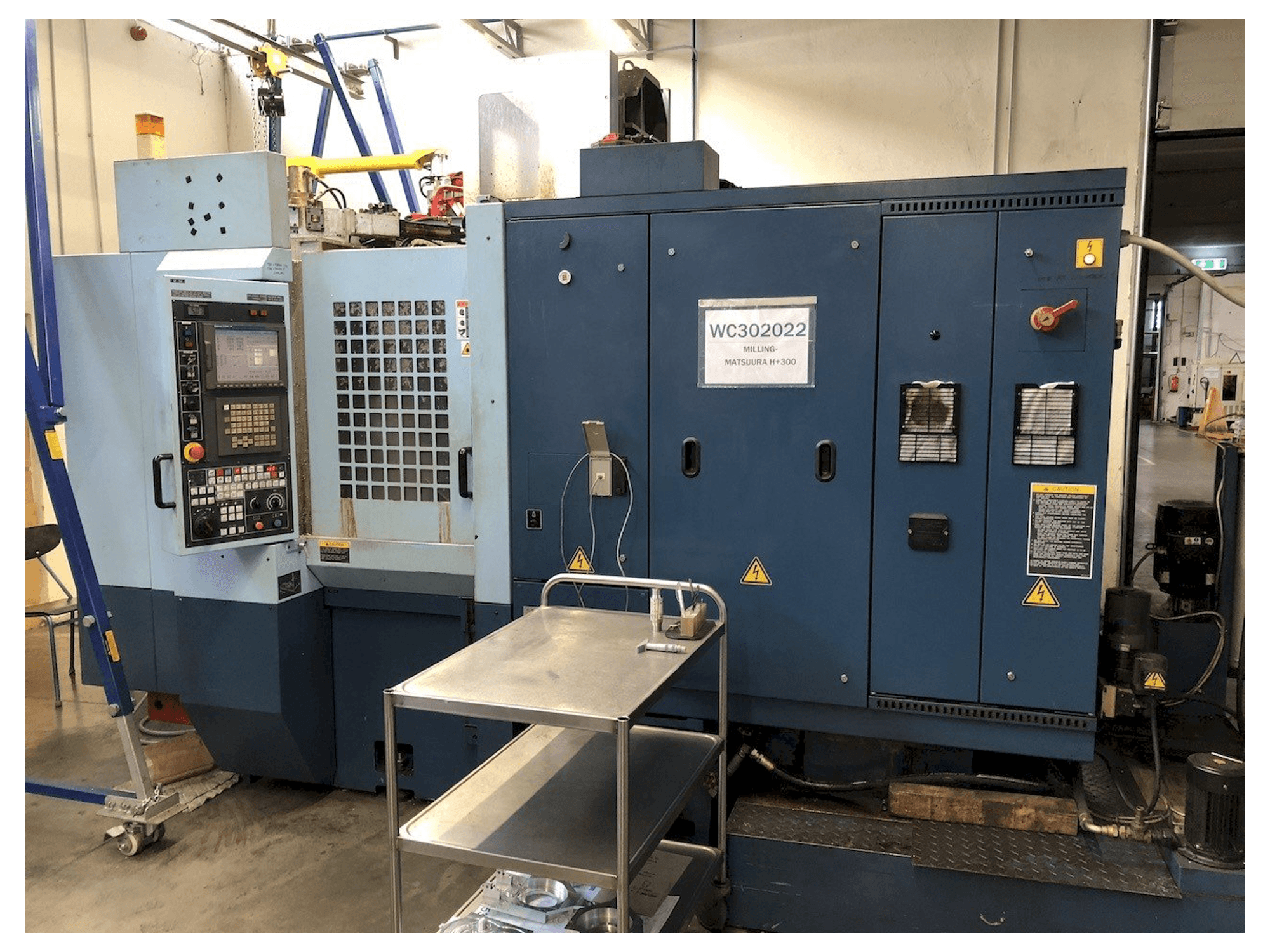

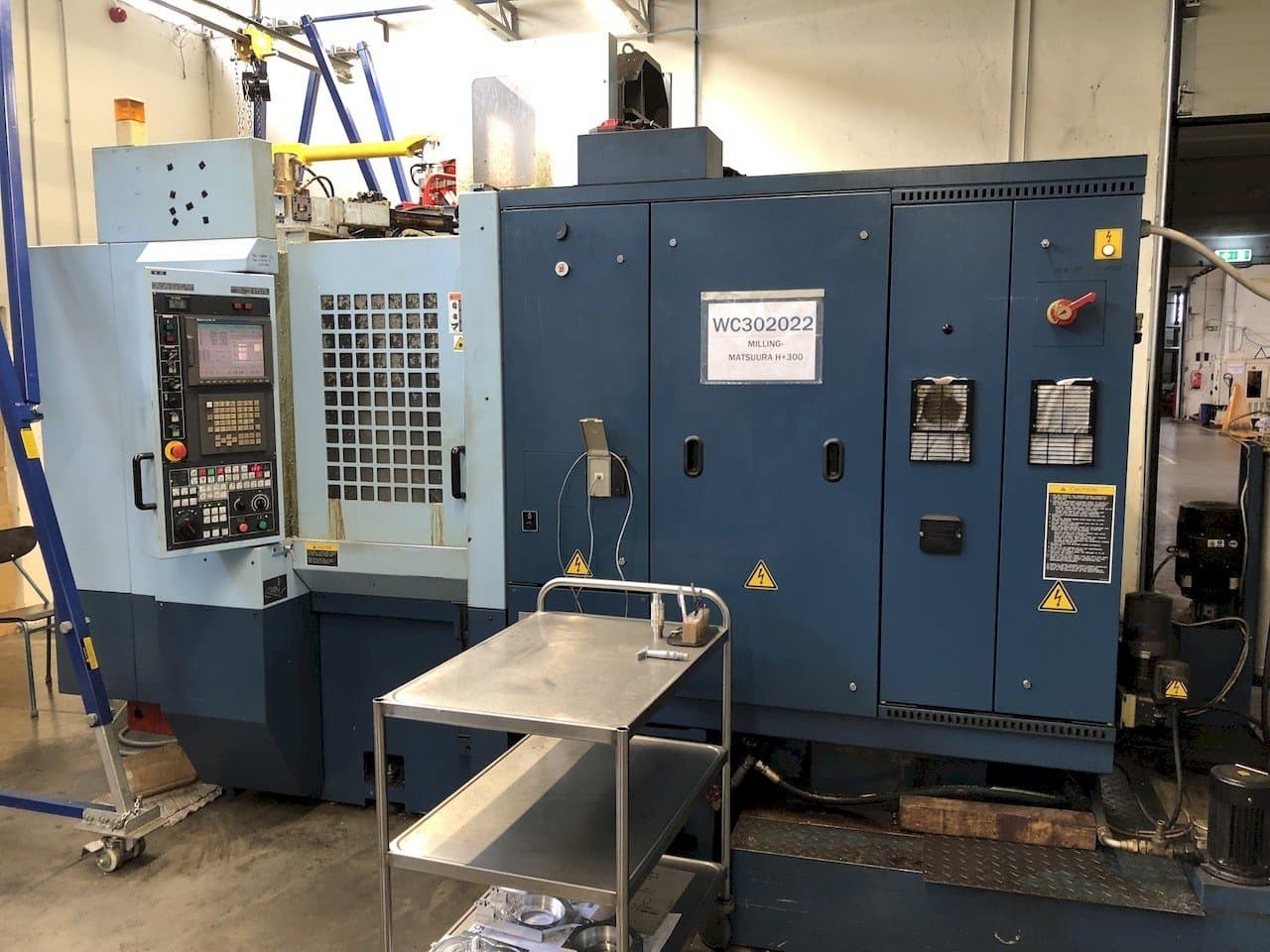

Matsuura H Plus-300 Milling Machine

Show in original language

This Matsuura H Plus-300 Milling Machine was manufactured in Japan in 2004. Operated through a control unit of the same brand, this machine counts with a spindle speed range of 50-15000 rpm.

Overview

brand: Matsuura
year: 2004
MODEL: H Plus-300
production hours: 800
application type: Milling
Location: Estonia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MATSUURA

Technical Information - Matsuura H Plus-300

General Data

Measurements width: 3620 mm
Measurements depth: 1522 mm
Measurements height: 2462 mm
Machine weight: 7000 kg

Control Unit

Brand: MATSUURA

Main drive

Spindle speed range: 50-15000 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 300 mm
Outer width: 300 mm

Tools

Slots in storage: 51
Max weight: 8 kg
Max tool diameter: 150 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V
Power consumption: 38 kVA
Chip conveyor: Yes

Additional equipment

- manipulator Dalmec (upon request)

Additional Information

Machine history

Material type: Carbon steel
Material thickness: 3 mm
Industries: Telecommunications

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
