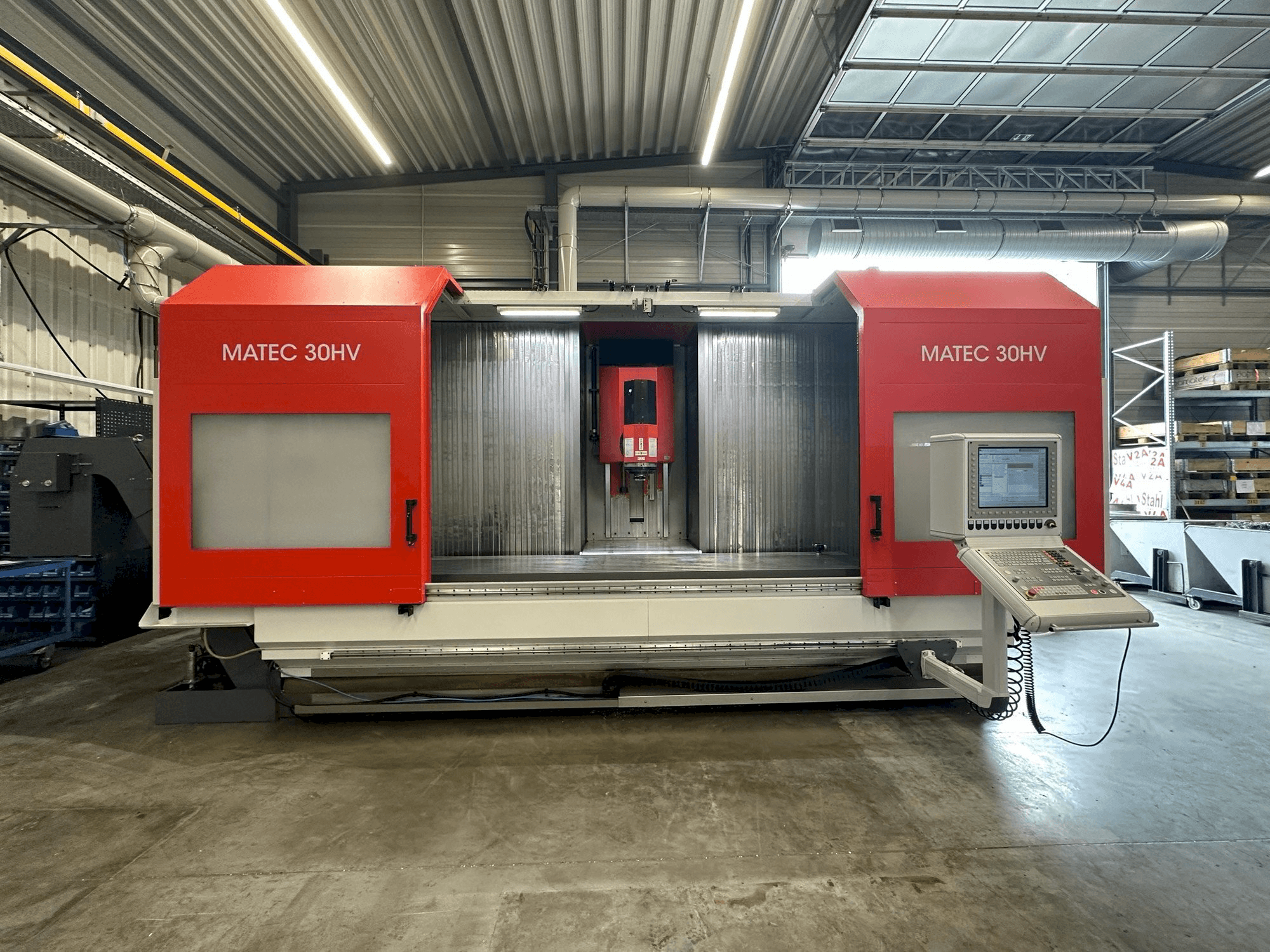

Matec 30HV Vertical Machining centre

Show in original language

This Matec 30HV Vertical Machining Centre was manufactured in the year 2018 in Germany and has 21719 production hours. It is equipped with a HEIDENHAIN TNC 640 control unit and has 4 axis (4 axis, swivel head +/- 105° with 1° position indexing). The machine has a 12,000 1/min motor spindle with 30 kW (40% ED), HSK63, a tool magazine with 48 stations and internal cooling with 70 bar (paper belt filter) and external nozzles on headstock as second coolant circuit with 20 bar. It comes with a chip conveyor (discharge left, height 1130 mm), electronic handwheel and RENISHAW measuring probe. See original delivery note as PDF (German) attached to see all standard and extra options.

Overview

brand: Matec
year: 2018
MODEL: 30HV
production hours: 21719
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Matec 30HV

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-12000 rpm 1/MIN
Spindle motor power: 11-16 kW
Tool taper: HSK63
Number of axis: 4

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm (H) / 700mm (V)

Tools

Number of stations: 48

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Chip Conveyor
- Internal coolant supply 70 bar (paper belt filter) // External nozzles on the headstock 20 bar - 2nd coolant circuit (high-pressure pump) // Tank capacity paper filter system 900 l
- 3D measuring probe (RENISHAW) with radio signal transmission control, incl. control software
- Electronic handwheel (portable)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ejection height: 1130 mm (surcharge for modified chip conveyor ejection height // discharge height 1130 mm instead of 850 mm)
- - 4 axis, swivel head +/- 105° with 1° position indexing
- - Tool magazine with 48 stations
- - Work area cladding with roof
- - Bellows with steel slats
- - Direct path measuring system x-,y-,z-axis
- - Flushing gun
- - Central oil lubrication
- - Work area lighting
- - Direct measuring system +/- 3 arc seconds
Qualitative Machine Benefits:
- - Motor spindle 12,000 1/min motor spindle with 30 kw (40% ed)
- - Discharge chip conveyor left

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Matec 30HV (2018) - Official Delivery Note (GERMAN).pdf
