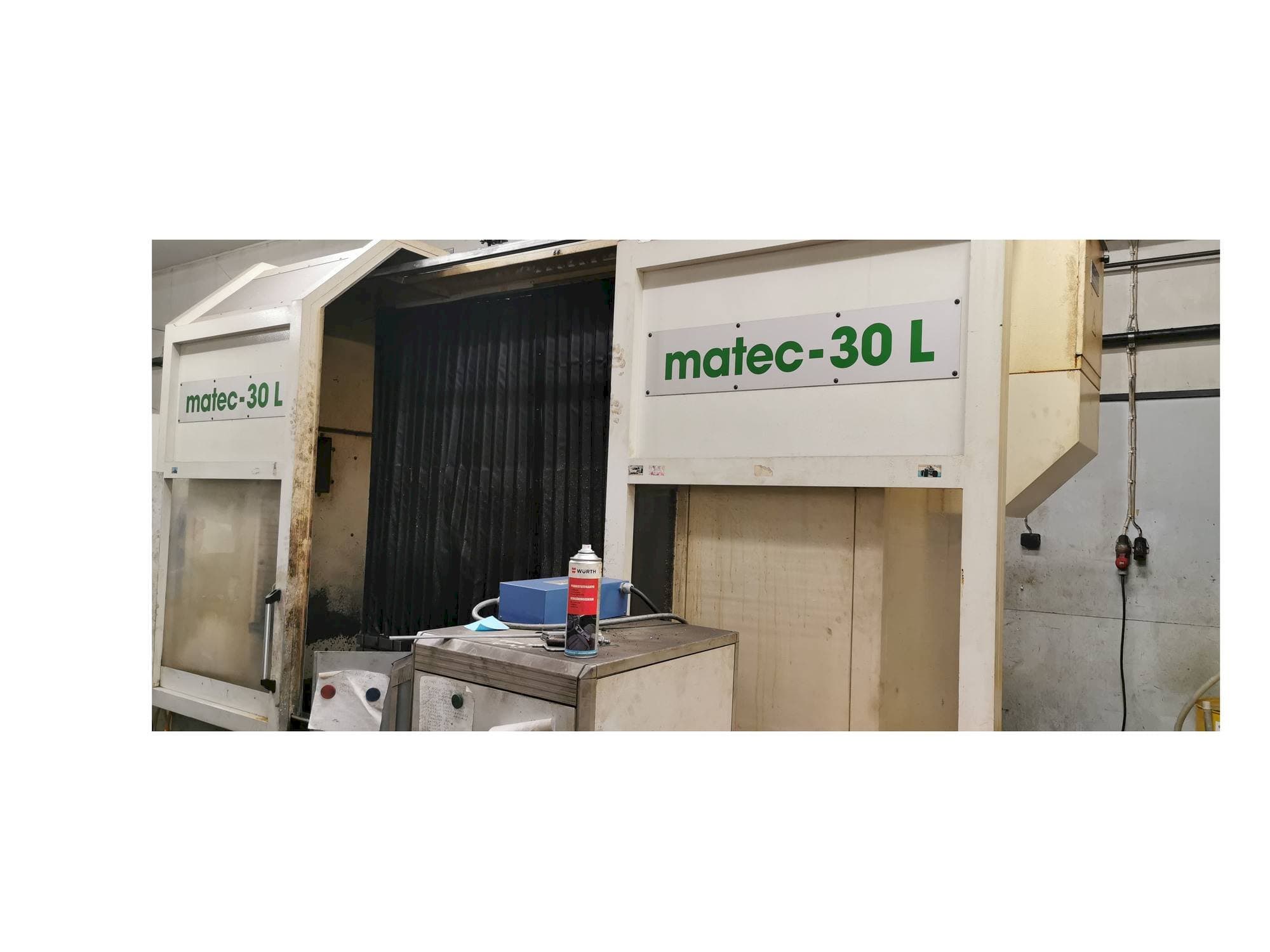

This Matec 30 L Vertical Machining Center was manufactured in Germany in 1996. It counts with 14869 production hours. This 3 axis machine is equipped with a HEIDENHAIN TNC 426 control unit.

Overview

brand: Matec
year: 1996
MODEL: 30 L
production hours: 14869
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Matec 30 L

General Data

Measurements width: 6000 mm
Measurements depth: 3500 mm
Measurements height: 3200 mm
Machine weight: 12000 Kg

Control Unit

Model: TNC 426
CNC main language: Finnish
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 400 mm

Tools

Slots in storage: 36
Type of tool holder: SK 40

Media

Main electronic connection: 400 V
Power consumption: 25 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
