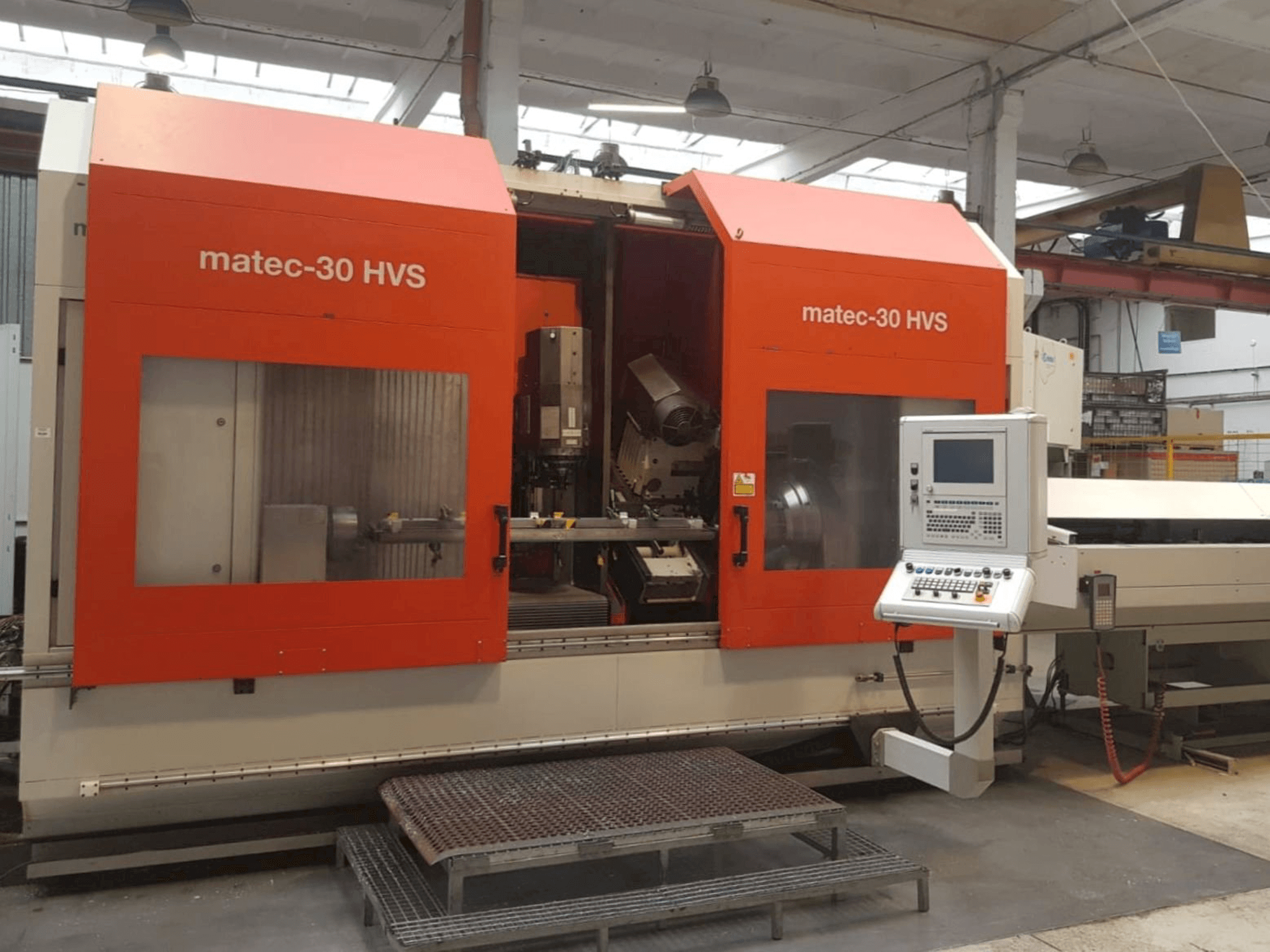

This Matec 30 HVS Machining center and Turning milling center was manufactured in Germany in the year 2008. It is equipped with a Bosch Rexroth MTX OSA3 control unit. This 7 axis machine operates with a spindle speed up to 8000 rpm. It is in very good working conditions and ready for tests.

Overview

brand: Matec
year: 2008
MODEL: 30 HVS
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold
control unit brand: BOSCH

Technical Information - Matec 30 HVS

General Data

Measurements width: 3645 mm
Measurements depth: 3305 mm
Measurements height: 3360 mm

Control Unit

Model: Rexroth MTX OSA3
Brand: BOSCH

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 34 kW (40% DC), 24 kW (100% DC)
Number of axis: 7

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 600 mm

Turret

Number of tool slots: 128 pcs

Tools

Type of tool holder: HSK 63

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 65 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z (h) - 800 mm
- - Z (v) - 700 mm
- - Spindle torque: 216 nm (40% dc), 153 nm (100% dc)
Qualitative Machine Benefits:
- - Machine in very good working condition and ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
