Matec 30 HV Universal Machining Center

Show in original language

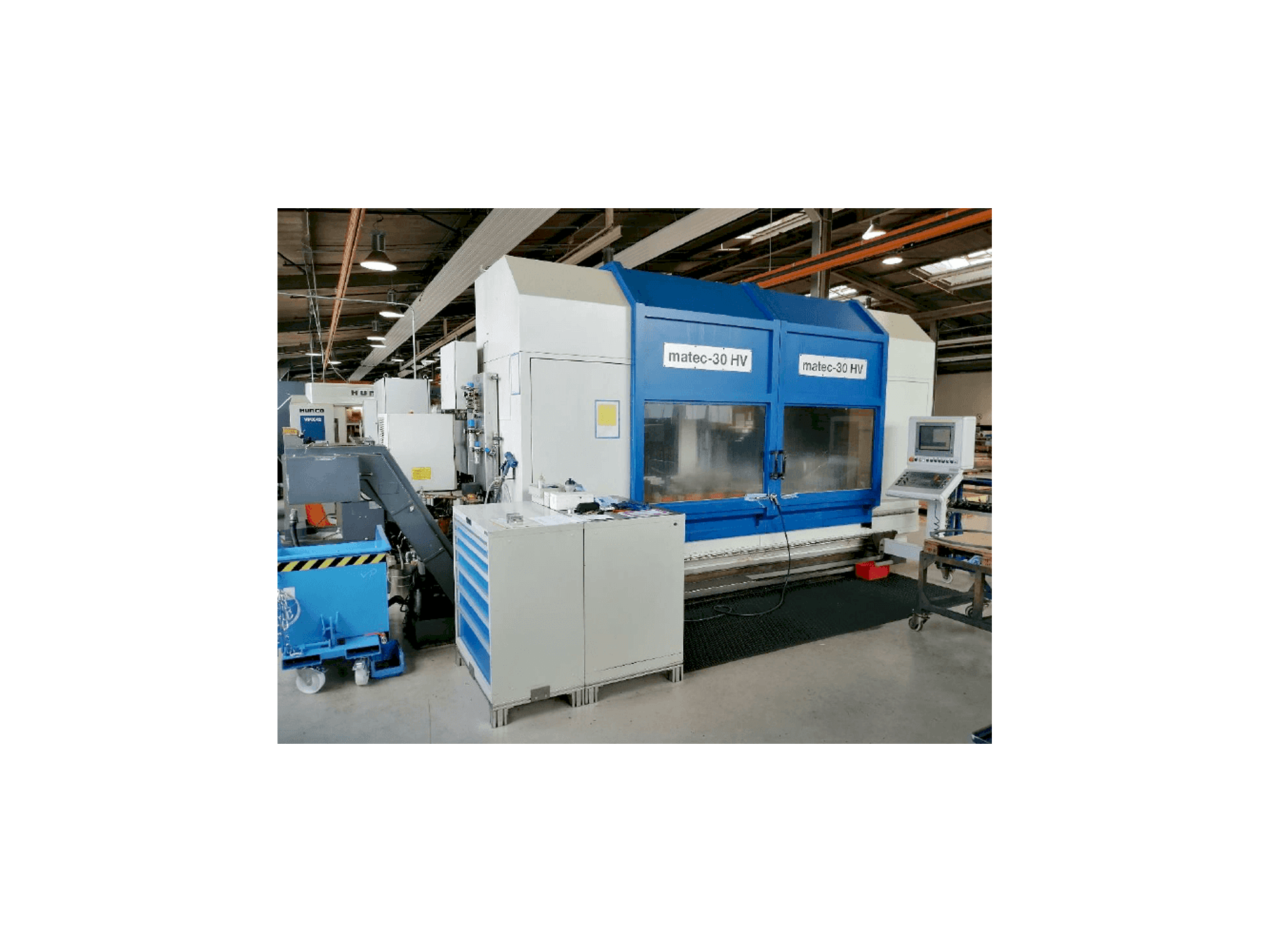

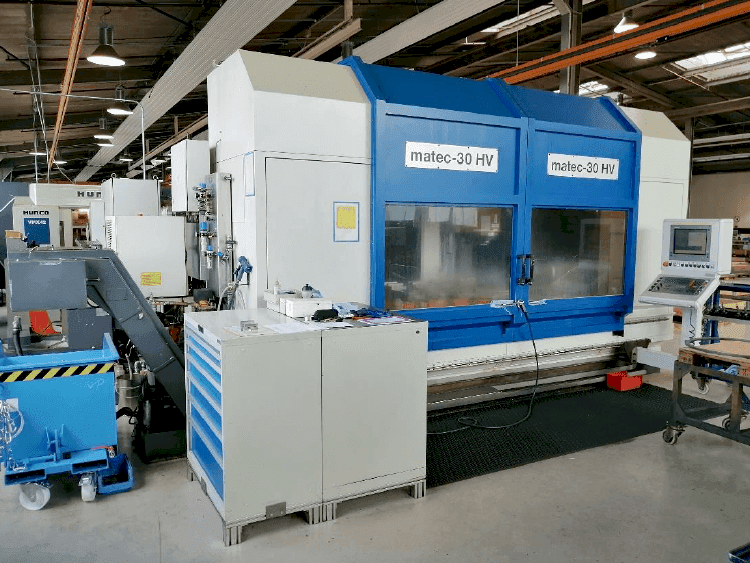

This Matec 30 HV Universal Machining Center was built in Germany in 2004. Equipped with a HEIDENHAIN iTNC 530 Control unit, this machine is capable of working with a spindle speed up to 9000 rpm.

Overview

brand: Matec
year: 2004
MODEL: 30 HV
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV

General Data

Measurements width: 6650 mm
Measurements depth: 5080 mm
Measurements height: 3190 mm
Machine weight: 19000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-9000 1/MIN
Spindle motor power: 16 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 2x1220 mm
Outer width: 2x1000 mm

Tools

Max tool diameter: 130 mm
Type of tool holder: SK 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
