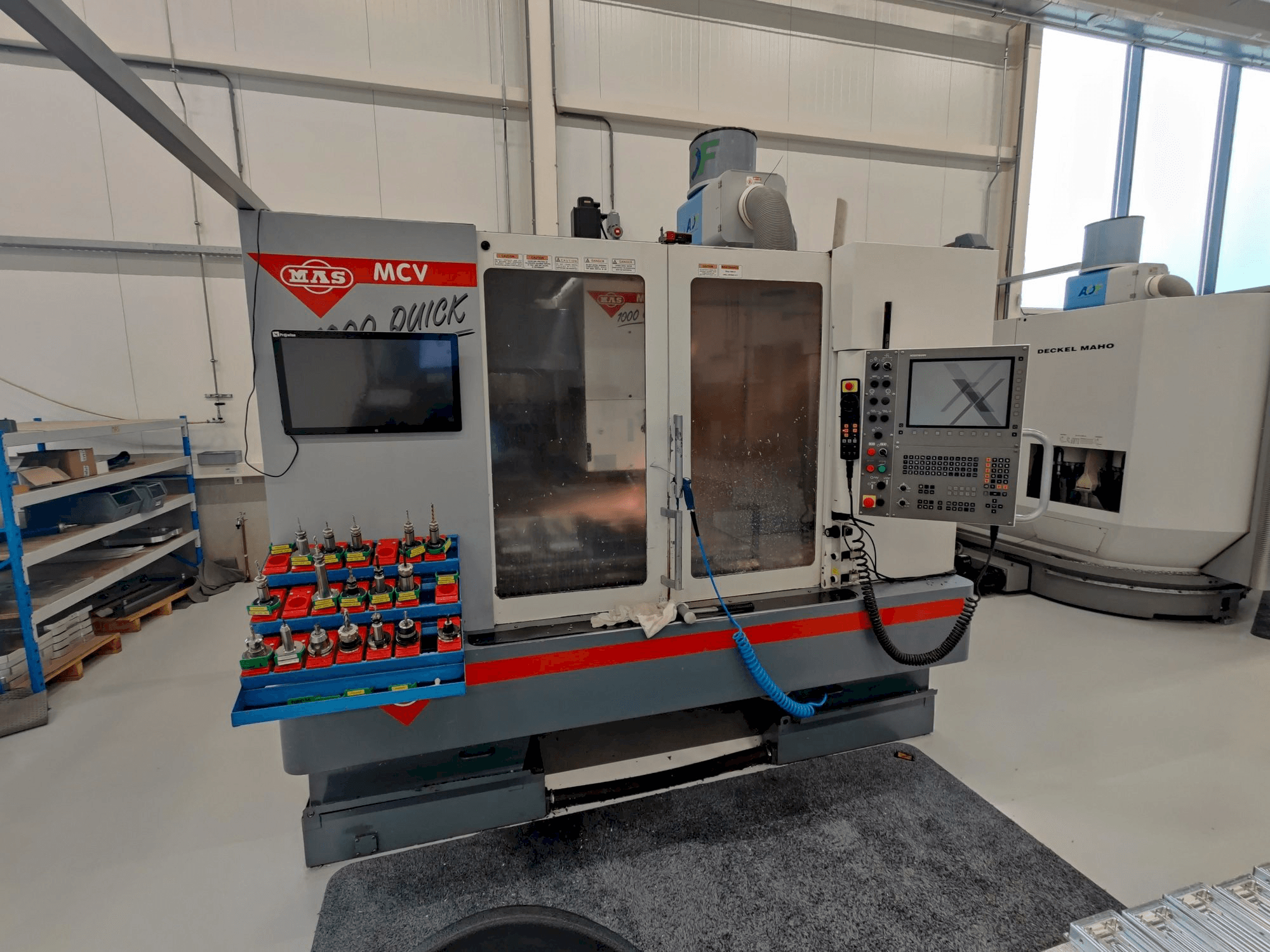

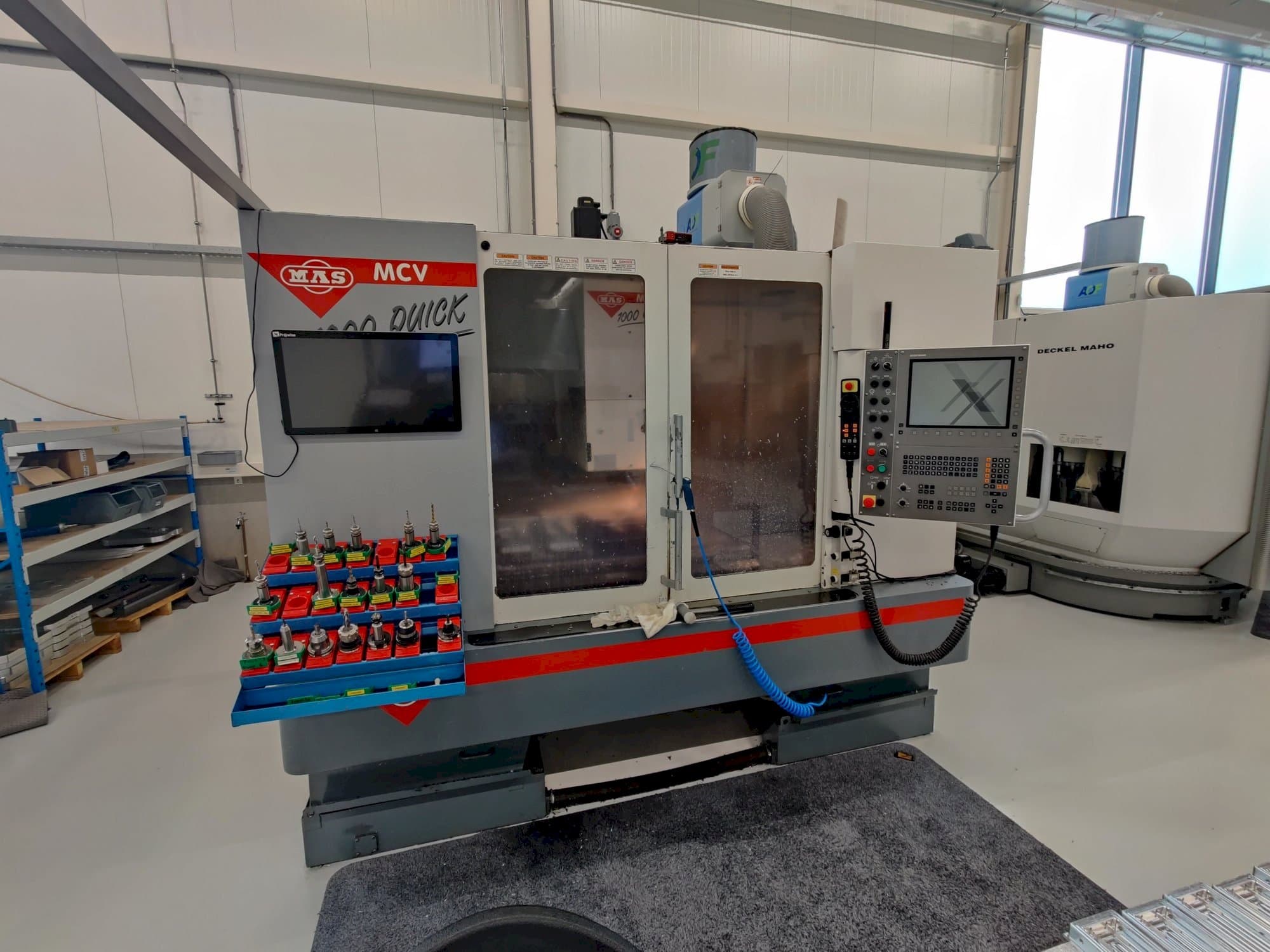

MAS MCV 1000 Quick Vertical Machine Center

Show in original language

This MAS MCV 1000 Quick Vertical Machine Center was made in Czech Republic in 2004. This 3 axis machine has been working for 4275 hours and is operated through a Heidenhain control unit. It works with a spindle speed up to 10000 rpm. Excl extraction unit.

Overview

brand: MAS
year: 2004
MODEL: MCV 1000 Quick
production hours: 4275
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MAS MCV 1000 Quick

General Data

Measurements width: 2700mm
Measurements depth: 3080mm
Measurements height: 2940 mm
Machine weight: 5500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 660 mm

Tools

Number of index: 20
Type of tool holder: SK40

Additional Information

Extra information

- Excl extraction unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
