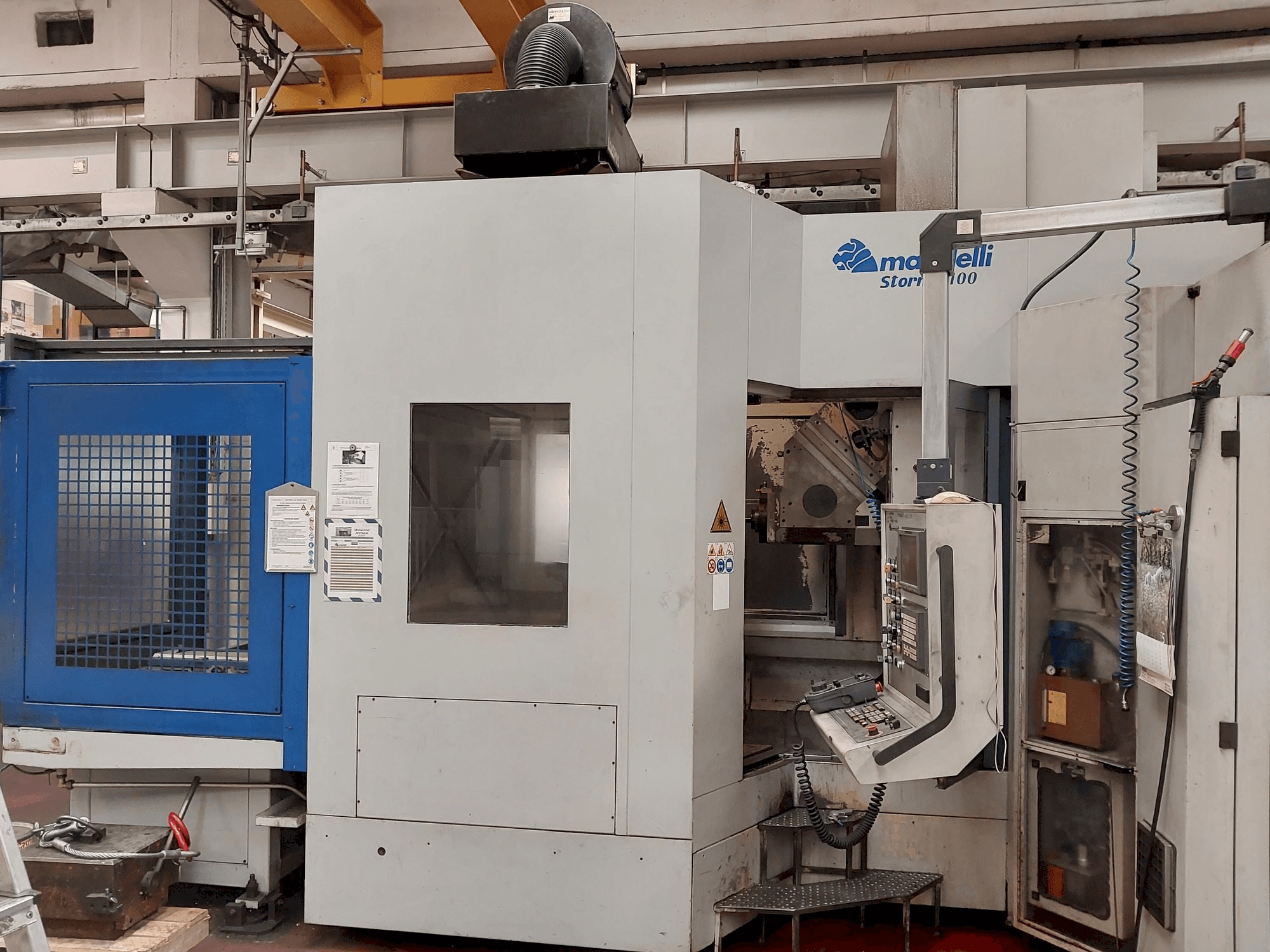

Mandelli Storm 1100 Horizontal Machining center

Show in original language

This Mandelli Storm 1100 Horizontal Machining center was manufactured in the year 2000 in Italy. It is equipped with a Fanuc 160i-M control unit and has 3 axis. The machine has a spindle speed of 32000 rpm.

Overview

brand: Mandelli
year: 2000
MODEL: storm 1100
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Mandelli storm 1100

Control Unit

Model: 160i-M
Brand: FANUC

Main drive

Spindle speed range: 32000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 1050 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary table
- - Tool changer
- - Ball screw diameter: 63 mm
- - Ball screw pitch: 20 mm
- - Max height workpiece: 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
