Makino PS95 vertical machining center

Show in original language

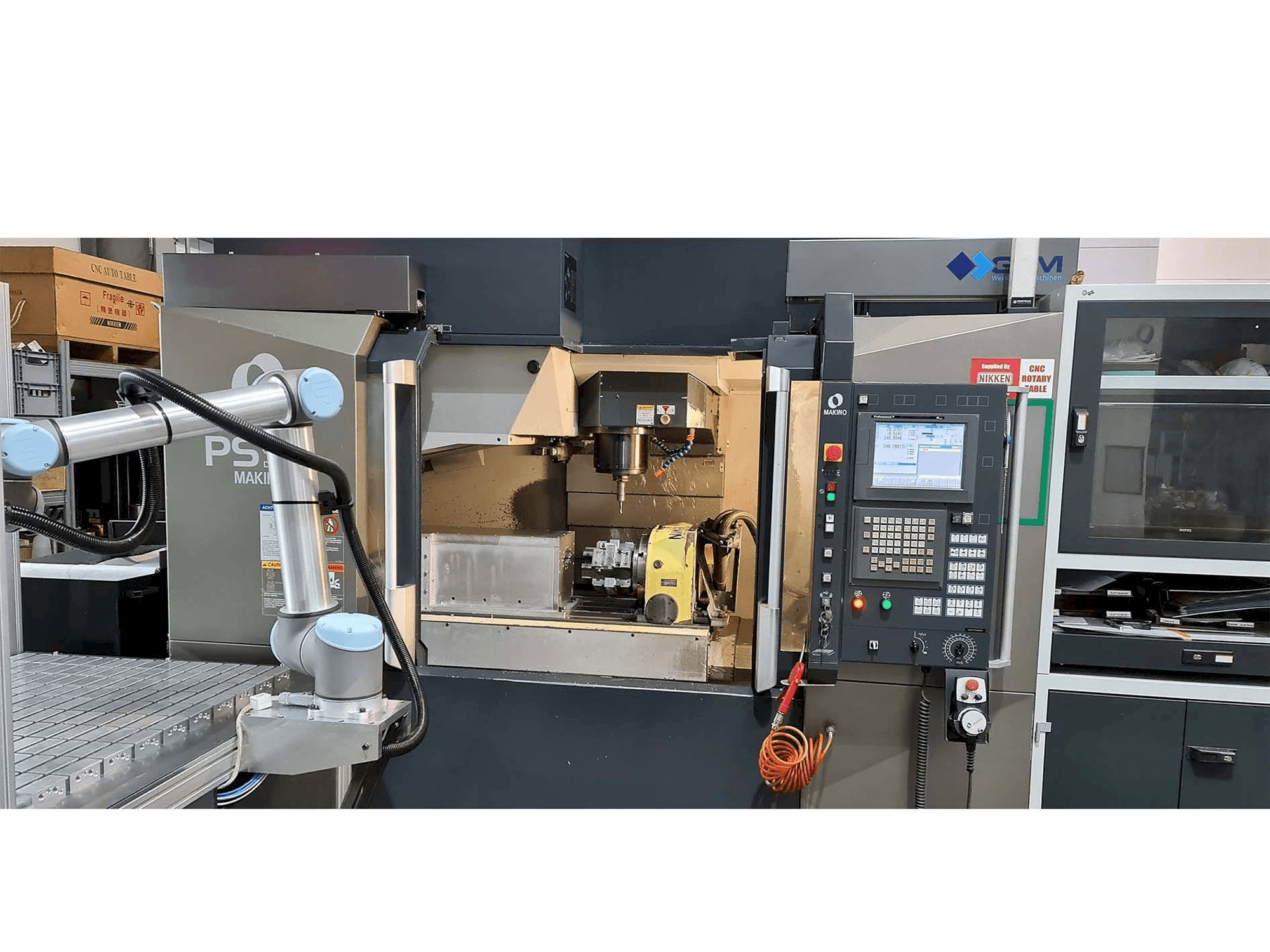

This Makino PS95 vertical machining center was manufactured in 2012 in Singapore. It includes a COBOT System von universal Robotics UR10. The machine has a total of 9750 running hours. It is operated through a Fanuc control unit. This 4 axis machine is equipped with a Gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions and has a spindle speed up to 14000 rpm.

Overview

brand: Makino
year: 2012
MODEL: PS95
production hours: 9750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Fanuc

Technical Information - Makino PS95

General Data

Measurements width: 2762 mm
Measurements depth: 2420 mm
Measurements height: 2479 mm
Machine weight: 6800 kg

Control Unit

Brand: Fanuc
Model: with Makino surface

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 920 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 460 mm

Table

Outer length: 1170 mm
Outer width: 510 mm
Distance between: 150 - 610 mm

Tools

Number of index: 30
Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 300 mm
Type of tool holder: HSK 63

Media

Main electronic connection: 3 x 400V / 50 Hz
Power consumption: 33 kVA
Chip conveyor: Yes

Additional equipment

- Software version COBOT Dec. 2021 V15.4
- COBOT System von universal Robotics UR10 is included, very easy to program
- We leave existing programs on the computer and the machine
- Table is flexible to use via simple laser inserts
- Laser floor scanner for 2 zones.
- Automatic doors via torque controlled servo motors

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 15bar ikz
- - Paper belt filter for kss
- - Central shearing system
- - Network connection
- - 4 axis nikken 260z / nc controlled / g68. 2 usable
- - Door automation servo controlled : manual and programmable
- - Air dryer upstream
- - 45 linear guides / very accurate and stable
- - Automation connection for cobot ur10
- - Double gripper schunk / one side with deflection for pressing on
Qualitative Machine Benefits:
- - 4 axis is equipped with a gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
