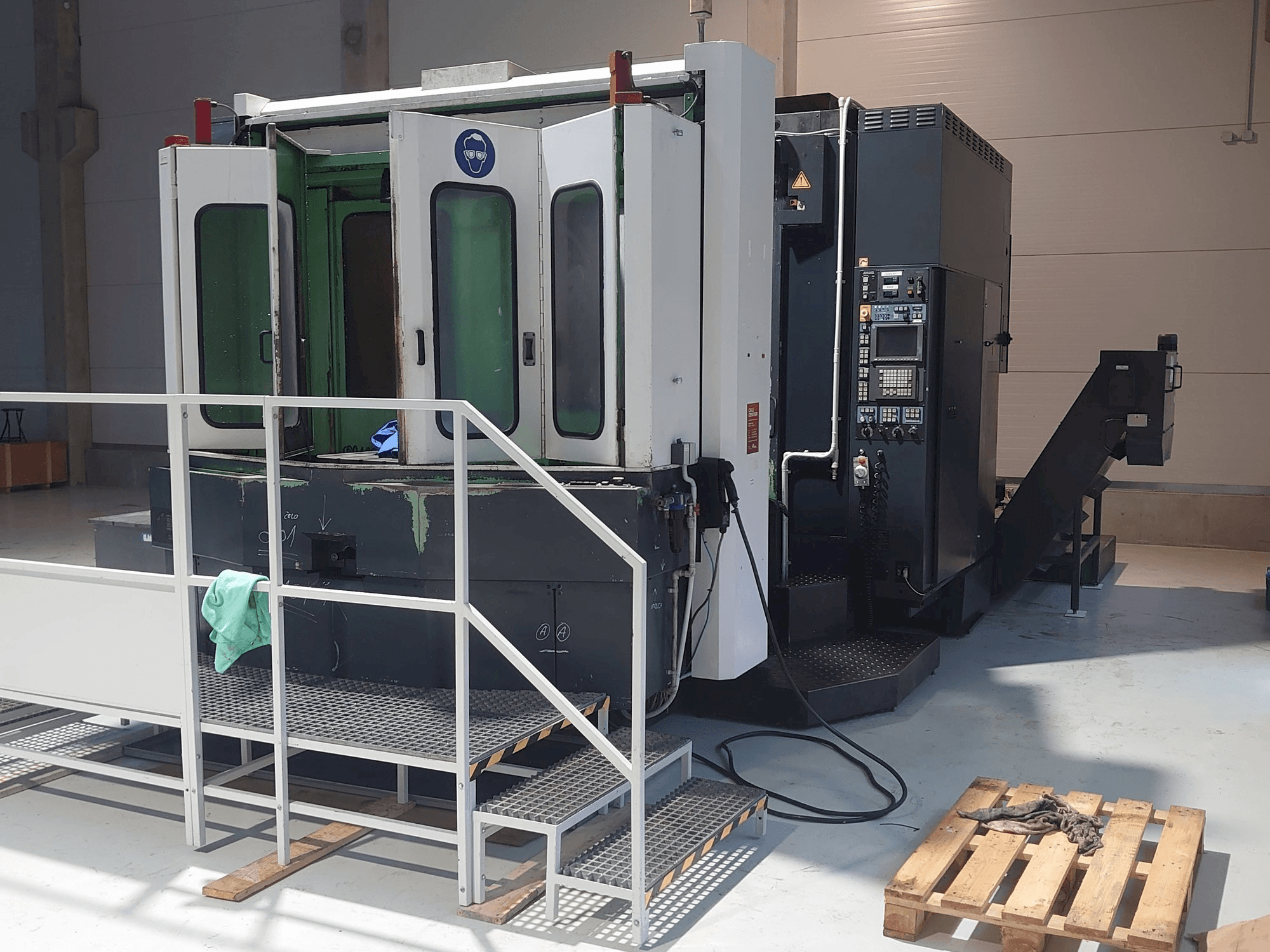

Makino A77 horizontal machining center

Show in original language

This Makino A77 horizontal machining center was manufactured in 1997 and refurbished in 2017, including a new spindle. This 4 axis machine has a spindle speed up to 10000 rpm. Includes 2-palette system. It is in very good working conditions.

Overview

brand: Makino
year: 1997
MODEL: A77
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Makino A77

General Data

Measurements width: 2890 mm
Measurements depth: 5680 mm
Measurements height: 3300 mm
Machine weight: 15000 kg

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 30/26 kW
Number of axis: 4

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 770 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 630 mm
Outer width: 630 mm

Tools

Slots in storage: 129

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2-palette system
Qualitative Machine Benefits:
- - Very good condition
- - Machine refurbished in 2017 (incl. New spindle)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
