Makino - a120nxAT-MIL-MAK-2017-00001

Name: Makino a120nx
Brand: Makino
SKU: AT-MIL-MAK-2017-00001
Price: 65279700 INR
Availability: InStock

Rs. 65,279,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

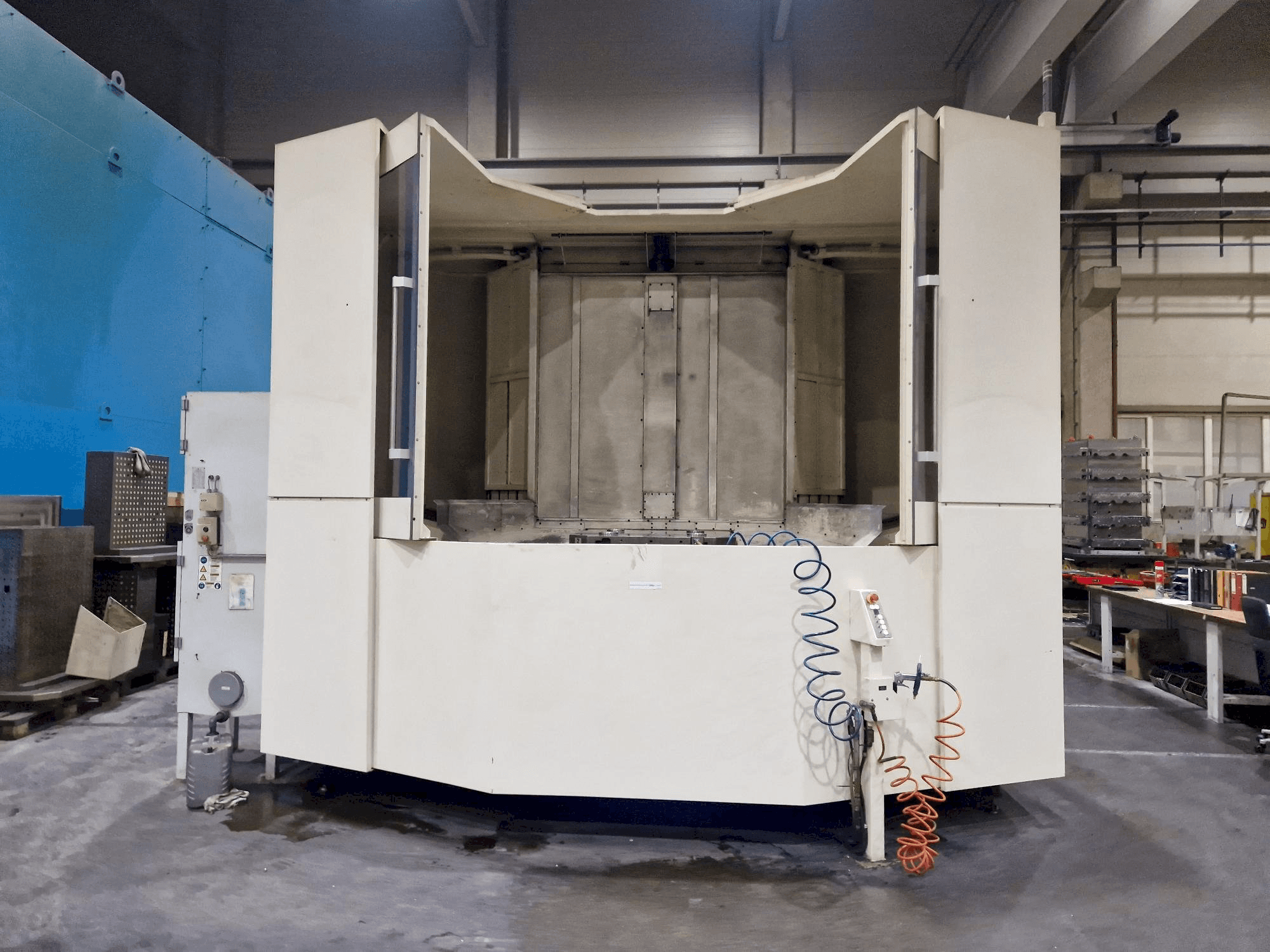

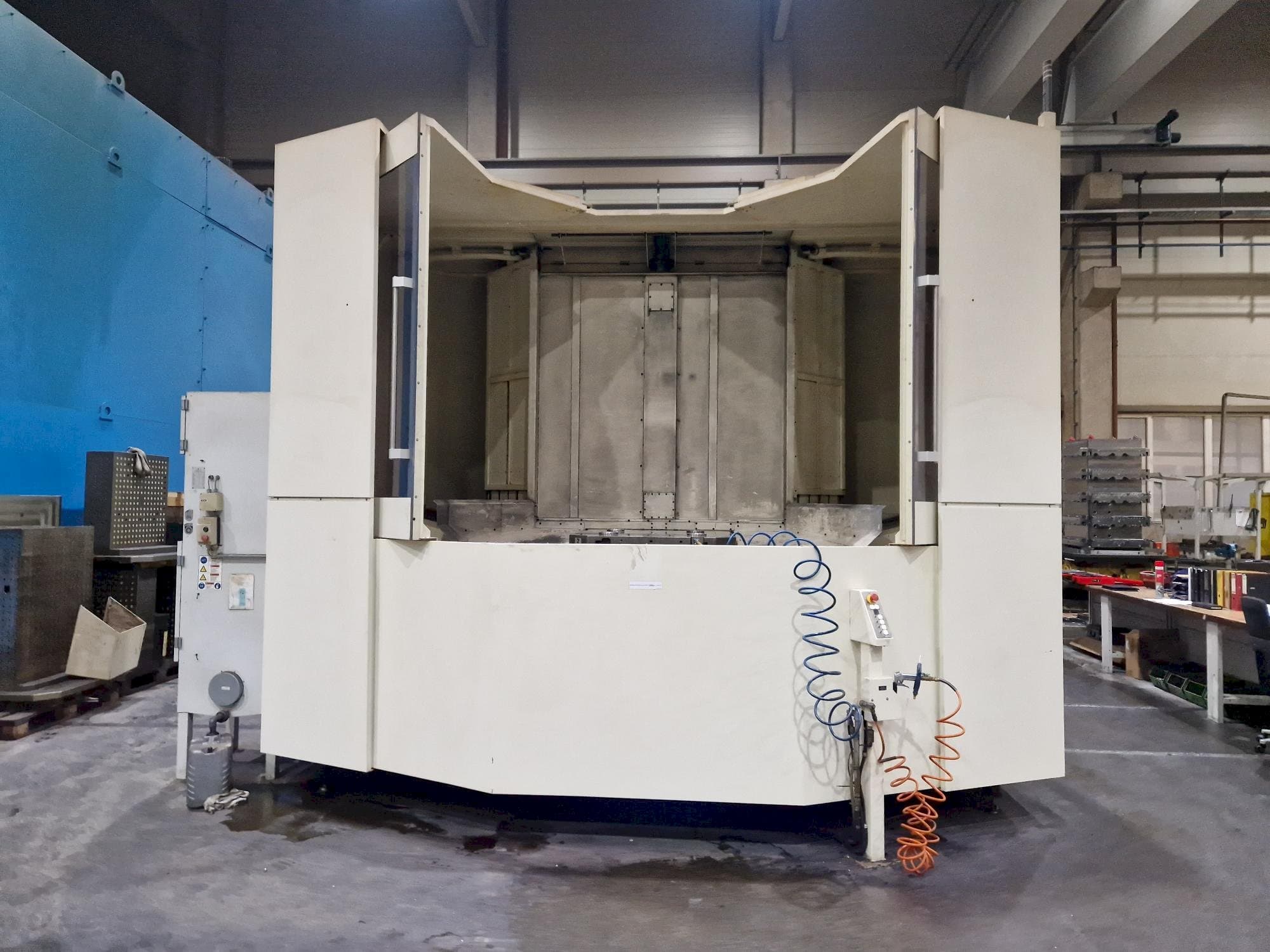

MAKINO a120nx Horizontal Machining center

Show in original language

This MAKINO a120nx Horizontal Machining center was manufactured in the year 2017. It is equipped with a Makino CNC Professional 6 control unit and has 3 axis. The machine has a spindle speed of 20-8000 rpm.

Overview

brand: Makino
year: 2017
MODEL: a120nx
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: MAKINO

Technical Information - Makino a120nx

General Data

Measurements width: 7500 mm
Measurements depth: 12200 mm
Machine weight: 45000 kg

Control Unit

Model: Professional 6
Brand: MAKINO

Main drive

Spindle speed range: 20-8000 1/MIN
Tool taper: HSK 100
Number of axis: 4

Movement

X-AXIS Movement: 1900 mm
Y-AXIS Movement: 1600 mm
Z-AXIS Movement: 1700 mm

Tools

Slots in storage: 204
Max weight: 35 kg
Max tool diameter: 102 / 356 mm
Max tool length: max 900 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: chain magazine 204 tools
- - Max. Spindle taper hsk 100
- - Workpiece dimensions ø2100 x 1800 mm
- - Pallet size 1250 x 1000 mm

Extra information

- machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Tech.pdf
