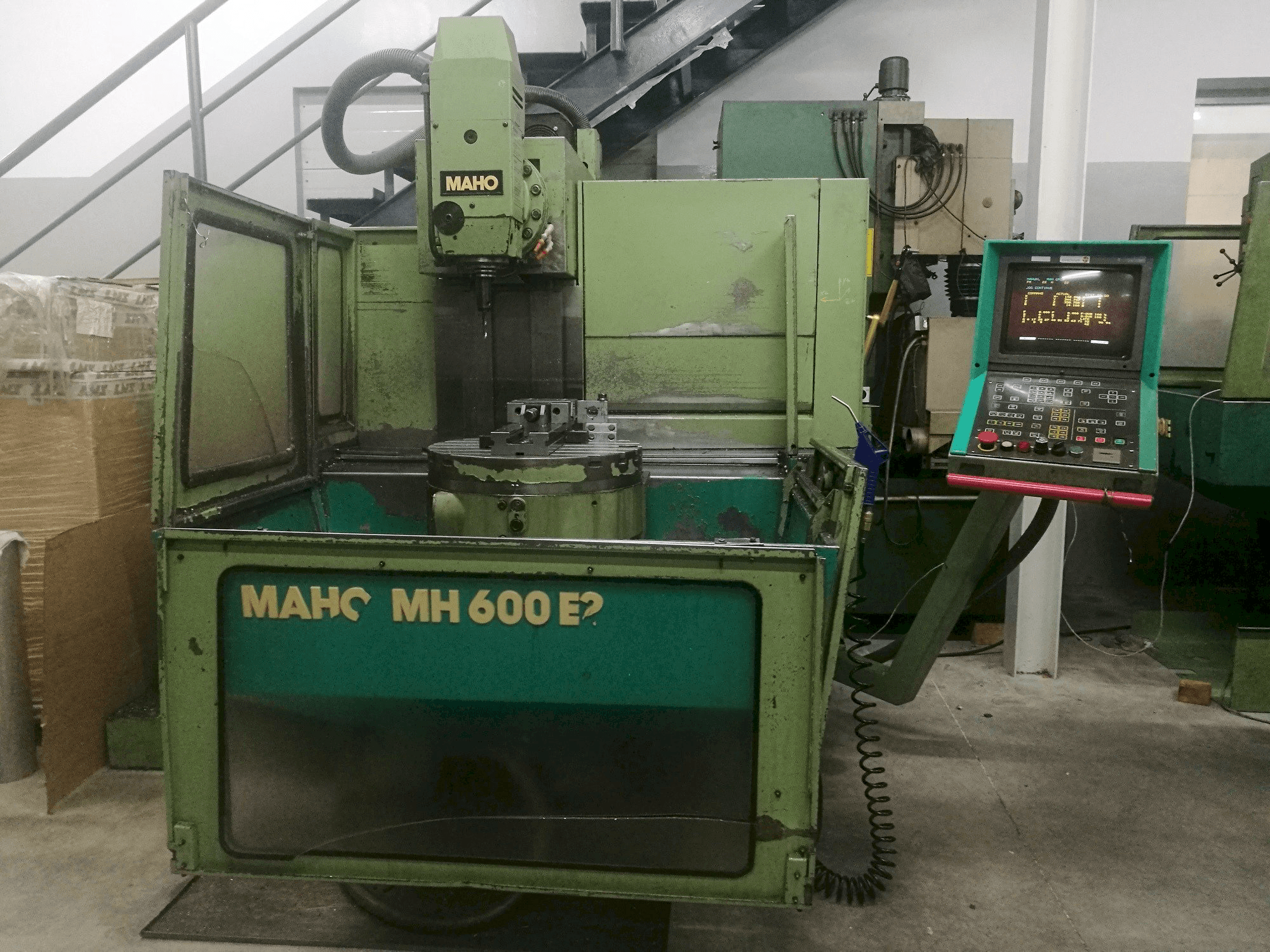

This Maho MH 600 E2 Milling Machine was produced in 1989 in Germany and has been working for 40000 hours. Operated through a Philips 432 Control unit, this machine has a spindle speed range up to 4000 rpm. It incorporates a rotary table with a diameter of 500 mm with 360° of rotation. It stands out for being able to work both in vertical and horizontal.
Overview
- brand: MAHO
- year: 1989
- MODEL: MH 600 E2
- production hours: 40000
- application type: Milling
- Location: Croatia
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: Philips
Technical Information - MAHO MH 600 E2
General Data
- Measurements width: 2400 mm
- Measurements depth: 2500 mm
- Measurements height: 2100 mm
- Machine weight: 3000 kg
Control Unit
- Brand: Philips
- Model: 432
- CNC main language: English
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 rpm 1/MIN
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
- B-AXIS Movement: 360° MM
Workpiece
- Workpiece weight: 300 kg
Table
- Number of tslots: 7
- Distance between: 65 mm
Tools
- Slots in storage: 20
- Max weight: 8 kg
- Max tool length: 250 mm
- Type of tool holder: SK40
Media
- Main electronic connection: 380V / 50Hz
- Power consumption: 16 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
