Maho MH 1000 C Milling Machine

Show in original language

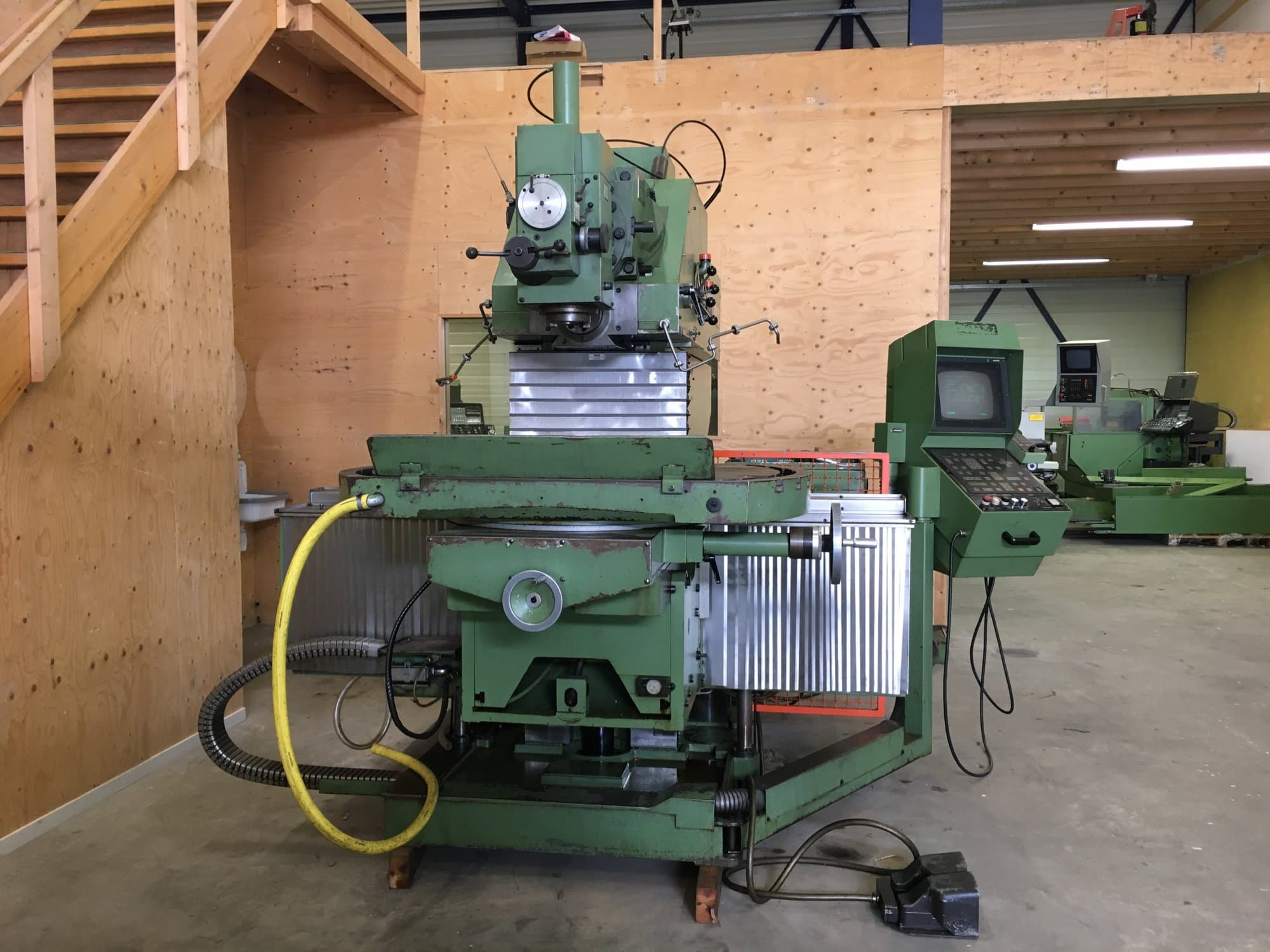

This Maho MH 1000 C Milling Machine was manufactured in 1986 in Germany and counts a total of 33900 production hours. With a PHILIPS 432 Control unit, this well maintained and regularly inspected machine stands out due to its big and strong working table and has mainly worked with different types of metal during the past.

Overview

brand: MAHO
year: 1986
MODEL: MH 1000 C
production hours: 33900
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAHO MH 1000 C

General Data

Measurements width: 4620 mm
Measurements depth: 3710 mm
Measurements height: 2650 mm
Machine weight: 5900 kg

Control Unit

Model: 432

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece drm: 160 mm
Workpiece x: 850 mm
Workpiece y: 498 mm
Workpiece z: 600 mm
Workpiece weight: 800 kg

Table

Outer length: 1150 mm
Outer width: 800 mm

Tools

Max weight: 15 kg
Max tool diameter: 40 mm
Max tool length: 125 mm

Media

Main electronic connection: 380 V
Power consumption: 62.7 kVA
Internal cooling: Yes

Additional equipment

- 8x Tool holder
- 6x Tool parts
- 2nd Working table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
