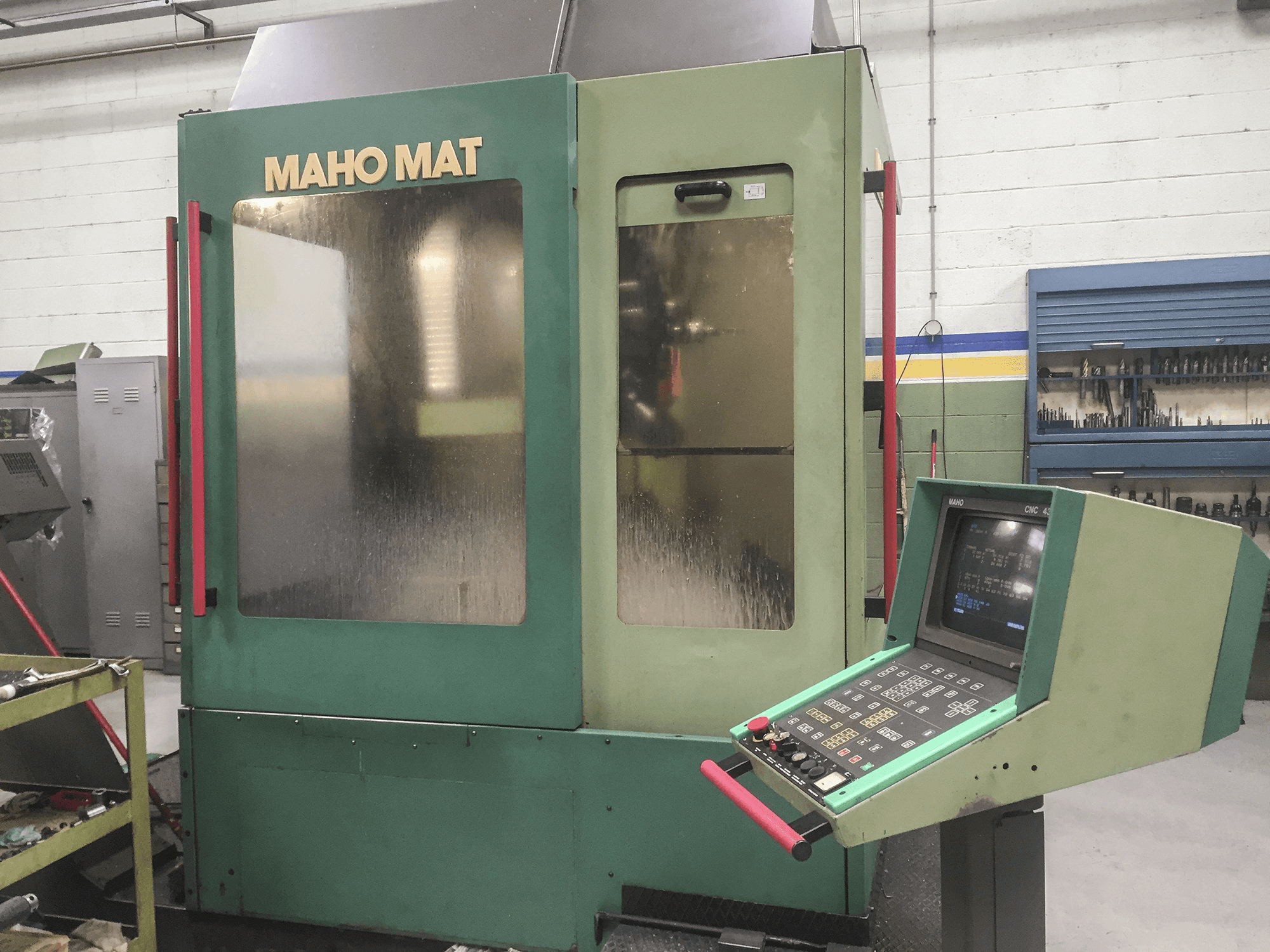

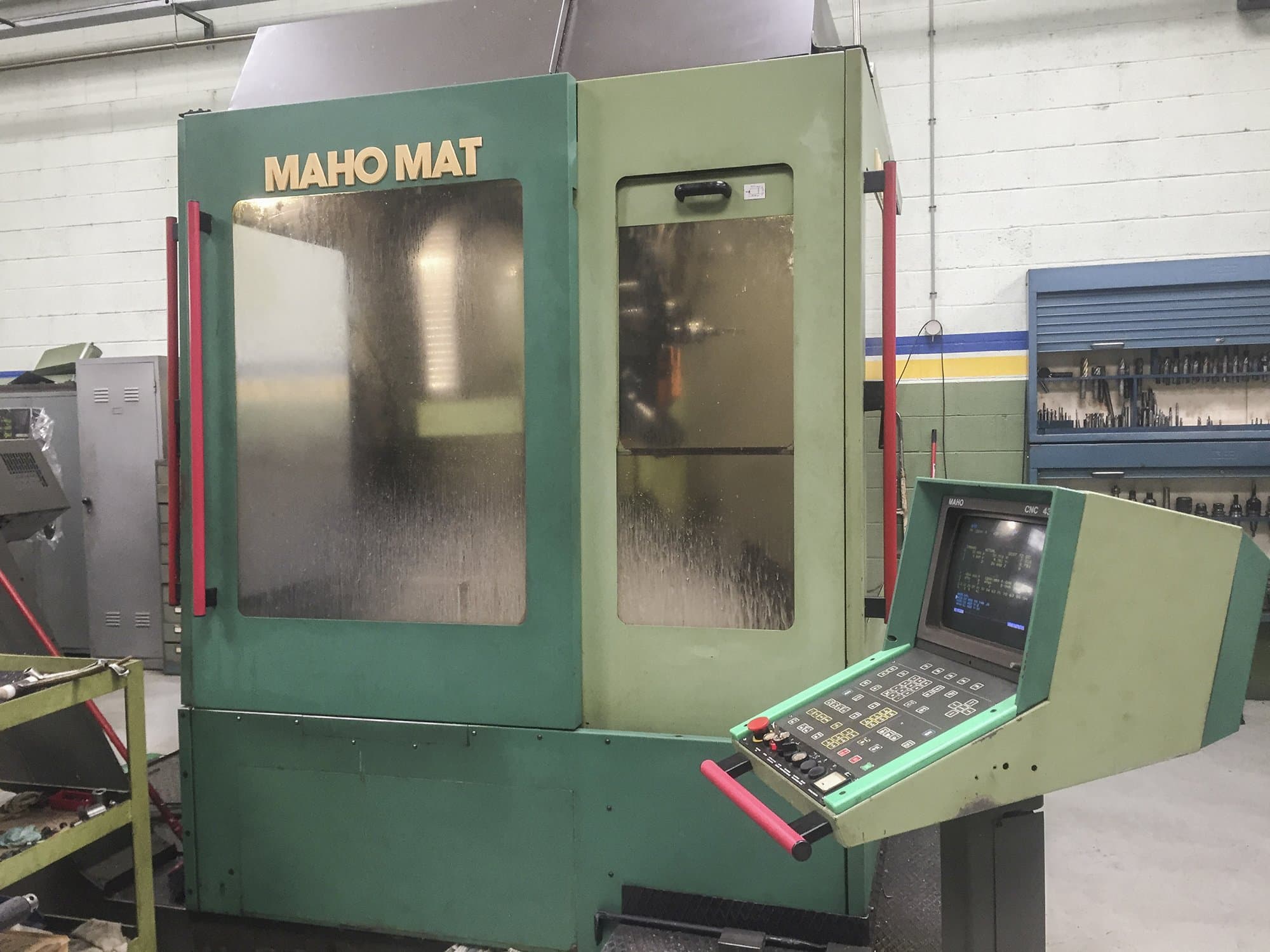

Maho Mahomat 650 Vertical Machining Center

Show in original language

This Maho Mahomat 650 Vertical Machining Center was made in Germany in 1990 and has an estimated production time of 90000 working hours. This machine is equipped with a Maho CNC 432 Control unit.

Overview

brand: MAHO
year: 1990
MODEL: Mahomat 650
production hours: 90000
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAHO Mahomat 650

General Data

Measurements width: 3600 mm
Measurements depth: 2400 mm
Measurements height: 2700 mm
Machine weight: 5500 kg

Control Unit

Model: CNC 432
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 20-6000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 900 mm
Outer width: 600 mm

Tools

Slots in storage: 24+1

Media

Main electronic connection: 380 V
Power consumption: 34 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
