MAHO MH 600 E Universal Machining center

Show in original language

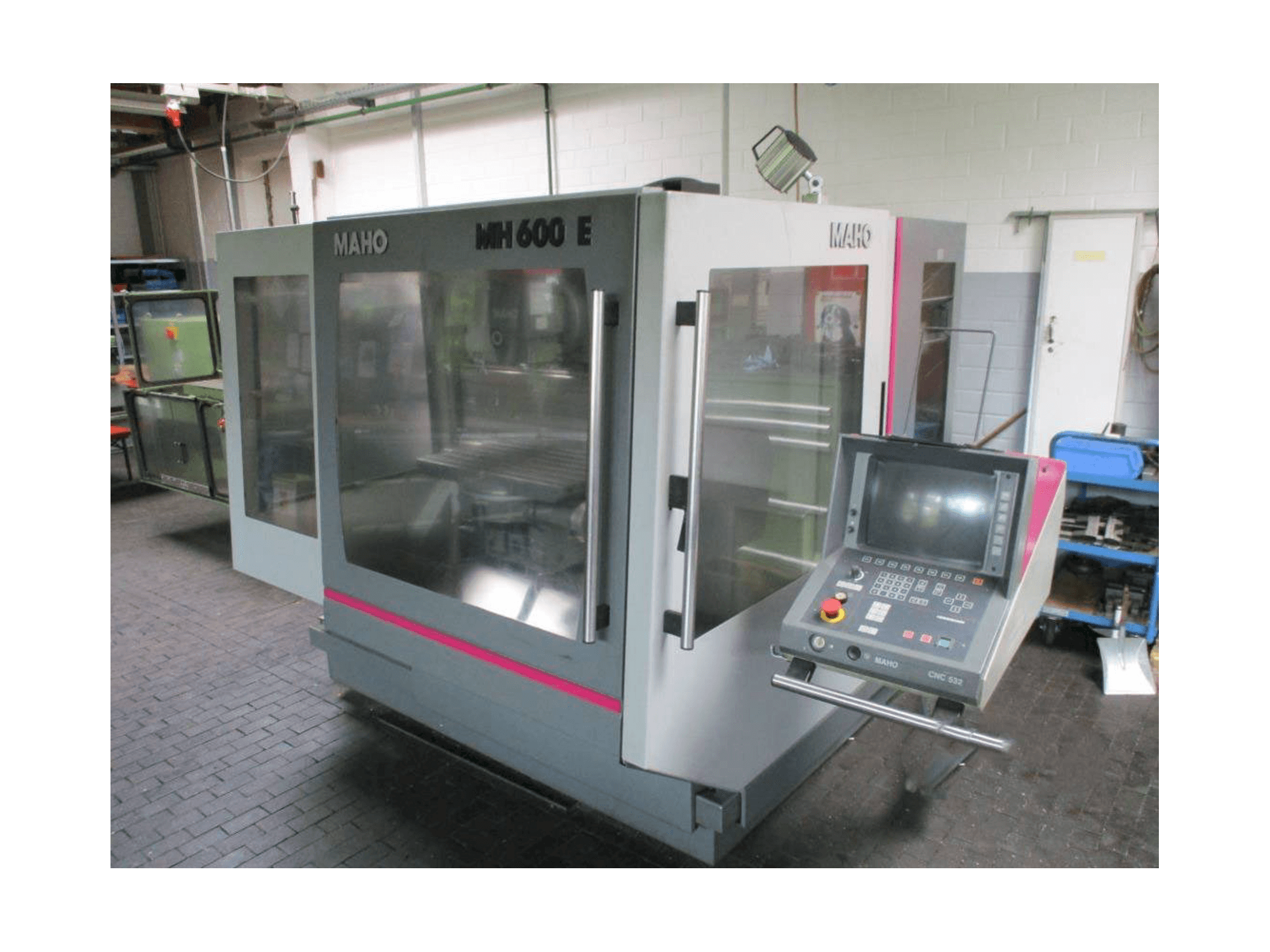

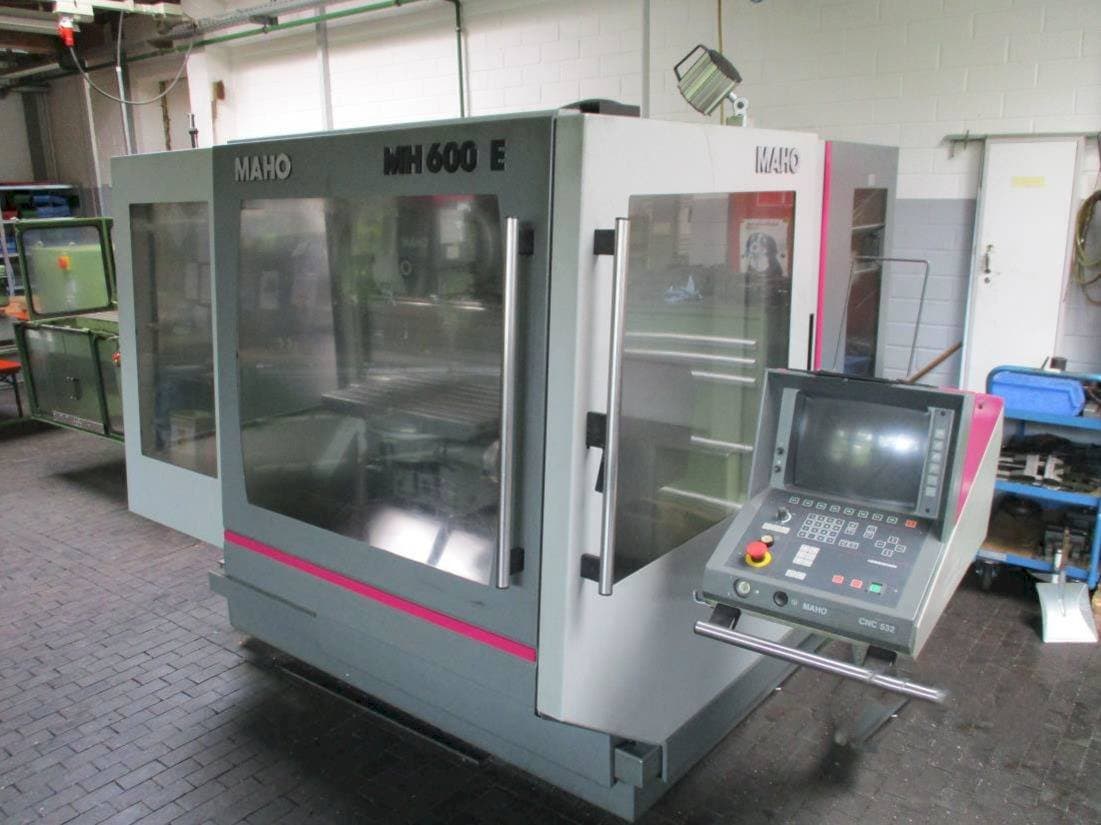

This MAHO MH 600 E Universal Machining center was manufactured in the year 1993 in Germany and has 25856 production hours. It is equipped with a Philipd CNC 5000 control unit. The machine has a spindle speed of 20-5000 rpm. See original tech specs attached as PDF (German) for more details.

Overview

brand: MAHO
year: 1993
MODEL: MAHO 600 E
production hours: 25856
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAHO MAHO 600 E

General Data

Measurements width: 3608 mm
Measurements depth: 3451 mm
Measurements height: 1909 mm
Machine weight: ca. 2820 kg

Control Unit

Model: CNC 5000

Main drive

Spindle speed range: 20 - 5000 1/MIN
Tool taper: ISO 40

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 740 mm
Outer width: 445 mm

Additional equipment

- 1x drill chuck SK 40
- 1x Milling arbor SK40x27x35
- 1x SK 40 surface chuck short Ø 6
- 1x SK 40 surface chuck short Ø 8
- 1x SK 40 surface chuck short Ø 10
- 1x SK 40 surface chuck short Ø 20
- 1x SK 40 surface chuck long Ø 6
- 1x SK 40 surface chuck long Ø 8
- 1x SK 40 surface chuck long Ø 10

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse speed: 6 m/min
- - Tool changer: 20-fold disc magazine
- - 1x drill chuck sk 40
- - 1x milling arbour sk40x27x35
- - 1x sk 40 surface chuck short Ø 6
- - Swivelling ± 30°; rotatable 360
- - Feed rates programmable:1 - 600 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

MAHO MH 600 E (1993) - Tech Specs (GERMAN).pdf
