- Müller PZEWL 160 R/HK injection moulding machine
Show in original language

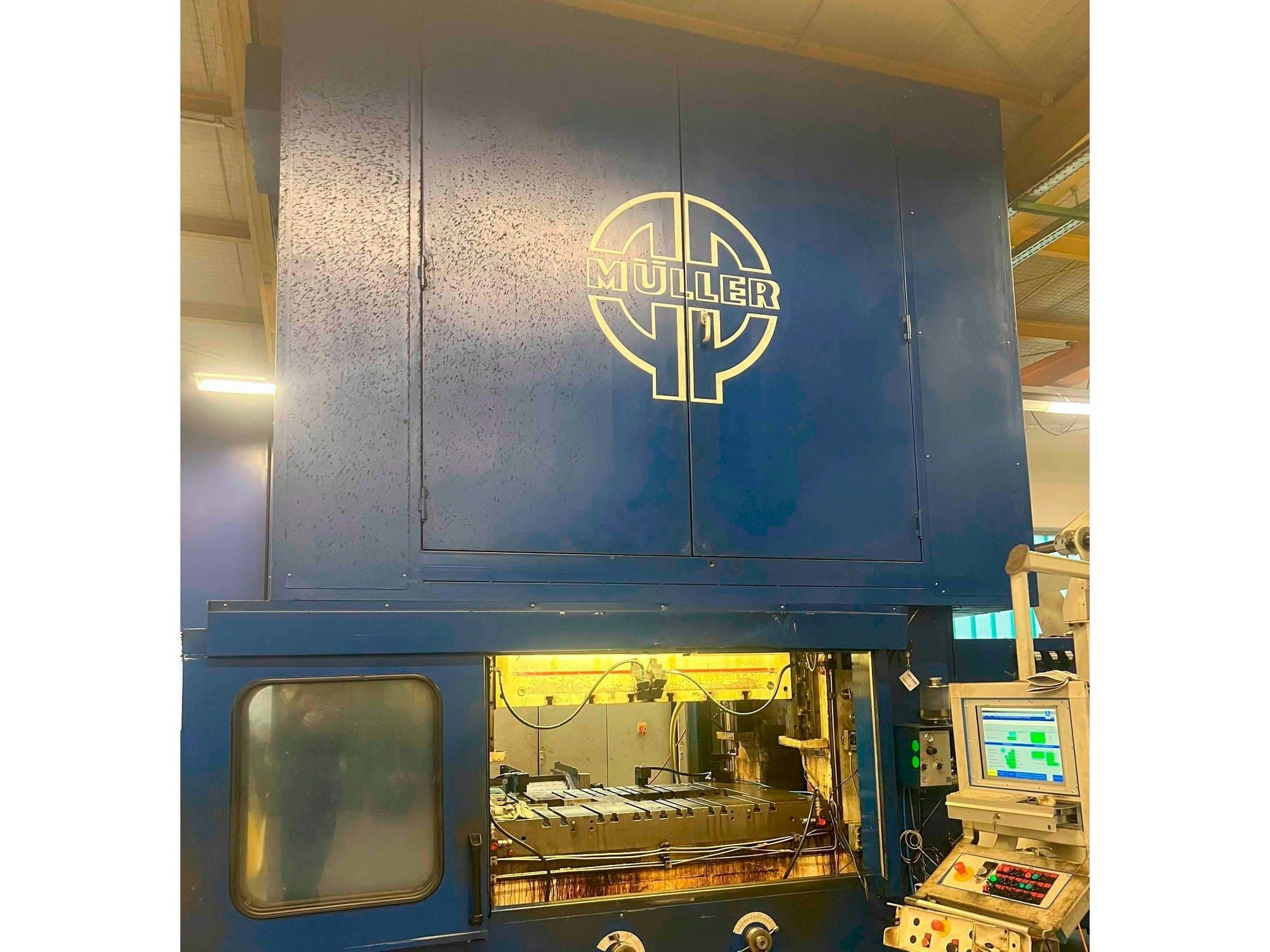

This Müller PZEWL 160 R/HK injection moulding machine was made in the year 2001. The machine has a clamping force of 1600 kN.
Overview
- brand: Müller
- year: 2001
- MODEL: PZEWL 160 R/HK
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Stamping Machine
- availability: Sold
Technical Information - Müller PZEWL 160 R/HK
General Data
- Measurements width: 4700 mm
- Measurements depth: 3410 mm
- Measurements height: 2640 mm
- Machine weight: 26000 kg
Table
- Outer length: 1700 mm
- Outer width: 1050 mm
Clamping unit
- Clamping force: 1600 kn
Media
- Main electronic connection: 400 V
Additional Information
- Technical Machine Benefits:
- - Ram strokes: 40-120 1/min
- - Ram adjustable: 100 mm
- - Stroke adjustable: 8-160 mm
- - Motor power: 22 kw
- - Maximum pressure at 6. 7 mm before ut
- - Working capacity at 120 strokes / min continuous run approx: 9350 nm
- - Working capacity at 40 strokes / min continuous run approx: 10700 nm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
