Lodi RTR S800 CNC Grinding Machine

Show in original language

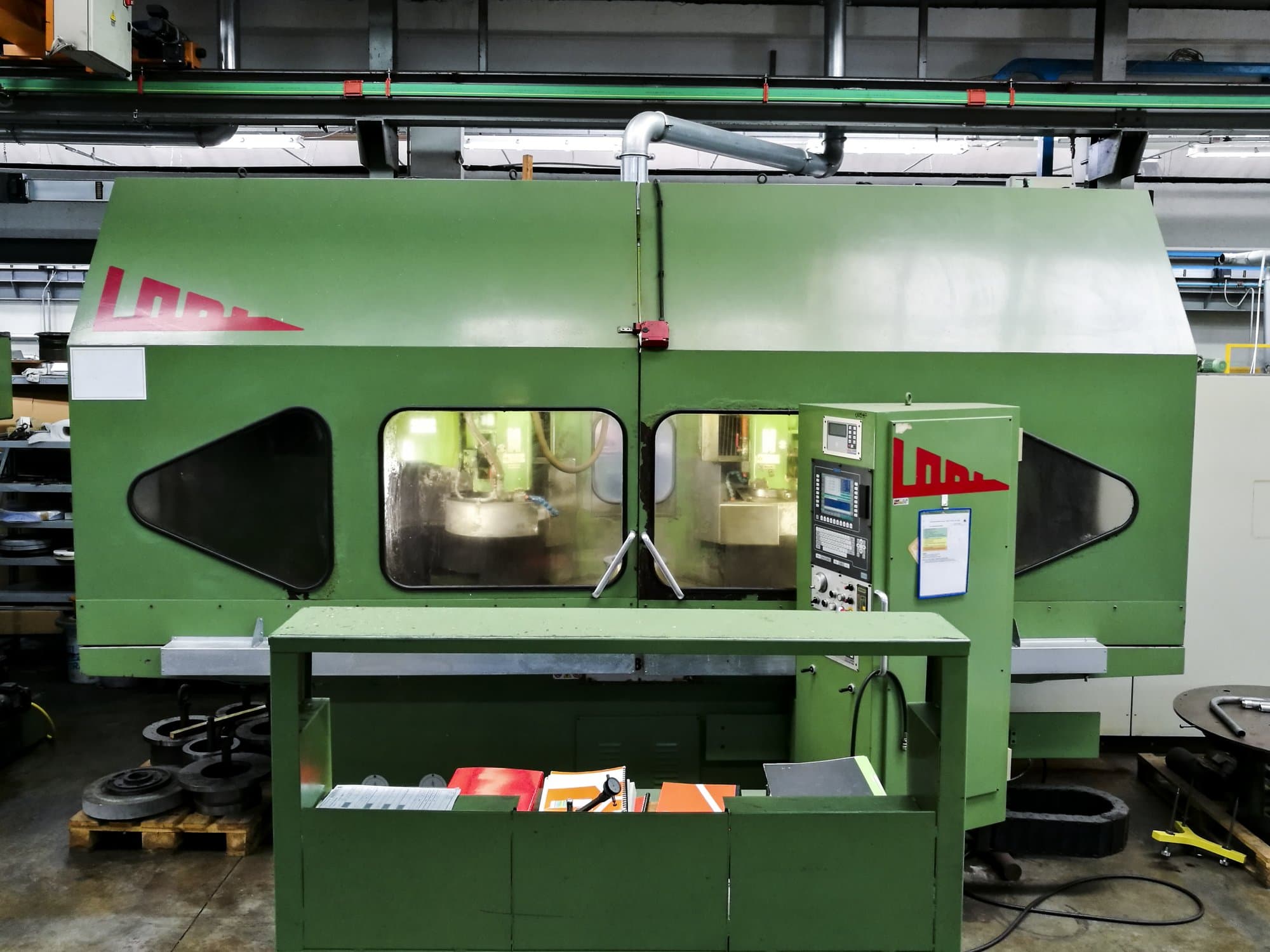

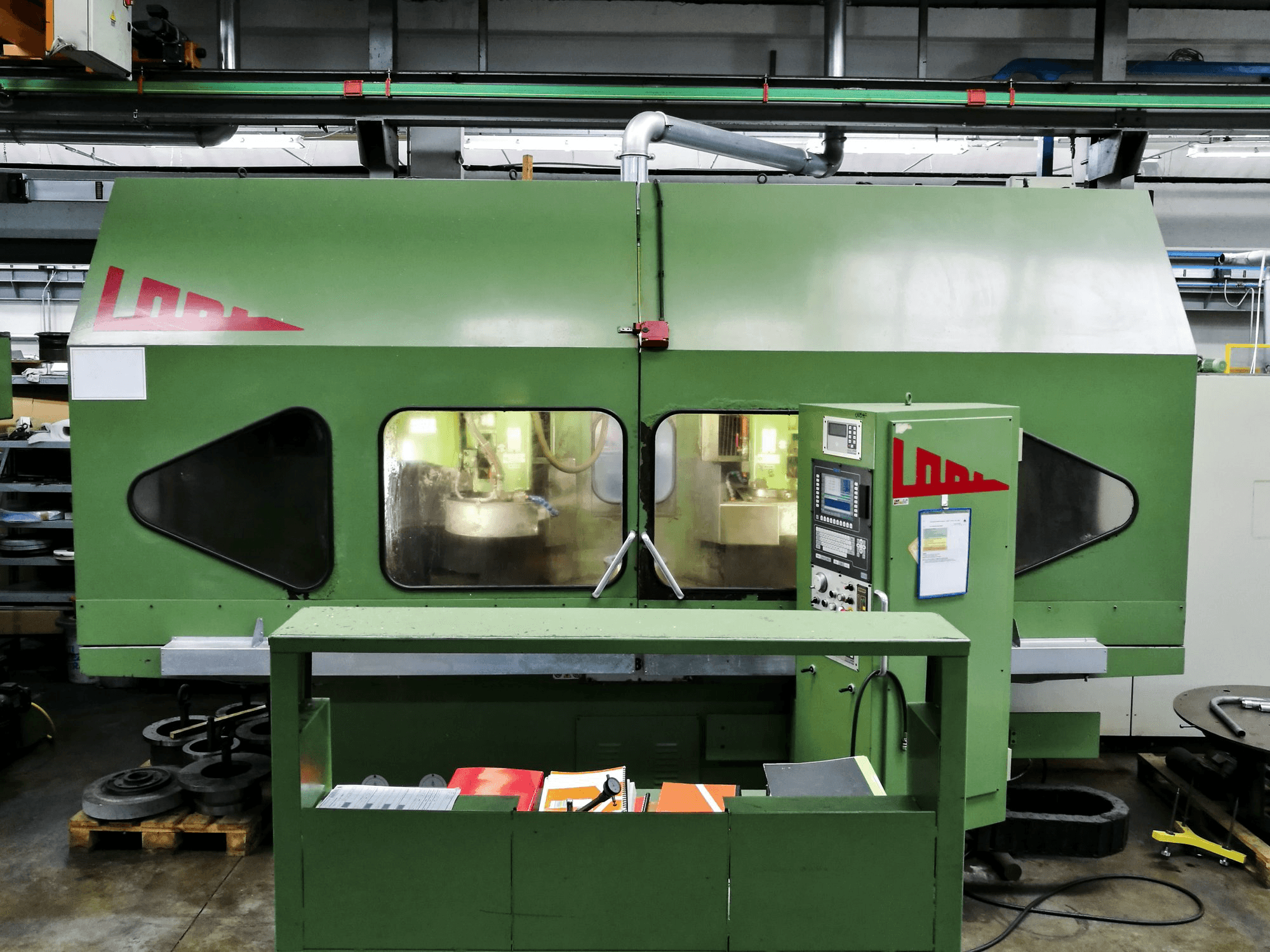

This Lodi RTR S800 CNC Grinding Machine was built in Italy in 2000. It is equipped with a Tecnel T2010 Control unit and two grinding wheels for a fluent working process. This equipment comes with an incorporated, wheel-shaping diamond tool for special piece production. In the past, this Lodi Grinding machine has been working mostly on steel parts for textile industry machinery.

Overview

brand: Lodi
year: 2000
MODEL: RTR S800 CNC
application type: Grinding
Location: Italy
machine type: Surface Grinding Machine
availability: Sold

Technical Information - Lodi RTR S800 CNC

General Data

Measurements width: 6300 mm
Measurements depth: 2300 mm
Measurements height: 2950 mm
Machine weight: 13500 kg

Control Unit

Model: T2010

Main drive

Number of spindles: 2
Spindle speed range: 2100 1/min
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 4000 mm
X-AXIS Rapid traverse: 3 m/min
Y-AXIS Movement: 5000 mm
Y-AXIS Rapid traverse: 5 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 0.5 m/min
W-Axis Movement: 1000 mm
W-Axis Rapid traverse: 3 m/min

Workpiece

Workpiece drm: 1000 mm

Table

Outer length: 800 mm

Tools

Max tool diameter: 500 mm
Max tool length: 203 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 55 kVA
Lubrication tank: 25 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
