- Litz LU 620 Vertical Machining Center

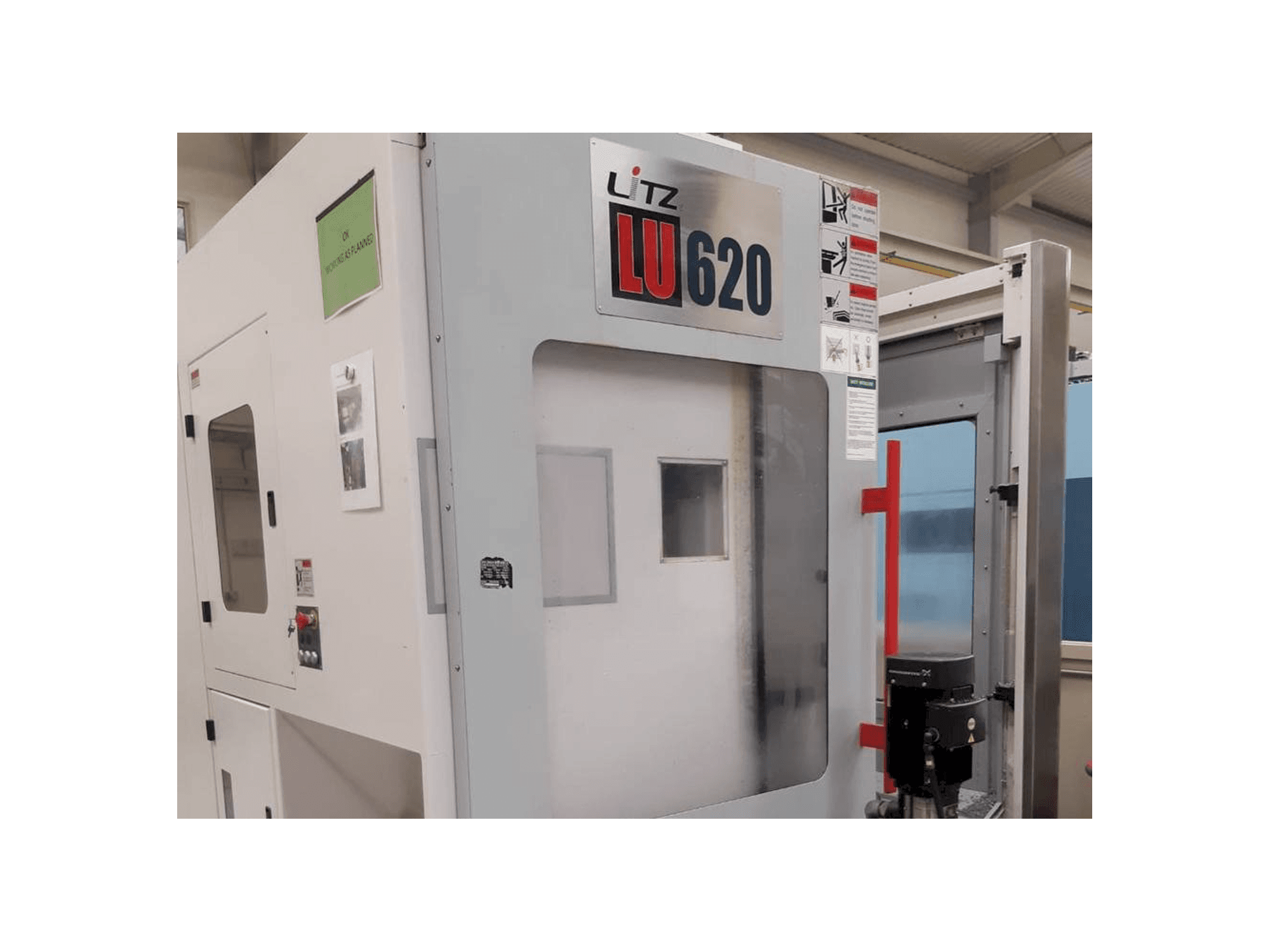

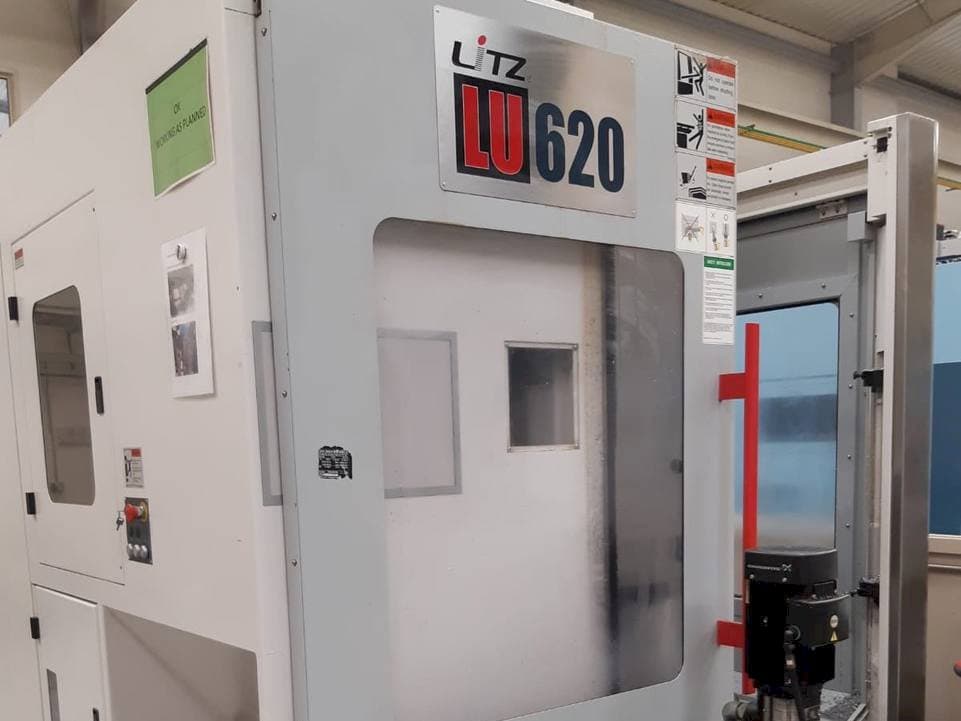

This Litz LU 620 Vertical Machining Center was manufactured in 2013. It has been on for 51473 hours, of which 7334 are spindle hours. This 5 axis machine can work with a spindle speed up to 12000 rpm. This machine stands out for its perfectly good conditions.
Overview
- brand: Litz
- year: 2013
- MODEL: LU 620
- production hours: 51473
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Litz LU 620
General Data
- Measurements width: 2260 mm
- Measurements depth: 2590 mm
- Measurements height: 3060 mm
- Machine weight: 8800 kg
Control Unit
- Model: iTNC 530
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 18/21 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 620 mm
- X-AXIS Working Feed: 36 m/min
- Y-AXIS Movement: 520 mm
- Y-AXIS Working Feed: 36 m/min
- Z-AXIS Movement: 460 mm
- Z-AXIS Working Feed: 36 m/min
Workpiece
- Workpiece weight: 300 kg
Media
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Through spindle coolant
- - Table size Ø 650 mm
- - B axis tilting range: - 50° / + 110°
- - Spindle taper cat 40
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
