LAGUN MC 5 Milling Machine

Show in original language

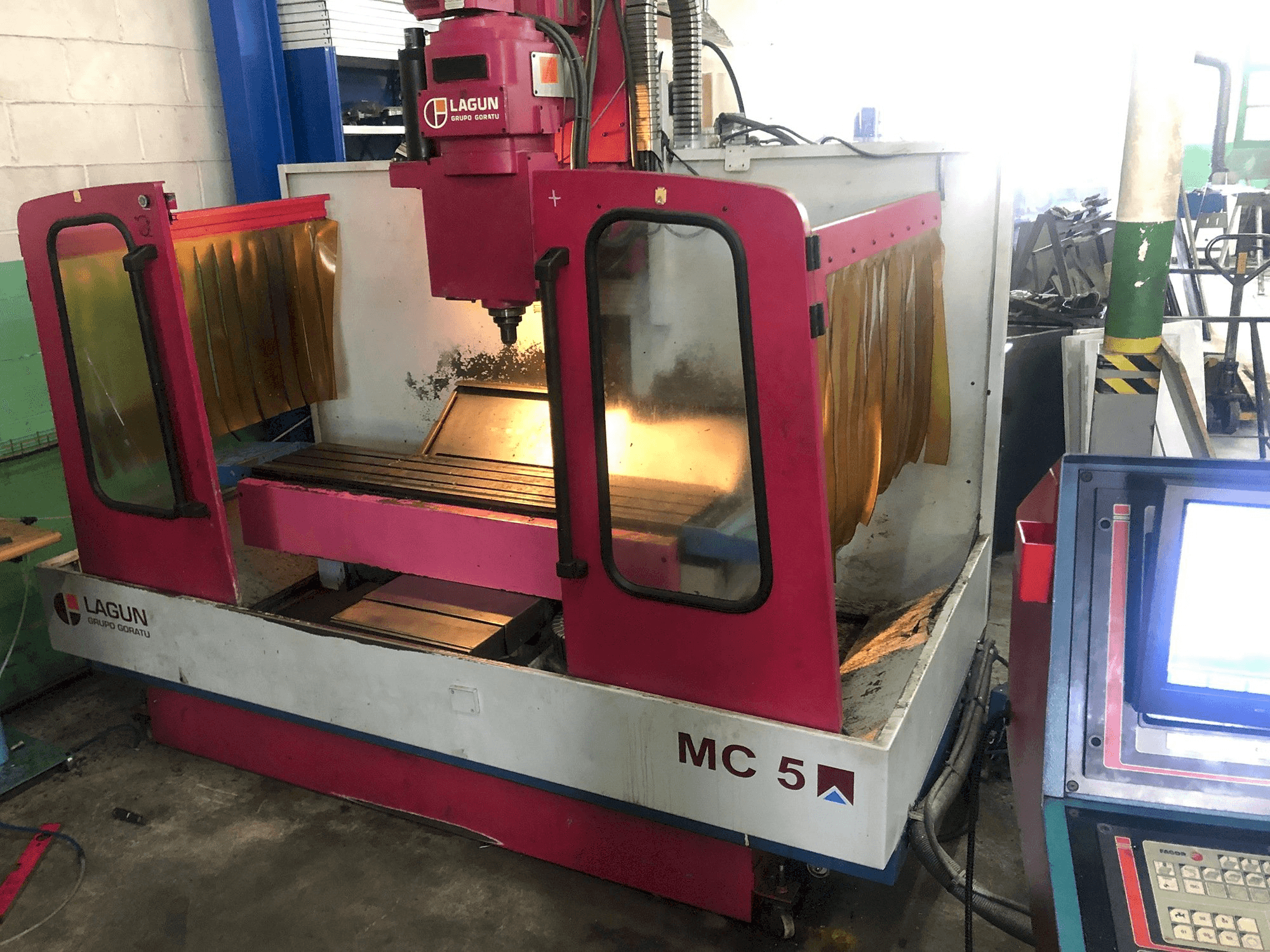

This LAGUN MC 5 Milling Machine was made in 1998 in Spain. Operated through a Fagor 8050 Control unit, this machine incorporates a manual spindle turning and is able to perform with a spindle speed range of 60-4000 rpm. Additional equipment such as a pneumatic tool clamping and a 4th axis are included.

Overview

brand: LAGUN
year: 1998
MODEL: MC 5
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - LAGUN MC 5

General Data

Measurements width: 2670 mm
Measurements depth: 3275 mm
Measurements height: 2117 mm
Machine weight: 4450 kg

Control Unit

Model: 8050
Brand: FAGOR

Main drive

Spindle speed range: 60-4000 rpm 1/MIN
Spindle motor power: 7.5 kW

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 540 mm
U-Axis Movement: 250 mm
V-AXIS Movement: 150 mm

Table

Outer length: 1525 mm
Outer width: 325 mm

Tools

Type of tool holder: ISO 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
