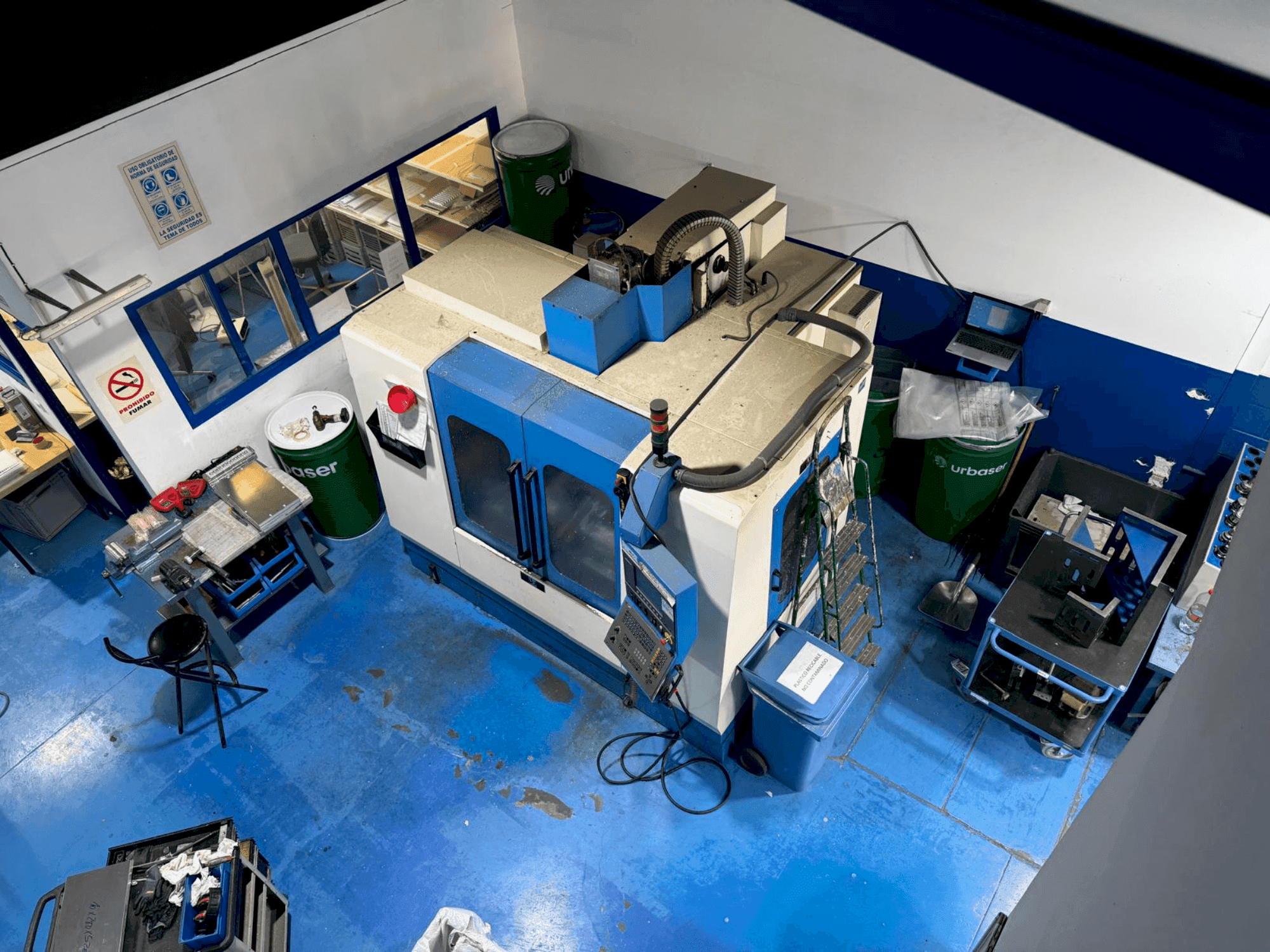

This 3-axis LAGUN GVC 1000 vertical machining center was manufactured in 2001. It features a HEIDENHAIN 410 control, a table surface of 1200 x 500 mm, and a maximum table load of 750 kg. The spindle operates at 60 - 6000 r.p.m. with a main motor power of 7.5/9 kW. If you are looking to get high-quality milling capabilities, consider the LAGUN GVC 1000 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: LAGUN
- year: 2001
- MODEL: GVC 1000
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - LAGUN GVC 1000
General Data
- Measurements width: 2930 mm
- Measurements depth: 2240 mm
- Measurements height: 2750 mm
- Machine weight: 6300 kg
Control Unit
- Brand: HEIDENHAIN
- Model: 410
Main drive
- Spindle speed range: 60 - 6000 rpm 1/MIN
- Spindle motor power: 7.5 / 9 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 510 ± 111.5 mm
Table
- TSlots size: 20 x 135 mm
- Number of tslots: 3
- Table load: 750 kg
Tools
- Number of index: 18
- Max weight: 90 kg
- Max tool diameter: 85 mm / 135 mm
- Max tool length: 250 mm
Additional Information
- Technical Machine Benefits:
- - Table surface: 1200 x 500 mm
- - Table height from floor: 910 mm
- - Min. /max. Distance from spindle to table: 100 ~ 610 (721. 5) mm
- - Distance from table center to column: 260 ~ 760 mm
- - Distance from axis center to column: 510 mm
- - Tool change time: 8 seconds
- - Required air pressure: 6-7 kg/cm²
- - Optional spindle speed range: 100 - 10000 rpm
- - Total installed power: 17 kw
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
